Quick answer: A stadium door hinge is a heavy-duty, commercial-grade piece of hardware engineered to withstand extreme high-traffic wear, massive door weight, and stringent security requirements. The best options for large venues include continuous geared hinges, heavyweight ball bearing butt hinges, pivot hinges, and hydraulic closer hinges.
Every time fans flood into a sports arena or concert venue, they interact with hardware that must perform flawlessly under immense pressure. Venue operators rely heavily on these components to maintain crowd flow, ensure security, and meet strict fire safety regulations. Standard commercial hardware simply cannot survive the abuse of millions of opening cycles combined with severe weather exposure and heavy impacts.
This is where specialized commercial door hardware steps in. A high-quality stadium door hinge serves as the backbone of venue security and accessibility. These components must hold up massive metal or glass doors that often weigh hundreds of pounds, all while allowing smooth, effortless operation for guests and staff.
Selecting the right hardware system prevents sagging doors, eliminates security vulnerabilities, and reduces costly emergency maintenance. This guide breaks down the primary types of hinges used in large-scale venues and provides actionable advice on how to choose the exact components needed for every entryway.
Stadium architectures feature diverse entry points, ranging from massive main gates to restricted locker room corridors. Each opening requires a specific hinge engineered for its unique traffic volume and weight demands.
Continuous geared hinges run the entire length of the door frame. Facility managers highly recommend these hinges for main entrance stadium gates and heavily used concourse doors.
Because they distribute the weight evenly from top to bottom, continuous geared hinges prevent the door from sagging or delaminating over millions of opening cycles. Choose continuous geared hinges if long-term durability under extreme high-traffic wear matters more than initial installation time. They effectively eliminate the concentrated stress points found in traditional hinge setups.

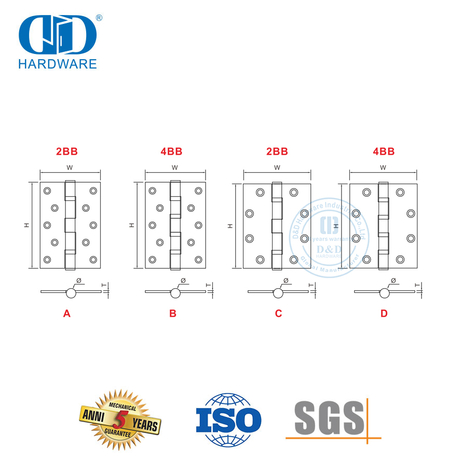

Standard stadium interior doors, luxury suite entries, and equipment rooms rely heavily on 5-knuckle, 4-ball-bearing hinges. The built-in ball bearings reduce friction between the hinge knuckles, allowing heavy doors to open smoothly without squeaking or grinding.
According to commercial door hardware manufacturer [D&D Hardware, 2026], these hinges are essential for high-frequency interior doors that require ANSI and UL certifications. Use heavyweight ball bearing butt hinges for secondary corridors where continuous hinges are visually or structurally unnecessary, but commercial-grade reliability remains a strict requirement.
Massive center-hung or offset pivot sets are often used for oversized stadium entryways and large architectural glass doors. These pivot hinges handle immense door weight by transferring the vertical load directly into the floor structure instead of pulling on the side frame.
Choose pivot hinges if you are installing exceptionally tall or wide doors that exceed the weight limits of standard side-mounted hardware. They provide a sleek, minimalist appearance while offering the structural integrity needed for grand entrances.
Hydraulic closer hinges combine the pivoting action of a hinge with the self-closing mechanism of a door closer in one compact unit. These are highly popular in stadium bathrooms, VIP lounges, or restricted locker room paths.
Install hydraulic closer hinges if space limitations prevent the use of bulky overhead closers, or if you need to ensure a door automatically latches behind athletes and staff for privacy and security.
Safety remains the highest priority in any commercial venue. During an evacuation, an emergency door hinge must operate perfectly under the pressure of a panicking crowd. Failing hardware can trap occupants and lead to catastrophic outcomes.
An Emergency Exit Door hinge must comply with rigorous fire safety standards. According to [D&D Hardware, 2026], which boasts 18 years of experience manufacturing door hardware, components used on fire-rated doors must carry CE, UL, ANSI, and BHMA certifications.
When choosing an emergency door hinge, prioritize heavy-duty ball bearing or continuous designs made of stainless steel. Stainless steel resists high temperatures during a fire, ensuring the door remains firmly attached to the frame while still allowing panic bars to easily push the door open. Pair these hinges with certified panic exit devices to create a fully integrated, fail-safe evacuation route.
Building a safe, efficient, and durable stadium requires looking beyond individual components and focusing on complete hardware systems. Stadium door hinges carry the immense responsibility of supporting massive weight, resisting constant abuse, and enabling safe emergency exits. By matching the right hinge type—whether continuous, pivot, or ball bearing—to the specific demands of each entryway, facility managers can drastically reduce maintenance costs and improve public safety.
If you are outfitting a high-rise, commercial building, or stadium, partner with a trusted commercial door hardware manufacturer like D&D Hardware. Their certified solutions ensure your entryways meet global safety standards while delivering the performance your venue demands.
An Emergency Exit Door hinge used in commercial venues must meet strict fire and life safety codes. Look for hardware that carries UL 10C (fire testing), ANSI/BHMA grade 1 ratings (durability), and CE marks for European compliance. These certifications guarantee the hinge can withstand high heat and heavy panic loads during an evacuation.
A Grade 1 commercial hinge is tested to endure at least 2.5 million opening and closing cycles. In a busy stadium environment, high-quality stainless steel hinges properly maintained with routine lubrication can easily last 15 to 20 years before requiring replacement.
Yes. If the floor structure cannot support the drilling required for a floor-mounted pivot hinge, heavy-duty continuous geared hinges are the best alternative. Continuous hinges wrap the edge of the door, distributing massive weight safely along the entire height of the frame without relying on a floor-bearing load.
Costs vary significantly based on the size of the venue and the specific hardware required. Standard commercial ball bearing hinges range from $20 to $50 per hinge, while heavy-duty continuous or hydraulic closer hinges can cost between $150 and $400 each. Buying factory-direct from an established commercial door hardware manufacturer often reduces these expenses for large-scale projects.
