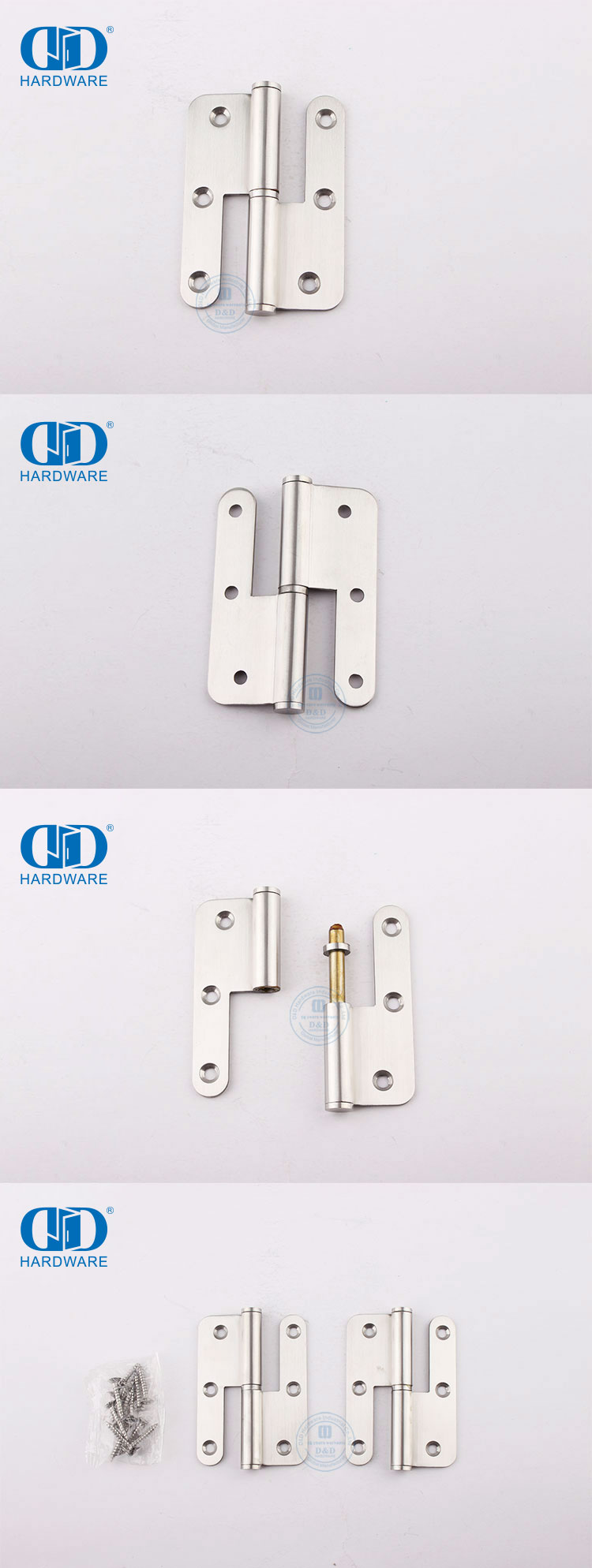

For the storage room door, the lift-off hinge solves the problem that traditional fixed hinges are difficult to remove and maintain in narrow spaces - simply lift up the door panel to remove it, without the need to loosen any fasteners, which greatly enhances the convenience of equipment maintenance and item transportation.
This storage room door is designed specifically for ordinary residential or small commercial spaces. Its core value lies in achieving tool free quick release function at a lower cost, while relying on stainless steel material to provide basic moisture and rust resistance, meeting the daily use of general household utility rooms, wardrobes, or small storage partition doors.

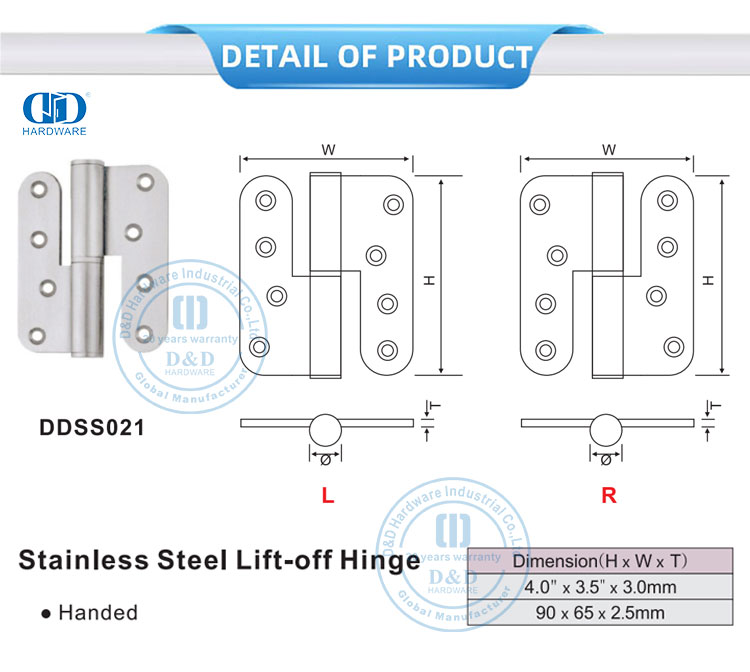

In terms of material, this type of lightweight hinge can be made of 304/316/201 stainless steel. Each hinge is equipped with four to six mounting holes, which can be fixed to the door leaf and frame using M3 or M4 self tapping screws. When selecting, simply match according to the actual door weight, without excessively pursuing large sizes.
From the perspective of practical application scenarios, this type of product is most suitable for the usage habits of residential utility rooms. Due to their light weight and low opening and closing frequency, traditional fixed hinges require large angles to open the door leaf during seasonal organization or storage of large items such as suitcases and electric fans, which can easily collide with surrounding furniture or walls. The detachable structure allows users to directly lift and remove the door panel vertically, saving the trouble of moving items. For small storage rooms in rental housing or apartments, the price of lightweight models is usually only one-third to one-half of industrial heavy-duty hinges, and the installation is extremely simple. Landlords or tenants can replace and repair them themselves. In addition, lightweight partition doors in the back warehouse of shops or small warehouses often use this type of hinge because it only serves to separate the area and does not require load-bearing or fire certification, meeting daily opening and closing requirements.

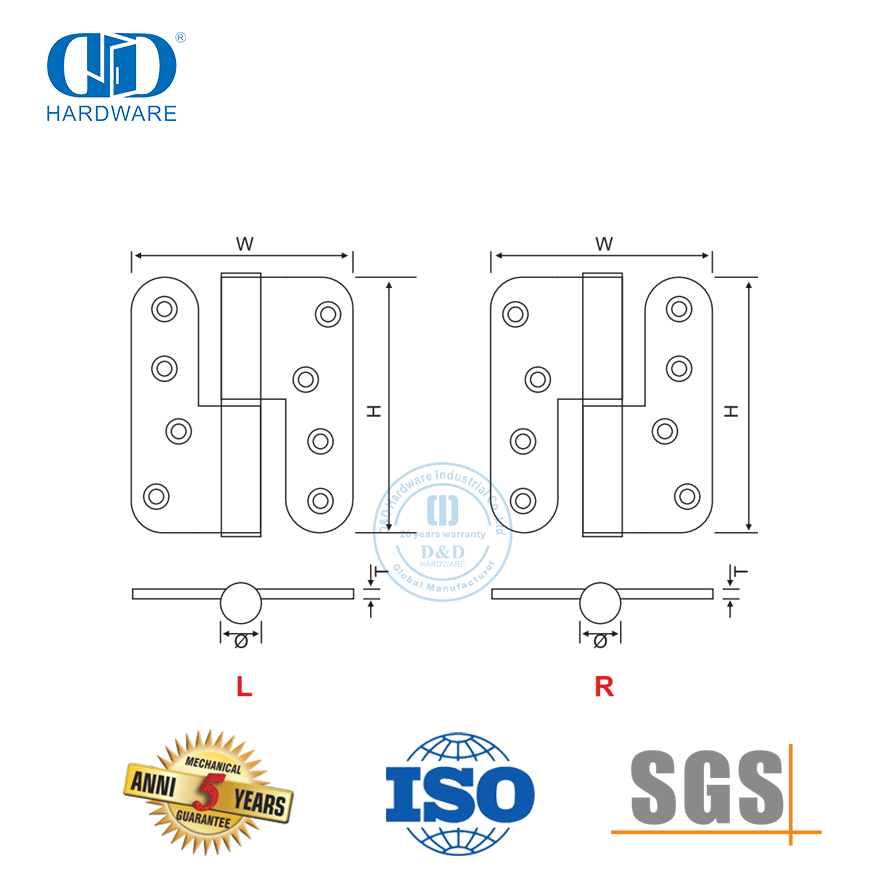

Structurally, the lightweight detachable hinge adopts an upper and lower split design, with one piece having a shaft core and the other piece having a shaft sleeve. When the door is opened, the door leaf can be vertically lifted up by about 10 to 15 millimeters to separate. When it is lowered, it naturally falls and locks by gravity, without the need for additional snap springs or spring devices. Therefore, the structure is simple, the failure rate is low, and the cost is easier to control.
The installation process is very user-friendly for ordinary users, and only requires the preparation of a handheld drill with a 3mm drill bit, cross screwdriver, tape measure, and level to be completed independently. The specific method is to first determine an installation point at a distance of about 150 to 200 millimeters from the top and bottom of the door, use a plumb line to ensure that the two hinges are vertically aligned, and then mark screw holes and pre drill guide holes on the door frame and door leaf respectively to prevent the wooden door panel from cracking. Usually, the blade with a shaft core is installed on one side of the door frame, and the blade with a shaft sleeve is installed on one side of the door leaf. When hanging the door, simply align the shaft sleeve with the shaft core and place it down. Then test whether the opening and closing are smooth and whether the door gap is even.
In daily maintenance, this type of lightweight hinge does not require complex maintenance. Every one to two years, a small amount of sewing machine oil or silicon-based lubricant can be dripped into the pin to maintain flexible rotation. The screw tightness should be checked every six months because wooden doors are prone to slight deformation due to seasonal temperature and humidity, which may cause screws to loosen. Wipe the surface with a damp cloth during cleaning to avoid damaging the stainless steel passivation film with strong acid and alkali cleaning agents.
