English Author: Site Editor Publish Time: 2026-05-20 Origin: Site
Quick answer: A reliable door hinge for high-rise buildings must handle massive door weight, continuous traffic, and severe pressure differentials. The best architectural solutions include heavy-duty ball bearing hinges, pivot hinges, and continuous geared hinges. Commercial safety also requires a fire resistance door hinge capable of withstanding temperatures exceeding 800°C.
High-rise commercial structures place extreme physical demands on every architectural component. Heavy commercial doors, constant foot traffic, and the severe air pressure differentials caused by the stack effect require specialized hardware. Installing standard residential or light-commercial hinges in these demanding environments inevitably leads to sagging doors, compromised building security, and safety hazards.
Facility managers, architects, and building contractors must evaluate door hardware based on specific structural capacities and emergency readiness. A well-chosen hinge does much more than open and close a door. It maintains the fire rating of a corridor, ensures safe egress during panic situations, and prevents costly maintenance over the lifespan of a building. D&D Hardware Industrial Co., Limited, a manufacturer with 18 years of experience, produces certified door hardware built specifically for these intense commercial applications.
By understanding the distinct categories of high-performance hinges, building professionals can make precise hardware decisions. This guide details the essential criteria for selecting heavy-duty architectural hinges, ensuring your next commercial project meets strict safety codes while delivering flawless long-term performance.
Selecting a door hinge for high-rise buildings requires matching the specific hinge design to the door's weight, traffic volume, and environmental stress. High-rise environments experience unique challenges like the stack effect, where indoor and outdoor temperature differences create strong air pressure across entryways. The hardware must withstand this pressure without failing.

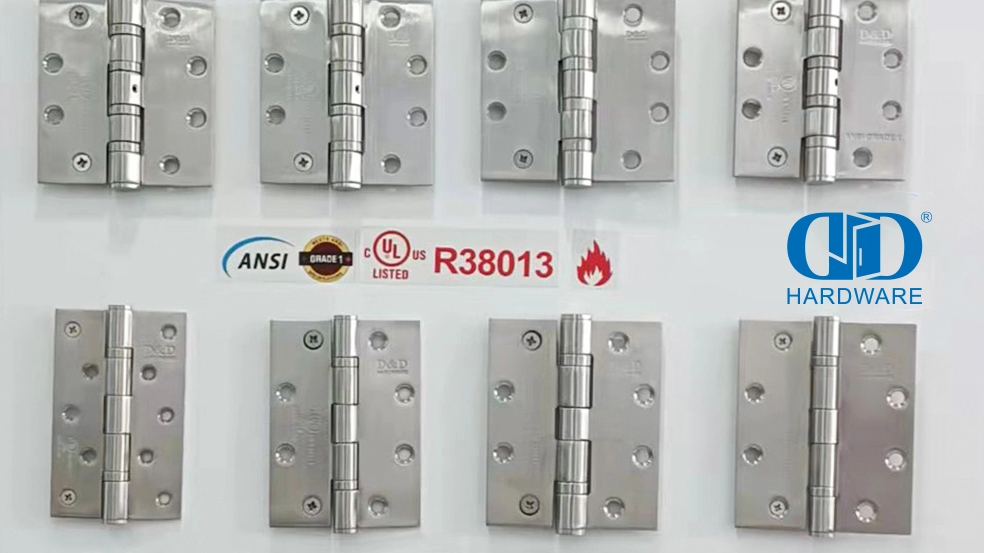

Heavy-duty ball bearing hinges contain permanently lubricated steel ball bearings between the hinge knuckles. This design drastically reduces friction as the door opens and closes. You should choose heavy-duty ball bearing hinges if your building features heavy solid wood or metal doors that experience high-frequency use. The bearings prevent the hinge from wearing down quickly, ensuring the door remains aligned within its frame. D&D Hardware manufactures ANSI and BHMA-certified ball bearing hinges that deliver unmatched durability for high-traffic entryways.
Pivot hinges support the door from the bottom and top rather than the side frame. The floor carries the entire weight of the door. Choose a pivot hinge if you are installing massive, oversized architectural doors that exceed the weight capacity of traditional side-mounted hinges. Because the floor bears the load, pivot hinges prevent the door frame from warping under extreme stress. They are highly effective for large glass or heavy metal lobby doors in commercial towers.
Continuous geared hinges run the entire length of the door. They distribute the door's weight evenly from top to bottom, completely eliminating stress points. You should select continuous geared hinges for extreme security applications and heavy abuse environments. Because there is no gap between the door and the frame, these hinges prevent tampering and forced entry. They are also highly effective for heavy fire-rated openings where maintaining a tight, gap-free seal is a regulatory requirement.
Fire-resistant hardware is a critical, non-negotiable component of any commercial building's life safety system. A fire resistance door hinge is engineered to maintain structural integrity and keep fire doors tightly sealed against their frames during an active blaze. If a standard hinge melts or buckles during a fire, the door will drop, creating gaps that allow lethal smoke and flames to spread rapidly through corridors.

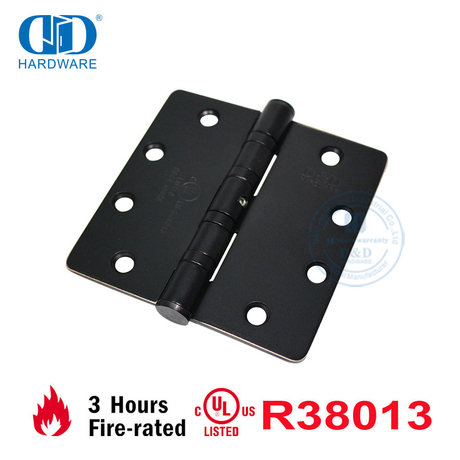

To prevent this, a fire resistance door hinge features an exceptionally high melting point, typically exceeding 800°C. These hinges undergo rigorous testing to achieve UL (Underwriters Laboratories) listing and CE certification. D&D Hardware provides UL 10C certified fire safety hardware, guaranteeing compliance with strict international building and fire safety codes. When specifying hardware for stairwells, electrical rooms, or main corridors, verifying the UL certification of the hinge is a mandatory step.
An Exit Door hinge must perform flawlessly during panic scenarios. During an emergency evacuation, hundreds of people may push against an exit door simultaneously. The Exit Door hinge must support the heavy weight of panic bar hardware while allowing the door to swing open smoothly with minimal force.
Exit Door hinges are often paired with UL 10C Fire Exit Hardware to create a complete, safe egress system. If you are outfitting a high-rise emergency stairwell, choose heavy-duty ball bearing hinges or continuous geared hinges to support the exit doors. These hinges guarantee that the door will not sag over time, which would otherwise cause the panic bar latch to bind against the strike plate and trap occupants inside.
Specifying the correct architectural hardware determines the safety and functionality of a high-rise building. By prioritizing heavy-duty ball bearing hinges, pivot hinges, continuous geared hinges, and certified fire-resistant hardware, developers protect their investments and their occupants.
D&D Hardware Industrial Co., Limited offers comprehensive technical support for project design and whole-set door solutions. With CE, UL, ANSI, and BHMA certifications, their hardware meets the demands of the most rigorous commercial environments. Contact D&D Hardware today to source factory-direct, reliable door hardware for your next high-rise project.
The cost of heavy-duty commercial hinges varies widely based on the material, certification, and hinge type. Standard heavy-duty ball bearing hinges can cost between $15 and $40 each, while specialized continuous geared hinges or high-capacity pivot hinges can range from $100 to over $300 per unit. Sourcing directly from an OEM manufacturer like D&D Hardware often reduces project costs compared to purchasing through local distributors.
A properly specified, ANSI/BHMA-certified door hinge for high-rise buildings should last between 10 to 20 years, depending on the traffic volume and maintenance schedule. Heavy-duty ball bearing hinges require very little maintenance due to their permanently lubricated bearings, maximizing their operational lifespan even under heavy daily use.
Only certified commercial door installers and professional hardware contractors should install fire-rated architectural hinges. Proper installation ensures that the fire resistance door hinge meets all local building codes and maintains the required clearances for UL certification. Incorrect installation will void the fire rating of the door assembly.
Yes. If traditional ball bearing hinges cannot support a specific door design, building contractors can use continuous geared hinges or floor-supported pivot hinges. Continuous geared hinges are the best alternative for retrofitting older, sagging frames, while pivot hinges are the necessary alternative for oversized, ultra-heavy lobby doors.
