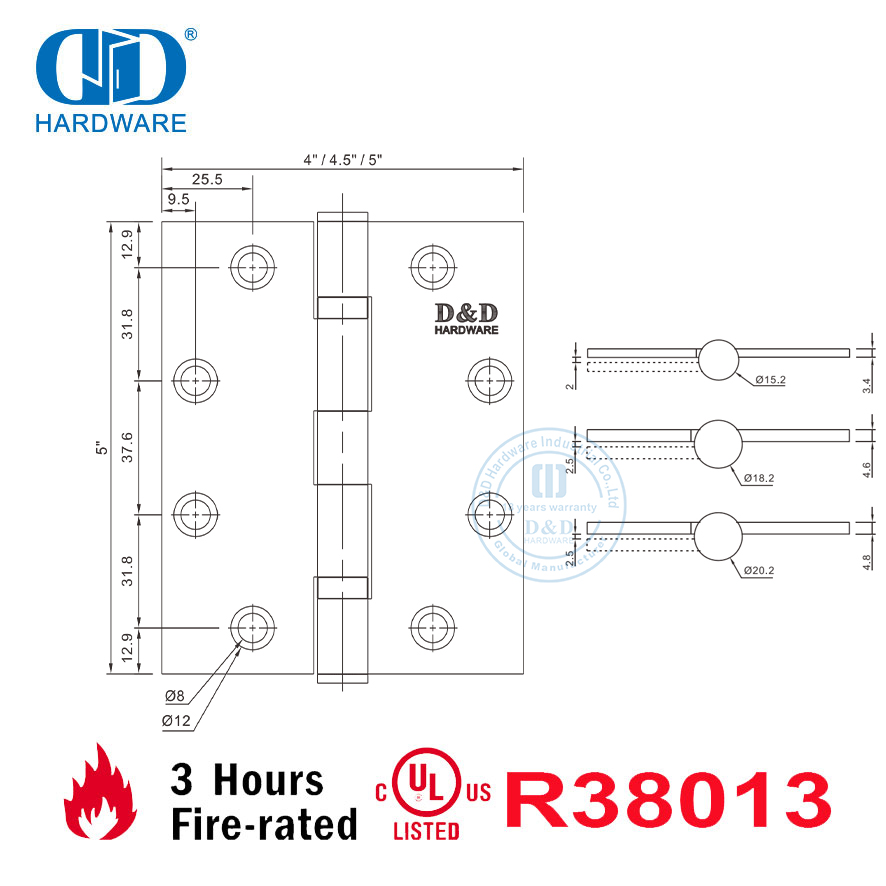

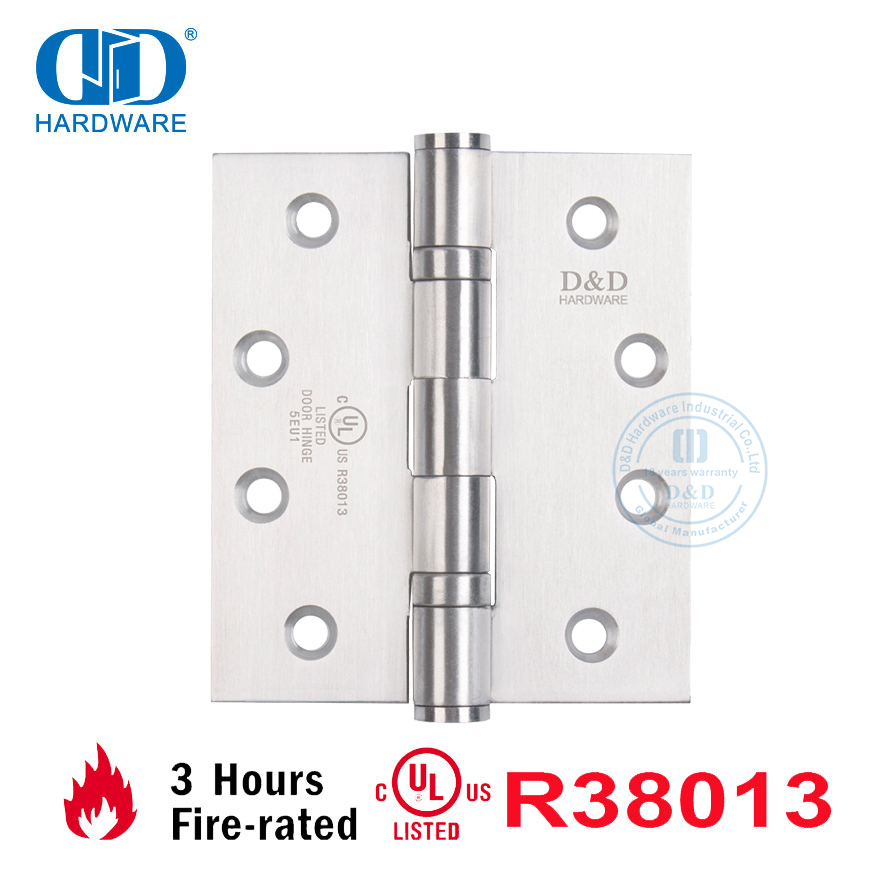

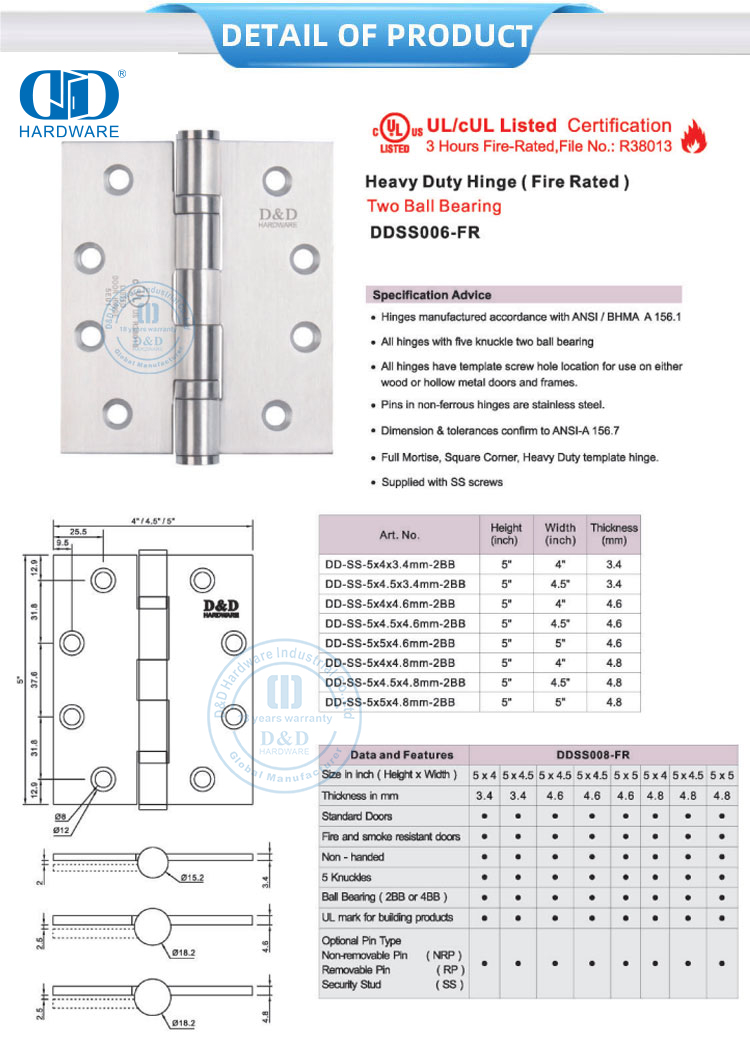

UL Listed American Standard SS304 Fire Door Hinges for Escape Exit Door-DDSS006-FR

In the Americas, escape route doors that are part of a fire door assembly must use hinges that comply with fire safety standards, which typically includes using UL fire-resistant hinges.

Here is a detailed explanation of why this is required and what the regulations stipulate:

1. The Requirement is for the Assembly, Not Just the Door

In the U.S. and Canada, building codes (like the IBC) and life safety standards (like NFPA 101) mandate that doors in escape routes and other critical areas must be fire door assemblies. This means the entire unit—the door, frame, and all hardware, including hinges—must function together as a tested system to resist fire for a specified time (e.g., 20 minutes to 3 hours) .

2. NFPA 80 is the Key Standard

The specific rules for installing and maintaining these fire door assemblies are found in NFPA 80: Standard for Fire Doors and Other Opening Protectives. This standard explicitly details the requirements for hinges on fire doors :

• *Compliance with Standards: Hinges must comply with the applicable ANSI/BHMA standards (like A156.1 for butts and hinges) .

• *Listing and Labeling: While standard hinges may not always require an individual label if they meet generic specifications, specialty hinges like spring hinges and continuous hinges are required to be labeled . This label, often a UL mark, proves the component has passed the required fire tests, such as UL 10C for 3-hour fire resistance .

• *Quantity and Size: NFPA 80 specifies the minimum number, size, and type of hinges based on the door's size, weight, and fire rating (e.g., a 3-foot by 7-foot fire door requires hinges of at least 4.5 inches in height) .

3. What Happens During an Inspection?

Annual fire door inspections are required by NFPA 80 . Inspectors check to ensure:

• *The door is self-latching and self-closing .

• *All components, including hinges, are in proper working order, secured, and aligned with no visible damage .

• *All required labels are present and legible .

If a hinge on a labeled fire door is not listed for that use (i.e., lacks the required certification), or if it is damaged or improperly installed, the entire fire door assembly will be considered non-compliant, posing a serious safety risk and potentially voiding insurance .

Summary

For any door that is part of a rated fire barrier—which includes most doors on designated escape routes in commercial and public buildings—the hinges must be fire-resistant hinges that meet the requirements of NFPA 80. While a generic "heavy duty" hinge might meet the physical size and material specs, only a UL 10C fire-rated hinge provides the certified assurance that it will maintain the door's integrity during a fire, which is why they are necessary for compliance and safety .

Please note: Our certificates will be updated. To view the latest version of the certificate, please click on this link.
