In-depth Analysis of BHMA/ANSI Grade 2 1.5 Million Cycle Test Door Hinges
In the architectural hardware industry, the BHMA/ANSI Grade 2 1.5 million cycle test for door hinges serves as a crucial benchmark for evaluating product performance, reliability, and durability, representing the standard commercial grade. To gain a deeper understanding of this concept, one can focus on three key aspects: certification standards, performance levels, and test verification.
I. Authoritative Certification: BHMA/ANSI A156.1 Standard

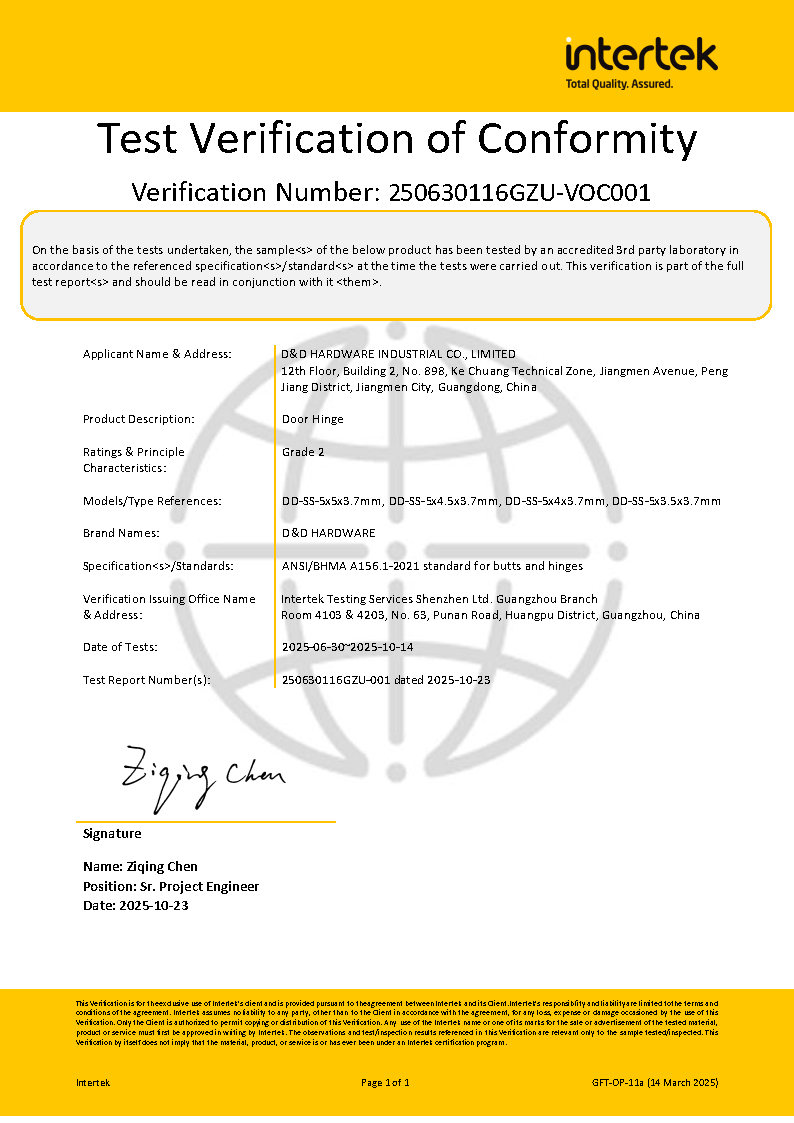

This hinge complies with the ANSI/BHMA A156.1 American National Standard for Building Hardware. In this standard, ANSI undertakes the responsibility of formulating and issuing standards, lending them authority, while BHMA conducts rigorous independent testing and certification of products. Only products that meet both ANSI standard requirements and successfully pass BHMA testing are eligible to bear the BHMA certification mark on packaging or products. This signifies that the hinge is supported by objective, quantifiable metrics in terms of material strength, dimensional accuracy, and durability.
II. Performance Rating: Level 2 (Standard Load)
In the ANSI A156.1 standard, hinges are classified into three performance levels, with Level 2 being the intermediate grade, commonly referred to as "Standard Load" hinges or "Commercial Grade" hinges.
Positioning advantage
Compared to Grade 1 (light-duty/residential-grade) hinges, which only require passing 350,000 tests, Grade 2 hinges offer significant advantages. Although Grade 1 hinges may have a maximum load-bearing capacity of 2.5 million cycles, the 1.5 million-cycle testing standard for Grade 2 hinges is more than sufficient to meet the demands of most conventional commercial environments.
Applicable scenarios
Grade 2 hinges are widely used in public and commercial buildings with moderate foot traffic, such as office buildings, schools, hospitals, hotel guest rooms, and high-end apartments. They are suitable for standard-sized wooden or metal doors, providing stable and reliable support for frequent daily opening and closing.
III. Core Durability: 1.5 Million Cycle Test
The “1.5 million cycle test” is the key mandatory criterion for classifying this hinge as Grade 2 standard, serving as a direct indicator of its quality.
Testing Process
In a laboratory setting, the hinge is mounted on a standard test door. A machine drives the door panel through continuous opening and closing cycles, typically at an angle between 60 and 90 degrees.
Test Significance
The 1.5 million cycle test simulates decades of actual wear and tear during service life. For a commercial door opened/closed 50 times daily, 1.5 million cycles equate to approximately 82 years of use. This test validates the hinge's fatigue resistance, bearing wear resistance, and ability to withstand long-term deformation.
Performance Assurance
Passing this test ensures that after 1.5 million cycles, the hinge's vertical sag, horizontal displacement, and operating torque variation remain strictly within permissible standards. This guarantees consistent smooth operation and tight closure of the door leaf, preventing sagging, sticking, or abnormal noises.
IV. Summary
BHMA/ANSI Grade 2 door hinges certified for 1.5 million cycles represent standardized, precision-engineered hardware components rigorously tested for durability. It provides architects, contractors, and building owners with a reliable selection reference: choosing hinges of this grade strikes a balance between cost, performance, and lifespan. It meets the long-term, stable hardware requirements for door systems in most standard commercial buildings, serving as a critical detail in ensuring the overall operational quality of the structure.
