Detailed Explanation of BHMA/ANSI Grade 2 Door Hinges with 1,500,000 Cycle Testing
In the architectural hardware sector, BHMA/ANSI Grade 2 door hinges with 1,500,000 cycle testing represent an authoritative benchmark for standard commercial-grade performance, reliability, and durability. To fully comprehend this designation, it must be broken down into three core dimensions: certification standards, performance grades, and testing validation.
1. The Foundation of Authoritative Certification: BHMA/ANSI A156.1 Standard

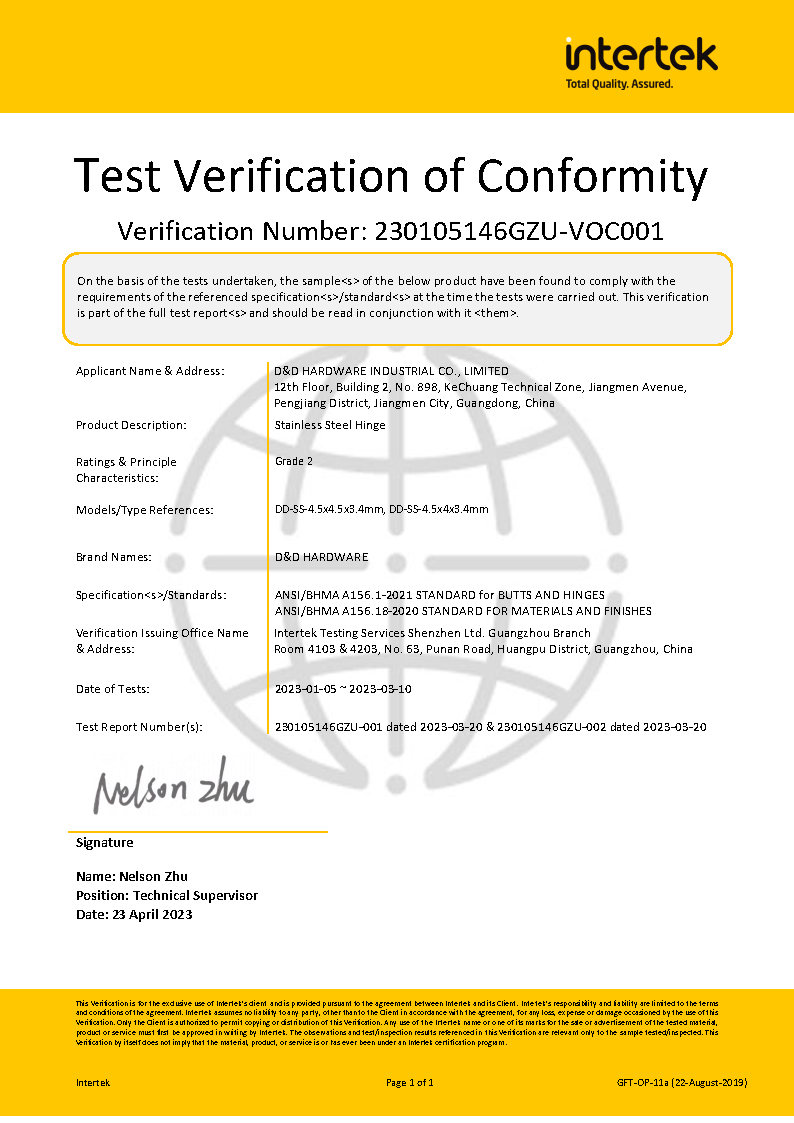

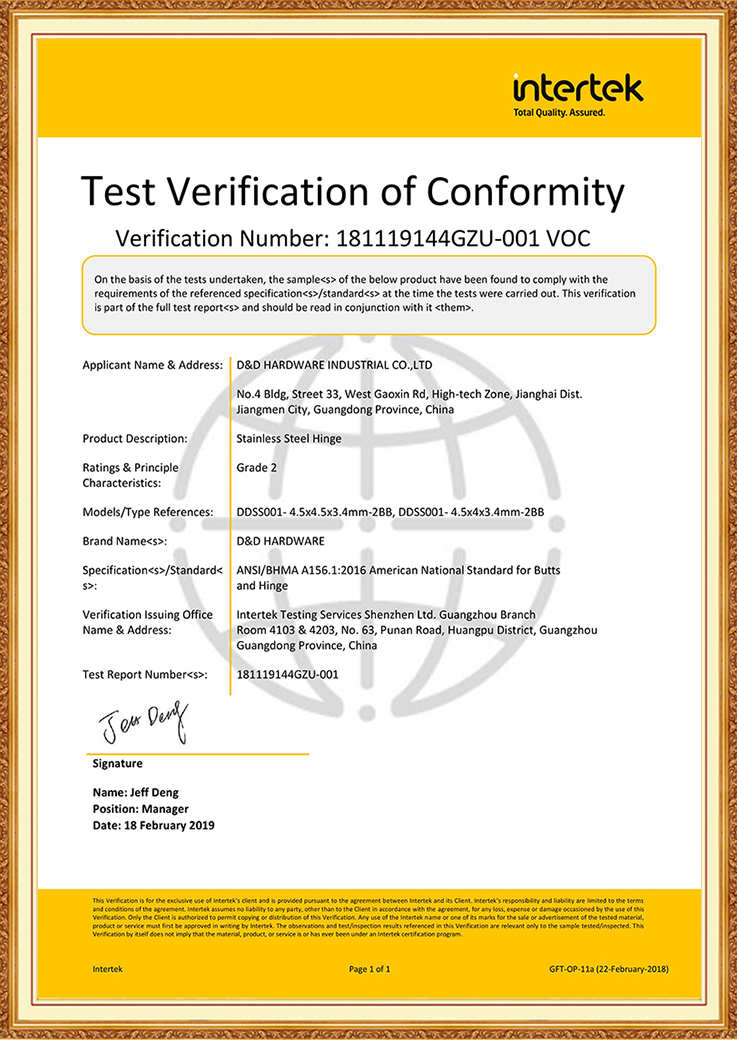

This hinge complies with the ANSI/BHMA A156.1 American National Standard for Architectural Hardware. ANSI is responsible for developing and publishing the standard, ensuring its authority, while BHMA conducts rigorous independent testing to certify products. Only products meeting both ANSI requirements and passing BHMA testing qualify to display the BHMA certification mark on packaging or products. This guarantees the hinge adheres to objective, quantifiable metrics covering material strength, dimensional accuracy, and durability.
2. Defined Performance Rating: Grade 2 (Standard Load)
Under ANSI A156.1, hinges are categorized into three performance grades. Grade 2 represents the intermediate level, commonly referred to as “Standard Load” or “Commercial Grade” hinges.
Positioning: It significantly outperforms Grade 1 (light-duty/residential-grade) hinges, which only require 350,000 cycles. While its maximum cycle count of 1,500,000 is slightly lower than Grade 1's 2,500,000 , this standard is sufficient for the vast majority of conventional commercial environments.
Applications: This grade is widely used in public and commercial buildings with moderate foot traffic, such as office buildings, schools, hospitals, hotel rooms, and high-end apartments. It suits standard-sized wooden or metal doors, providing stable support for frequent daily use.
3. Core Durability Proof: 1,500,000 Million Cycle Testing
The “1,500,000 cycle test” is the core metric defining this hinge as Grade 2 standard and the most tangible indicator of its quality.
Test Process: In the laboratory, the hinge is mounted on a standard test door. A machine drives the door panel through continuous opening and closing cycles (typically at an opening angle of 60-90 degrees).
Test Significance: 1,500,000 cycles simulate decades of real-world wear. For a commercial door opened 50 times daily, this equates to approximately 82 years of service life. This validates the hinge's fatigue resistance, bearing wear resistance, and long-term deformation resilience.
Performance Guarantee: Passing this test ensures that after 1,500,000 cycles, the hinge's vertical sag, horizontal displacement, and operating torque variation must remain strictly within permissible standards. This guarantees the door panel maintains smooth operation and tight closure without sagging, sticking, or abnormal noises.
The BHMA/ANSI Grade 2 1,500,000 cycle-tested door hinge is a standardized, precision-engineered, and rigorously durability-verified hardware component. It serves as a reliable selection benchmark for architects, contractors, and property owners: opting for this grade ensures a balanced trade-off between cost, performance, and lifespan, meeting the long-term, stable usage requirements of most standard commercial buildings for door control hardware. It stands as a critical detail in safeguarding the overall operational quality of a building.
