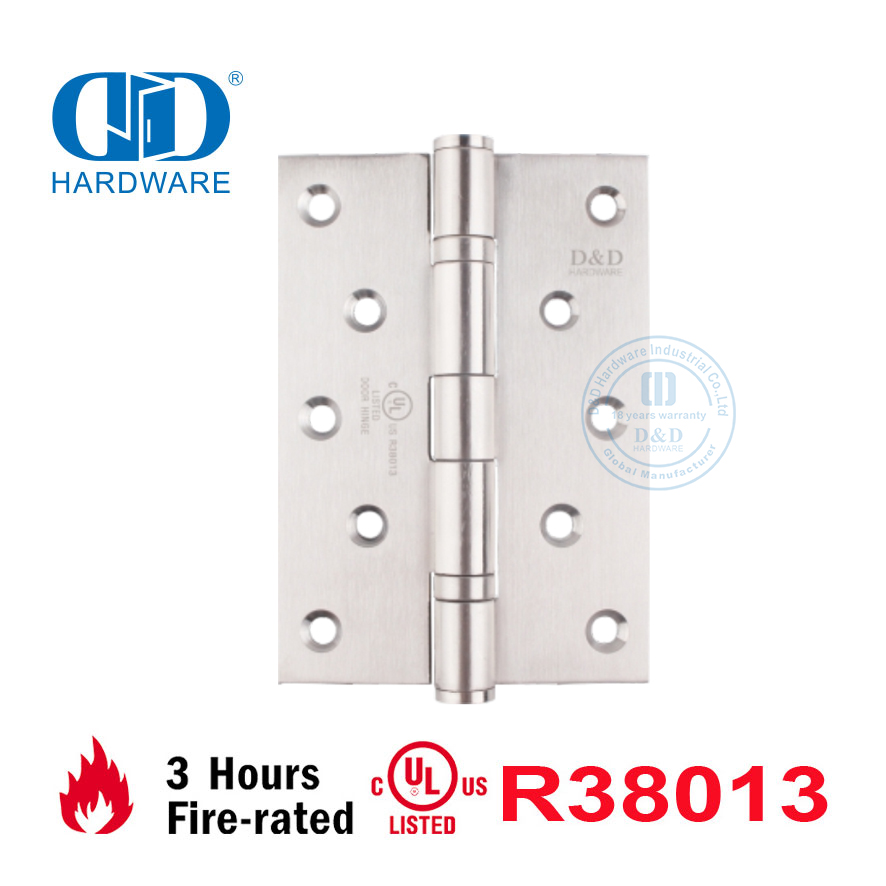

Wholesale UL Listed Fire Rated Commercial Metal Wooden Door Hinge-DDSS005-FR

A fire rated stainless steel door hinge is a type of hinge that is specifically designed for use on fire rated doors.

Model:
DDSS005-FR
Brand:
D&D Hardware
Certification:
UL 10C fire rated 3 hours
Material:
Stainless Steel
Color:
silver
Application:
hotel, apartment, commercial, office

Size:	5"x3"x3.0mm 5"x3.5"x3.0mm 5"x4"x3.0mm
Finish:	Satin Rose Gold Antique Brass Polish Satin Brass Matte Black Polish Brass Antique Copper Matte White
Availability:

Quantity:



Inquire Add to Basket

The National Fire Protection Association (NFPA) publication number 80, Standard for Fire Doors and Windows establishes the hardware requirements for fire-rated openings with builders’ hardware. All hardware installed on fire-rated openings must be listed for use on fire-rated openings.

Ball bearing butt hinge can be in grade 201/304/316 stainless steel material, square corner, template drilled, button tipped five knuckles, UL Listed (3 hour fire rated), with UL Mark, suitable for use on fire rated door, with suitable screw pack.

hinge

The hinges are typically made from stainless steel to provide added strength and resistance to corrosion, as stainless steel is a durable and long-lasting material that can withstand exposure to fire and smoke. Additionally, fire rated stainless steel door hinges are designed to help prevent the spread of fire and smoke, as they are typically equipped with intumescent seals that expand when exposed to high temperatures, helping to seal the gap between the door and the frame and prevent the spread of flames and smoke.

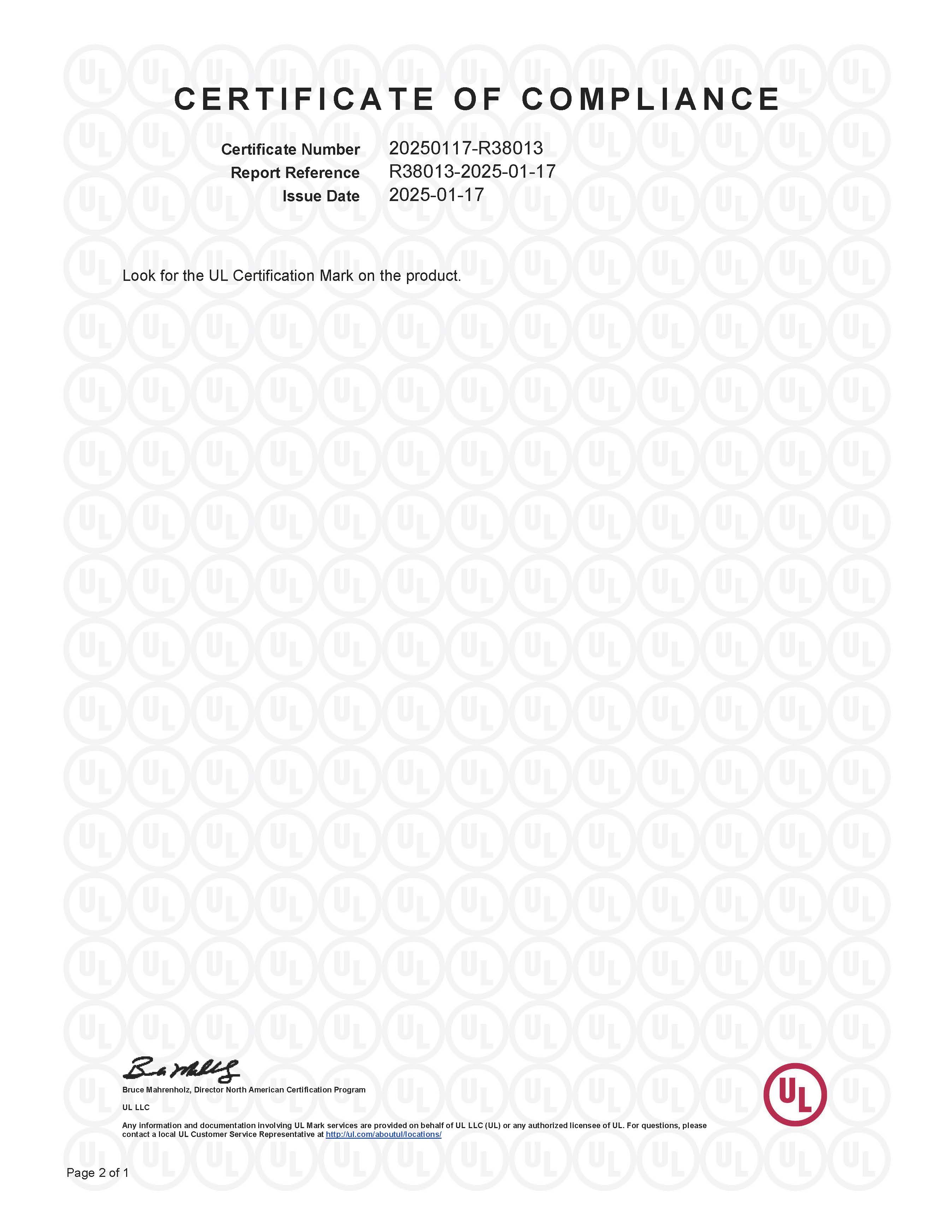

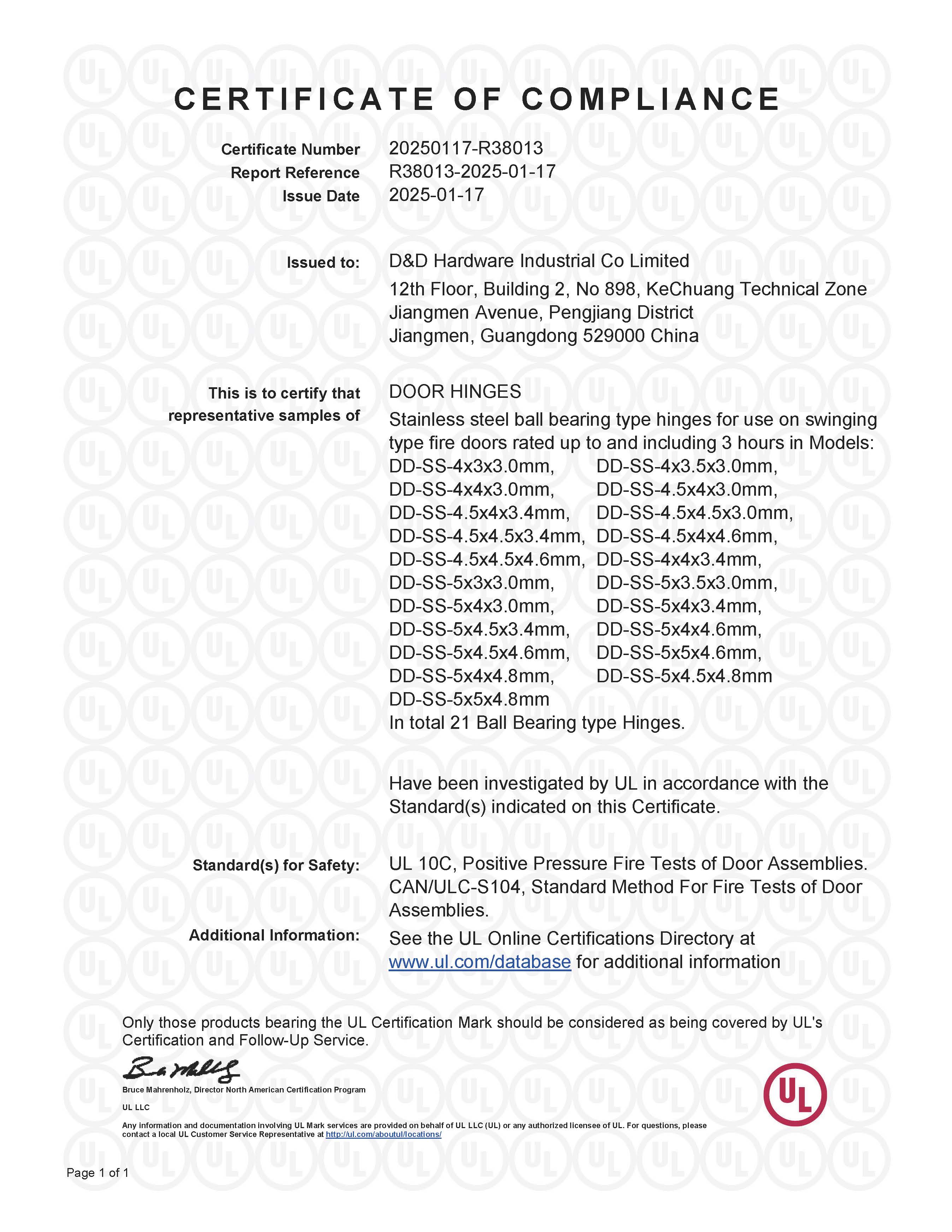

UL Certificate, in total 21 Sizes as follwing
4.0"x3.0"x3.0mm	4.0"x3.5"x3.0mm	4.0"x4.0"x3.0mm
4.5"x4.0"x3.0mm	4.0"x4.0"x3.4mm	4.5"x4.0"x4.6mm
4.5"x4.5"x3.0mm	4.5"x4.0"x3.4mm	4.5"x4.5"x4.6mm
5.0"x3.0"x3.0mm	4.5"x4.5"x3.4mm	5.0"x4.0"x4.6mm
5.0"x3.5"x3.0mm	5.0"x4.0"x3.4mm	5.0"x4.5"x4.6mm
5.0"x4.0"x3.0mm	5.0"x4.5"x3.4mm	5.0"x5.0"x4.6mm
5.0"x4.0"x4.8mm	5.0"x4.5"x4.8mm	5.0"x5.0"x4.8mm

hinge finish

Wholesale UL Fire-Rated Door Hinges for Wooden and Metal Doors

As a professional door hardware manufacturer, we offer wholesale UL fire-rated door hinges engineered for both wooden and metal door applications. Our hinges are designed to meet the highest safety standards while providing exceptional durability for commercial and residential projects.

Product Overview

Our DDSS005-FR UL-listed fire-rated hinges are certified under UL 10C for 3-hour fire protection, ensuring door integrity during emergencies. Available in multiple sizes including 5"x3", 5"x3.5", and 5"x4" configurations with thicknesses up to 3.0mm . Constructed from stainless steel 304/316 with satin stainless steel finish, these hinges feature precision ball bearings for smooth operation and fixed pins for security .

Key Specifications:

*Certification: UL 10C 3-hour fire-rated, UL File No. R38013
*Materials: Stainless steel 201, 304, or 316 options
*Suitable for: Wooden doors, metal doors, steel doors, fire-rated doors
*Features: Ball bearing construction, corrosion-resistant, noise-free operation
*Warranty: 5+ years available

Why Choose Our UL Fire-Rated Hinges?

For Wooden Doors:
Our hinges are designed with appropriate screw thread patterns compatible with wooden door frames. The precision engineering ensures proper alignment and prevents door sagging over extended use .

For Metal Doors:
Reinforced construction with thicker leaves (up to 4.8mm) provides the structural strength required for heavy steel doors and metal frames .

Fire Safety Assurance:
Each hinge maintains its integrity under extreme temperatures, ensuring fire doors remain closed and sealed during emergencies—critical for compartmentalization and life safety .
