What are stainless steel hinges used in Hospitality?

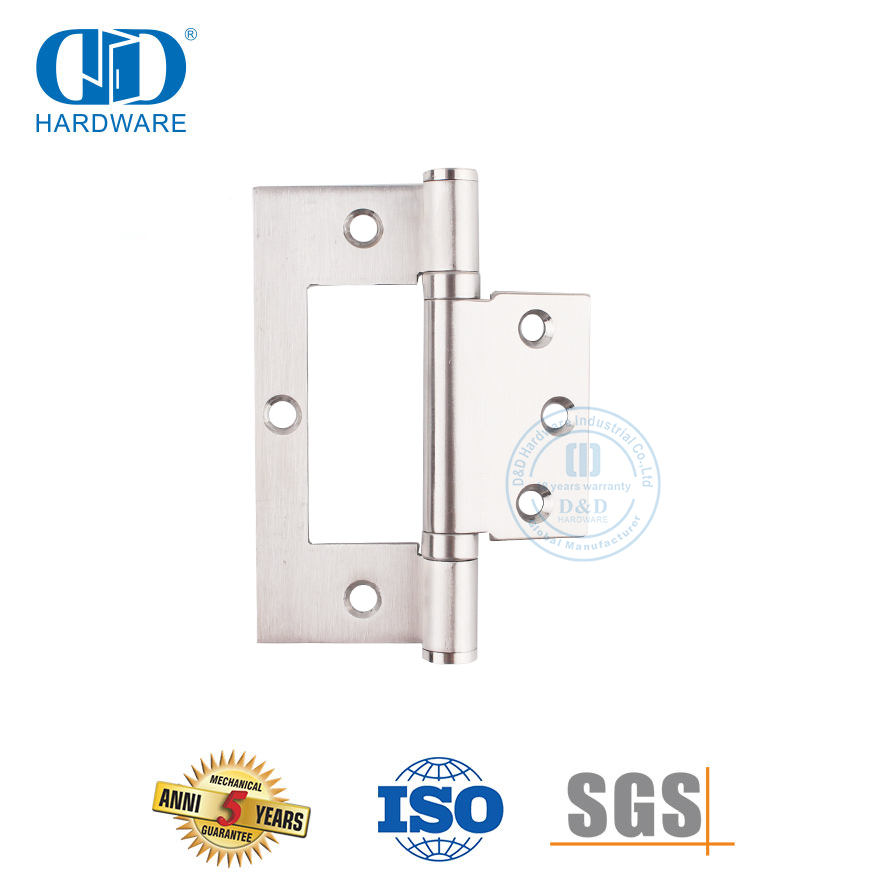

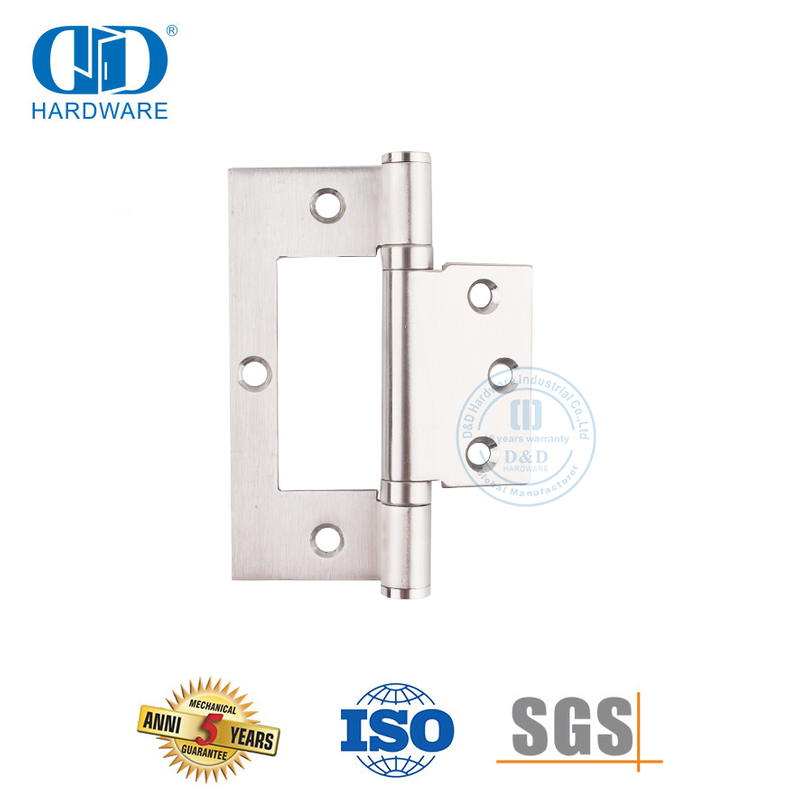

Stainless Steel Flush Hing for Hospitality is a stainless steel casement hinge designed specifically for the hospitality industry, including hotels, resorts, boutique homestays, and apartment hotels. Its core positioning is to meet the special needs of the hospital industry for high-frequency use, easy maintenance, neat appearance, and convenient installation of hardware components. This hinge adopts a slotless surface installation method, which is particularly suitable for the installation and maintenance of wooden doors, composite doors, and hollow structure hotel room doors.
Why does the hospitality industry require dedicated hinges?
The frequency of use of doors in the hotel industry is much higher than that of ordinary residential buildings. The door of a hotel room may be opened and closed dozens of times a day (for guest access, room service, luggage transportation, maintenance checks, etc.), all year round. Ordinary household hinges are prone to wear, looseness, abnormal noise, and even door leaf sagging under such high-intensity use. In addition, the hotel decoration schedule is tight, and there may be deviations in the size of the door opening. The hinges need to have certain adjustment capabilities and installation fault tolerance. The Stainless Steel Flush Hing for Hospitality is designed to address these pain points - sturdy structure, quick installation, and easy maintenance in the later stages.
What are the core parameters of this hinge?
The product offers a specification of 101.6mm x 73.5mm x 2.5mm. Converted to British units, it is approximately 4.0 inches x 2.9 inches x 2.5mm. among which
Height 101.6mm: This is the vertical length of the hinge, which determines the distribution range of the screws. 101.6mm is the standard size and is suitable for most hotel wooden doors.
Width 73.5mm: This is the total width after the hinge is unfolded, and the sub page is flush with the door frame surface after being closed with the main page, resulting in a simple overall visual effect.
Thickness 2.5mm: This is the material thickness of the stainless steel sheet. 2.5mm belongs to the range of light and medium load-bearing capacity, suitable for hotel wooden doors of standard weight.
It should be noted that a thickness of 2.5mm is suitable for wooden doors with moderate weight, such as hollow composite doors and lightweight solid wood doors. If the hotel uses thick solid wood doors or doors with glass panels, it is recommended to choose the 3.0mm thickness version to enhance load-bearing capacity.
How many doors can this 2.5mm thick hinge withstand?
Generally speaking, the weight of a standard hotel wooden door (height 2000-2200mm, width 800-900mm, hollow structure or lightweight solid wood) is usually between 25-35 kilograms. Using three 101.6x73.5x2.5mm stainless steel hinges, it can securely carry a door leaf weight of 40-50 kilograms with sufficient safety margin.
Why do hotels use Flush Hinges instead of traditional flat hinges?
This is mainly due to three reasons.
First, it allows for slotless installation. Traditional flat hinges require making grooves on the door panel and the door frame, which demands high installation accuracy and is prone to damaging the surface of the wooden door. However, the mother-daughter hinges are directly installed on the surface and can be fixed with screws, significantly reducing the installation time. For hotel projects with tight schedules, this can significantly reduce costs.
Second, it does not damage the door structure. Many hotel guest rooms have composite structures or hollow doors, with internal materials being "brittle" and unable to withstand slotting. Forceful slotting may cause the door panel to perforate or crack. The slotless design of the mother-daughter hinges perfectly avoids this problem.
Third, it is convenient for later maintenance and replacement. During hotel operations, door panels are inevitably required to be replaced due to knocks, scratches, or deformation. When using mother-daughter hinges, replacing the door panel only requires removing the hinges on the old door and reattaching them to the new door with screws. There is no need to deal with the slots on the door frame, making the operation simple and quick, and not affecting the rest of the guests in adjacent rooms.
