English Author: Site Editor Publish Time: 2025-10-22 Origin: Site
Commercial doors see heavy daily use, which means their hinges require regular maintenance and occasional adjustments. Whether you're dealing with a door that won't close properly, gaps around the frame, or squeaking sounds, learning how to adjust a commercial door hinge can save you time and money on professional repairs.
Properly functioning commercial door hinges are essential for security, energy efficiency, and smooth operations in any business environment. When hinges fall out of alignment, they can cause doors to bind, create uneven gaps, or fail to close completely—issues that compromise both functionality and safety.
This comprehensive guide will walk you through the process of adjusting commercial door hinges, from identifying common problems to performing precise adjustments that restore your doors to optimal performance.
Before attempting any adjustments, it's important to identify the type of commercial door hinge you're working with. Different hinge styles require different adjustment techniques.
Ball bearing hinges are the most common type in commercial applications. They feature ball bearings between the hinge plates that reduce friction and provide smooth operation. These hinges typically have adjustment screws that allow for fine-tuning without removing the door.
Plain bearing hinges use a simple pin-and-bushing system. While less expensive than ball bearing hinges, they require more frequent maintenance and may need complete removal for major adjustments.

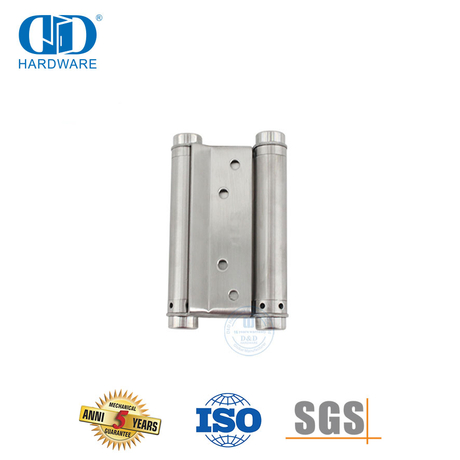

Spring hinges contain internal springs that automatically close the door. These hinges often have tension adjustment screws that control closing speed and force.
Gathering the right tools before starting will make the adjustment process much smoother. Here's what you'll need:
· Phillips head screwdriver
· Flathead screwdriver
· Adjustable wrench
· Level (24-inch recommended)
· Measuring tape
· Pencil for marking
· Safety glasses
· Work gloves
· Lubricating oil or spray
Recognizing the signs of hinge misalignment helps determine what type of adjustment is needed.
When a door fails to close all the way, the problem often stems from hinge pins that have shifted or hinges that have sagged under the door's weight. This creates binding that prevents the door from reaching its fully closed position.
Consistent gaps around the door frame indicate proper alignment, while uneven gaps suggest the door has shifted. Check the gap at the top, bottom, and along the vertical edges to identify where adjustments are needed.
Binding occurs when parts of the door or hinge rub against the frame during operation. This can result from loose screws, worn hinge pins, or gradual settling of the building structure.
Unusual sounds during door operation often indicate dry hinges, worn bearings, or metal-on-metal contact due to misalignment.
Start by examining the door while it's closed. Use a level to check if the door sits plumb in its frame. Measure the gaps around all edges—they should be consistent, typically between 1/8 and 3/16 inches.
Most commercial door hinges have adjustment screws located on the hinge plates. These may be on the side, top, or bottom of each hinge. Some hinges have multiple adjustment points for different types of movement.
Begin with small adjustments—typically no more than a quarter turn at a time. If the door is sagging, look for vertical adjustment screws that can lift the door. For lateral movement, locate the horizontal adjustment screws.
After each small adjustment, test the door by opening and closing it several times. Pay attention to how smoothly it operates and whether the gaps around the frame have improved.
Continue making small adjustments until the door operates smoothly and sits properly in its frame. Remember that adjusting one hinge may affect the alignment of others, so check all hinges after making changes.
If the door is too high or low in its frame, locate the vertical adjustment screws on each hinge. Turn these screws clockwise to raise the door or counterclockwise to lower it. Make equal adjustments to all hinges to maintain proper weight distribution.
For doors that sit too far left or right in their opening, use the lateral adjustment screws. These move the door closer to or further from the hinge side of the frame. Again, make equal adjustments to all hinges.
Some commercial door hinges allow for compression adjustment, which controls how tightly the door sits against the frame when closed. This adjustment affects the door's seal and can impact energy efficiency.
While many hinge adjustments can be handled as DIY projects, certain situations require professional expertise:
· Hinges that are severely worn or damaged
· Doors that have shifted due to building settlement
· Heavy security doors that require specialized tools
· Situations where door frame modifications are needed
Attempting complex repairs without proper experience can lead to safety hazards or more expensive problems down the line.
Regular maintenance extends the life of your commercial door hinge and reduces the need for frequent adjustments.
Apply lubricating oil to hinge pins and bearing surfaces every three to six months, depending on usage frequency and environmental conditions. Use lubricants specifically designed for commercial hardware.
Check your commercial door hinges monthly for signs of wear, loose screws, or developing problems. Early detection allows for simple adjustments before major issues develop.
Doors exposed to weather, high humidity, or corrosive environments may require more frequent attention. Consider upgrading to stainless steel or specially coated hinges in harsh conditions.
Properly adjusted commercial door hinges contribute to building security, energy efficiency, and professional appearance. By following these adjustment procedures and maintaining regular inspection schedules, you can ensure your commercial doors continue operating smoothly for years to come.
Remember that small, regular adjustments are far more effective than waiting until major problems develop. When in doubt, consult with a commercial door professional who can assess your specific situation and recommend the best course of action for your facility's needs.
