How Many Spring Hinges Do I Need for a Door?

Installing a self-closing door is a great upgrade for any home or commercial space. Whether it’s for fire safety, convenience, or just to stop the kids from leaving the door open, spring hinges are a popular and effective solution. These clever devices automatically close a door after it has been opened. But a common question that comes up during installation is: how many spring hinges do I actually need?

Putting too few spring hinges on a door can mean it won't close properly, defeating the whole purpose. On the other hand, using too many can cause the door to slam shut with excessive force, creating noise and potential safety hazards. Getting the number right is crucial for both function and safety.

This guide will walk you through everything you need to know to determine the correct number of spring hinges for your door. We’ll cover the key factors to consider, provide clear recommendations based on door size and weight, and offer installation tips to ensure your project is a success. By the end, you'll be able to confidently select and install the right number of spring hinges for a perfectly balanced, self-closing door.

What is a Spring Door Hinge?

Before we figure out how many you need, let's quickly cover what a spring door hinge is. Unlike a standard hinge that simply allows a door to pivot, a spring hinge contains a built-in spring mechanism. This spring is put under tension when the door is opened. When the door is released, the tension in the spring pulls the door closed automatically.

These are often called "self-closing hinges" and are commonly required by building codes for doors leading into a garage or for fire-rated doors in commercial buildings. They are also a great convenience for high-traffic areas like pantry doors, laundry rooms, or screen doors.

There are two main types of spring hinges:

· Single-acting: This is the most common type. The door swings in one direction and automatically closes.

· Double-acting: This type allows a door to swing in both directions (like a classic saloon door) and return to the center closed position.

For this guide, we'll focus on single-acting spring hinges, as they are the standard for most residential and commercial doors.

Factors That Determine How Many Spring Hinges You Need

There isn't a single magic number that applies to every door. The right quantity depends on several important factors.

1. Door Weight

This is the most critical factor. Heavier doors require more closing force, which means you'll need more spring hinges or stronger ones. A lightweight interior hollow-core door might only need one or two spring hinges, while a heavy, solid-wood exterior door will certainly need more. Most spring hinge manufacturers provide weight ratings for their products, so always check the packaging or product specifications.

2. Door Height

The height of your door also plays a significant role. Taller doors need more hinges in general just to remain stable and prevent warping over time. Standard practice dictates the number of hinges based on height, and this rule applies when incorporating spring hinges as well.

· Doors up to 60 inches (5 feet) tall: Typically require two hinges.

· Doors between 60 and 90 inches tall: Typically require three hinges. This covers most standard residential doors (which are usually around 80 inches tall).

· Doors over 90 inches tall (7.5 feet): Require an additional hinge for every 30 inches of height. So, a 120-inch (10-foot) door would need four hinges.

3. Door Width

While not as critical as height or weight, the width of the door can affect the amount of leverage needed to close it. Wider doors place more strain on the hinges and may require an additional hinge for support and proper closing action, especially if the door is also heavy.

4. Location and Use

Consider where the door is located. An exterior door exposed to wind or a door in a room with significant air pressure differences (like a room with an exhaust fan) will face more resistance when closing. In these situations, you might need an extra spring hinge or to set the tension higher to ensure the door latches securely every time.

General Recommendations for Standard Doors

For a standard residential door (around 80 inches tall and 32-36 inches wide), most manufacturers and building professionals offer the following guidance.

Using Only Spring Hinges

If you are replacing all the standard hinges with spring hinges, the number needed is primarily based on the door's weight.

Note: For doors over 80 lbs, it is almost always recommended to use at least three spring hinges to distribute the load evenly and provide reliable closing force.

Mixing Spring Hinges with Standard Hinges

A common and cost-effective method is to mix spring hinges with regular hinges. This is perfectly acceptable and often recommended. In this setup, the standard hinges provide support while the spring hinges provide the closing force.

When mixing, a good rule of thumb is to have at least two spring hinges on most standard doors. This provides a balanced closing action.

· For a 3-hinge door: Use two spring hinges and one standard hinge. The spring hinges are typically placed in the top and middle positions. This ensures the closing force is applied evenly from the top of the door. Placing one at the top and one at the bottom is also an option, but top and middle is generally preferred.

· For a 4-hinge door: Use two or three spring hinges. With a very heavy or tall door, using three spring hinges mixed with one standard hinge provides excellent force and support.

Pro-Tip: Never use just one spring hinge on a 3-hinge door. This can put too much stress on the single hinge and cause the door to twist or close unevenly.

Installation and Placement Tips

Where you place the spring hinges matters. Correct placement ensures the door closes smoothly and doesn't wear out the hinges prematurely.

1.Top Hinge Position: It is almost always recommended to install a spring hinge in the top position. The top hinge carries the most tension and initiates the closing action effectively.

2.Middle Hinge Position: If using two spring hinges on a three-hinge door, the middle position is the best spot for the second one. This helps distribute the closing force along the length of the door.

3.Bottom Hinge Position: The bottom hinge carries the least amount of closing force but provides crucial support. You can place a standard hinge here when mixing types. If you're using three spring hinges, the bottom one helps ensure the door latches firmly.

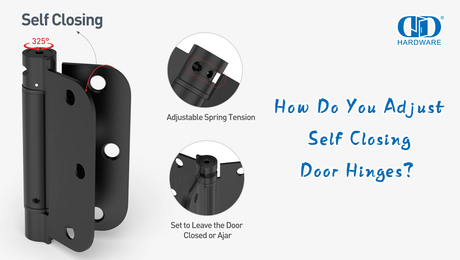

After installation, you'll need to adjust the tension. Spring hinges come with an adjustment tool (usually a small rod) and a locking pin. Follow the manufacturer's instructions carefully. Start with a lower tension setting and increase it gradually until the door closes and latches securely without slamming. Adjusting all spring hinges to a similar tension level will create the smoothest closing motion.

Your Final Answer

So, how many spring hinges do you need? For most standard interior and exterior doors (up to 80 lbs and 90 inches tall), two spring hinges are usually sufficient, especially when paired with one standard hinge. For heavier doors or doors that need to meet specific fire-code requirements, using three spring hinges is the safest and most reliable option.

Always consult the manufacturer's specifications for the specific spring door hinge you purchase, as weight ratings are the most important guide. By considering your door's weight, height, and intended use, you can confidently choose the right number of hinges for a job well done.
