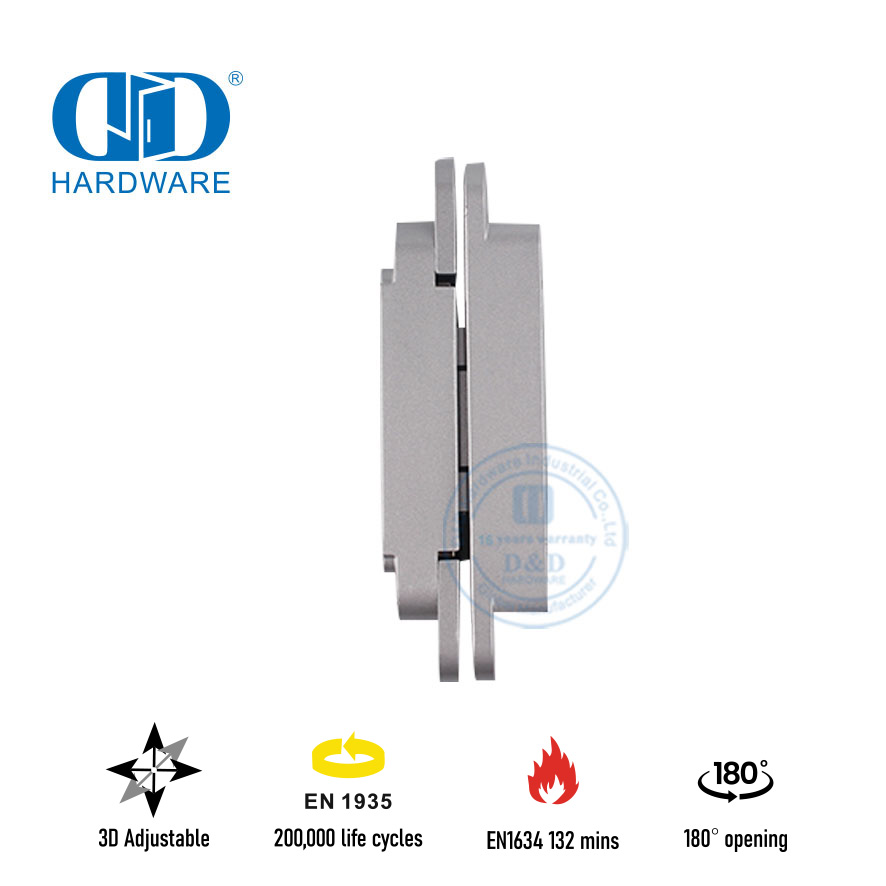

EN1935 Fire Rated 3D Invisible Door Hinge for Office Building-DDCH008-G40

According to EN1634 standard, the duration of fire protection is 132 minutes, which can effectively block the spread of fire, provide key fire protection zoning support for office buildings, and meet the requirements of fire protection regulations.

Model:
DDCH008-G40
Brand:
D&D Hardware
Certification:
BS EN1935 200,000 cycles test, EN1634 fire rated 132mins, EN1670 corrosion resistance 48 hours
Material:
Zinc Alloy Body, Aluminium Connecting Strip
Color:
silver
Application:
Wooden Door, Metal Door

Availability:

Quantity:



Inquire Add to Basket

Office Building Invisible Door Hinge 3D Invisible Door Hinge

Designed specifically for modern office buildings, the 3D Invisible Door Hinge offers exceptional load-bearing capacity, extended service life, and multiple safety certifications, making it the ideal choice for high-end commercial space door control systems. Its core parameters and functional advantages are as follows:

I. Core Performance Parameters

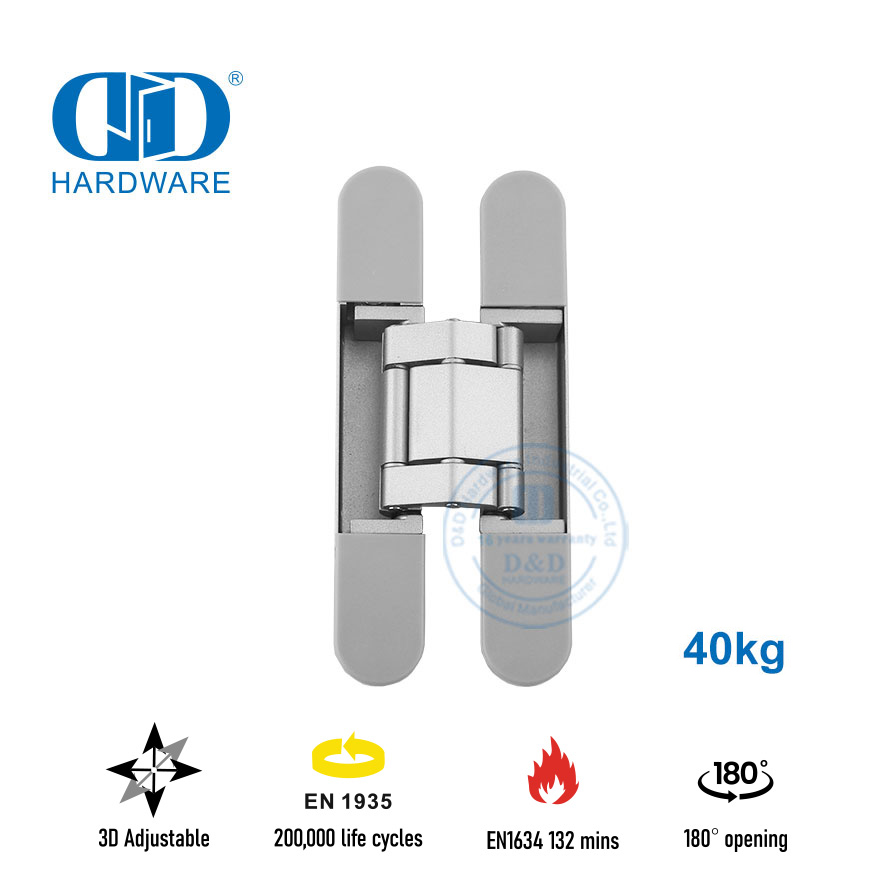

1. Load Capacity: Each hinge supports 40kg door weight, reliably accommodating solid wood, metal, or composite doors. Suitable for heavy-duty doors common in office settings (e.g., meeting rooms, archive rooms).

2. Opening Angle: Supports a 180° full-open design, allowing doors to lie flush against walls. This saves space and enhances passage efficiency, particularly suited for narrow areas like corridors and lift lobbies.

3. Service Life: Passed the BS EN1935 standard's 200,000-cycle opening/closing test. Maintains stable performance for over 10 years even with high-frequency daily use (e.g., public area doors), significantly reducing maintenance costs.

II. Safety and Fire Certification

1. Fire Resistance: Complies with EN 1634 standard, offering 132 minutes of fire resistance. Effectively blocks fire propagation, providing critical fire compartmentation for office buildings and meeting fire safety regulations.

2. Corrosion Resistance: Passed the EN 1670 standard 48-hour salt spray test. The zinc alloy coating exhibits strong corrosion resistance, ensuring long-term structural stability even in humid environments (e.g., doors near bathrooms or basements).

3. Security Protection: Concealed design minimises exposed components, reducing prying risks. When paired with fire doors, it enhances overall security.

III. 3D Adjustment Functionality: Precise Adaptation to Office Requirements

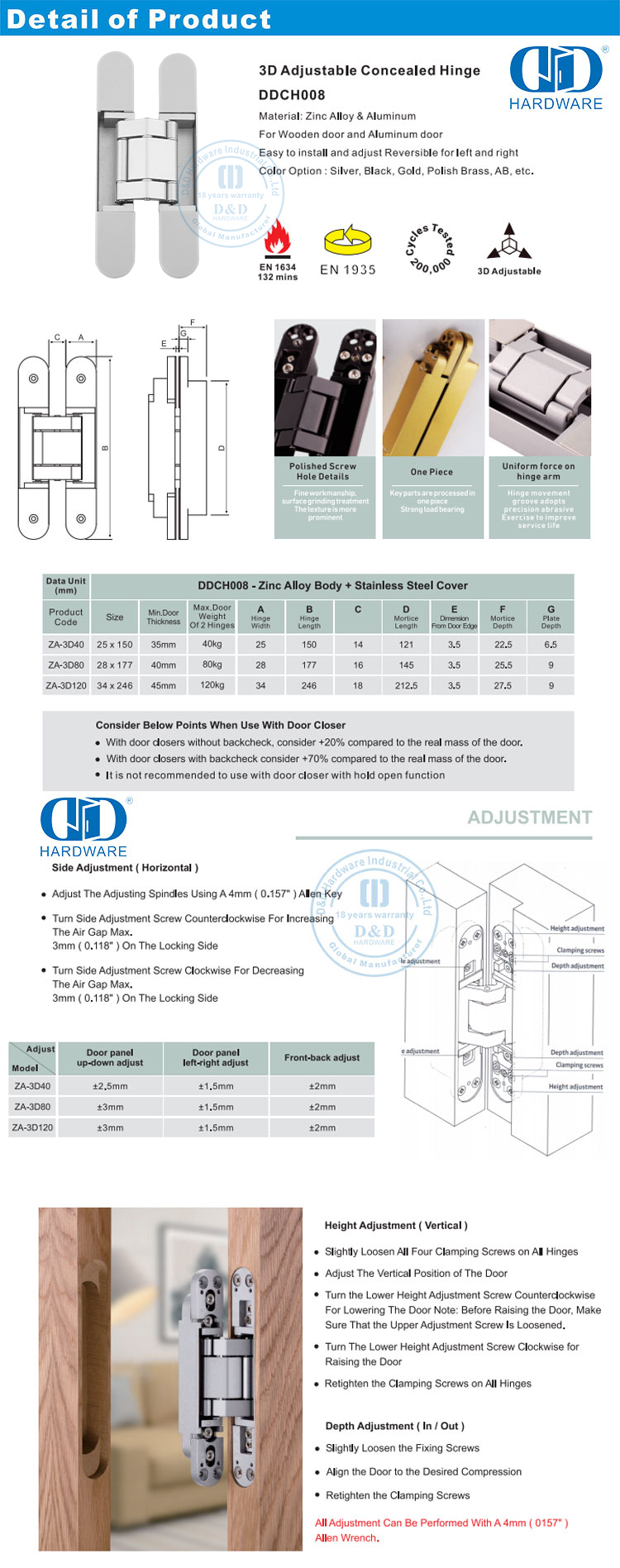

1. Three-Dimensional Fine-Tuning: Supports vertical, horizontal, and front-to-back adjustments to swiftly correct installation inaccuracies or environmental-induced deformation (e.g., temperature/humidity effects), ensuring uniform door gaps and airtight closure.

2. Silent Operation: Precision bearing mechanisms minimise opening/closing noise, preventing disruption to meeting rooms, offices, and other quiet-requiring environments.

3. Versatile Compatibility: Accommodates diverse materials including timber, metal, and glass doors, facilitating flexible deployment across functional zones within office buildings.

IV. Typical Office Building Applications

1. Meeting Rooms/Executive Offices:

Invisible design maintains spatial coherence, while 180° full-opening functionality enhances accessibility.

Fire certification meets stringent security requirements for premium office environments.

2. Public Corridors/Lobby Areas:

Withstands high-frequency use through 200,000-cycle durability testing for long-term, trouble-free operation.

Corrosion resistance suits high-traffic areas requiring frequent cleaning.

3. Archives/Server Rooms:

40kg load capacity securely supports heavy fire doors, while 132-minute fire resistance safeguards critical documentation.

4. Accessible Passageways:

180° wide-angle opening facilitates wheelchair access, aligning with human-centred workplace principles.

V. Product Value Summary
