How Do You Adjust Self Closing Door Hinges？

Self closing door hinges acting up? You're not alone. These spring-loaded mechanisms can lose their adjustment over time, leaving you with doors that slam shut, barely close at all, or stick halfway open. The good news is that most self closing door hinge problems can be fixed with basic tools and a few simple adjustments.

Whether your door is closing too fast, too slow, or not closing completely, this guide will walk you through the step-by-step process of getting your self closing door hinges back to perfect working order. You'll learn how to identify common issues, make precise adjustments, and maintain your hinges for long-term performance.

Understanding Self Closing Door Hinges

Self closing door hinges use an internal spring mechanism to automatically pull doors closed after they've been opened. Unlike regular hinges that rely on gravity or manual force, these hinges contain a tension spring that creates the closing action.

Most self closing door hinges feature an adjustment screw or mechanism that controls the spring tension. This adjustment point determines how quickly or slowly the door closes and how much force is applied during the closing motion.

The three main types of self closing hinges include:

· Spring-loaded hinges with visible coil springs

· Concealed spring hinges with internal mechanisms

· Hydraulic self-closing hinges that use fluid resistance for smooth operation

Tools You'll Need

Before starting any adjustments, gather these basic tools:

· Phillips head screwdriver

· Flathead screwdriver

· Allen wrench set (if your hinges use hex screws)

· Lubricating spray (like WD-40)

· Clean cloth or rag

Most self closing door hinge adjustments require only a screwdriver, making this a straightforward DIY project for most homeowners.

Step-by-Step Adjustment Process

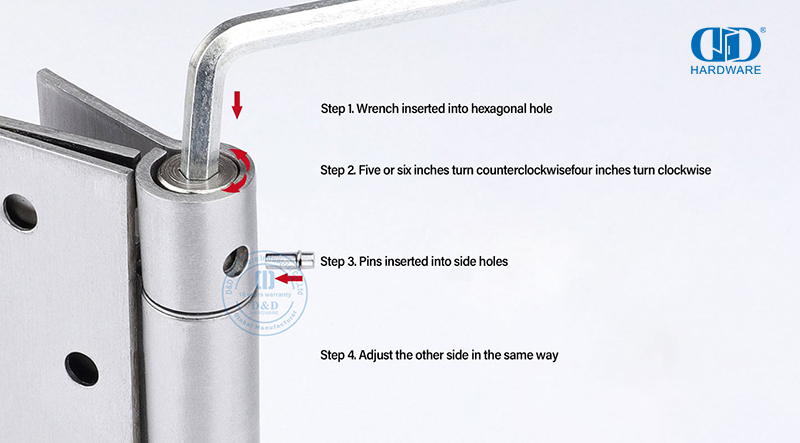

Step 1: Locate the Adjustment Mechanism

Find the adjustment screw on your self closing door hinges. This is typically located on the hinge barrel or at the base of the hinge. Some hinges have multiple adjustment points for fine-tuning different aspects of the closing action.

Look for a small screw head, often marked with plus (+) and minus (-) symbols to indicate the direction of adjustment.

Step 2: Test the Current Door Action

Before making adjustments, open the door completely and release it to observe the current closing behavior. Note whether the door:

· Closes too quickly or slams shut

· Closes too slowly or stops partway

· Fails to close completely

· Makes unusual noises during operation

This baseline test helps you determine which direction to adjust the tension.

Step 3: Make Initial Adjustments

For doors that close too quickly or slam shut, turn the adjustment screw counterclockwise to reduce spring tension. Start with small quarter-turn adjustments.

For doors that close too slowly or don't close completely, turn the adjustment screw clockwise to increase spring tension. Again, work in small increments.

Step 4: Test and Fine-Tune

After each adjustment, test the door's closing action. Open the door fully and let it close naturally. The ideal adjustment allows the door to close smoothly at a moderate speed without slamming.

Continue making small adjustments until you achieve the desired closing speed and force. Remember that it's better to make several small adjustments than one large one.

Step 5: Adjust Multiple Hinges

If your door has multiple self closing hinges, adjust each one individually to match the others. Uneven adjustment between hinges can cause the door to bind or close unevenly.

Start with the top hinge, then adjust the bottom hinge to match. Test the door action after adjusting each hinge.

Common Problems and Solutions

Door Won't Close Completely

When a door stops short of fully closing, the spring tension is usually too weak. Increase tension by turning the adjustment screw clockwise in small increments. If the hinge has reached maximum adjustment and still won't close completely, the spring may be worn out and need replacement.

Door Slams Shut

Doors that slam shut have too much spring tension. Reduce the tension by turning the adjustment screw counterclockwise. If the slamming persists even at the lowest tension setting, consider adding a door closer or replacing the hinges with a gentler model.

Inconsistent Closing Speed

If the door closes at varying speeds or hesitates during closing, the hinges may need lubrication. Apply a small amount of lubricating spray to the hinge pins and moving parts, then work the door back and forth several times to distribute the lubricant.

Noisy Operation

Squeaking or grinding noises usually indicate dry or dirty hinges. Clean the hinges with a damp cloth, then apply lubricant to all moving parts. If noise persists, check for worn components that may need replacement.

Maintenance Tips for Long-Term Performance

Regular maintenance keeps self closing door hinges working smoothly and extends their lifespan. Clean the hinges every few months with a damp cloth to remove dust and debris that can interfere with operation.

Lubricate the moving parts annually with a light machine oil or spray lubricant. Avoid heavy greases that can attract dirt and gum up the mechanism.

Check the adjustment screws periodically, as vibration and use can cause them to loosen over time. A quick turn to restore proper tension can prevent larger problems down the road.

Inspect the hinges for signs of wear, such as loose screws, worn pins, or damaged springs. Early detection of wear allows for timely repairs or replacement before complete failure.

When to Call a Professional

While most self closing door hinge adjustments are DIY-friendly, some situations warrant professional help. If the hinges are damaged, worn beyond adjustment, or integrated into a complex door system, a door hardware specialist can provide expert service.

Commercial or security doors with specialized closing requirements may need professional adjustment to maintain proper function and compliance with building codes.

Keep Your Doors Closing Smoothly

Properly adjusted self closing door hinges provide years of reliable service with minimal maintenance. By following these adjustment techniques and maintenance practices, you can keep your doors closing at the perfect speed and force.

Regular attention to your self closing door hinges prevents minor issues from becoming major problems. Take a few minutes to check and adjust your hinges when needed, and they'll continue providing smooth, automatic door closing for years to come.
