Hidden doors have a certain magic to them. Whether they conceal a secret pantry, a quiet reading nook, or just a storage closet, they add an element of surprise and sophistication to any space. The secret behind this seamless illusion lies in a clever piece of hardware: the hidden door hinge. Unlike traditional hinges that are visible along the door jamb, these are designed to be completely out of sight when the door is closed.
If you’ve ever wondered how these ingenious devices operate, you're in the right place. This guide will explain the mechanics behind hidden door hinges, explore the different types available, and walk you through what to consider when choosing them for your own project. Understanding how they work is the first step toward creating that clean, uninterrupted look you’ve been dreaming of.

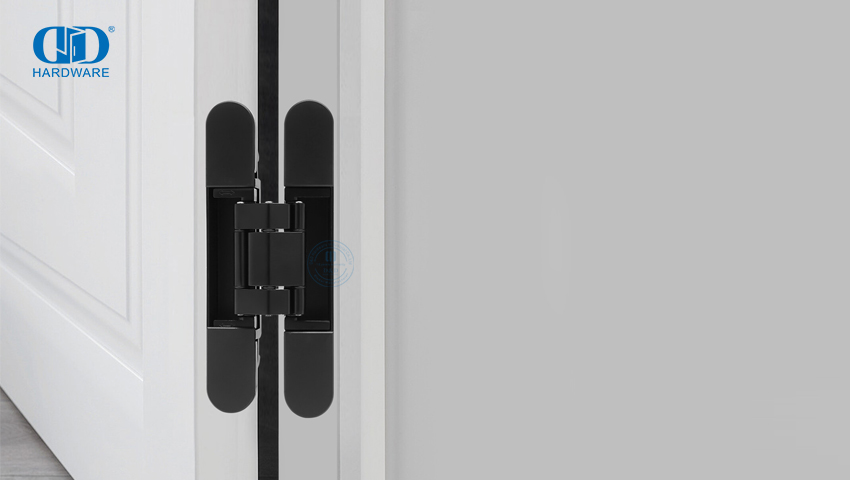

Hidden door hinges, also known as invisible or concealed hinges, are a type of hinge that is mortised (or recessed) into both the door and the door frame. Because they sit flush within the wood, they become completely invisible when the door is shut. This creates a clean, seamless appearance, making it seem as if the door is part of the wall itself.
When the door is opened, the hinge pivots on a series of interlocking plates and arms, moving the door away from the frame. This complex movement is what distinguishes them from the simple swing of a traditional butt hinge.
So, how do hidden door hinges work to achieve this disappearing act? The magic is in their multi-pivot design.

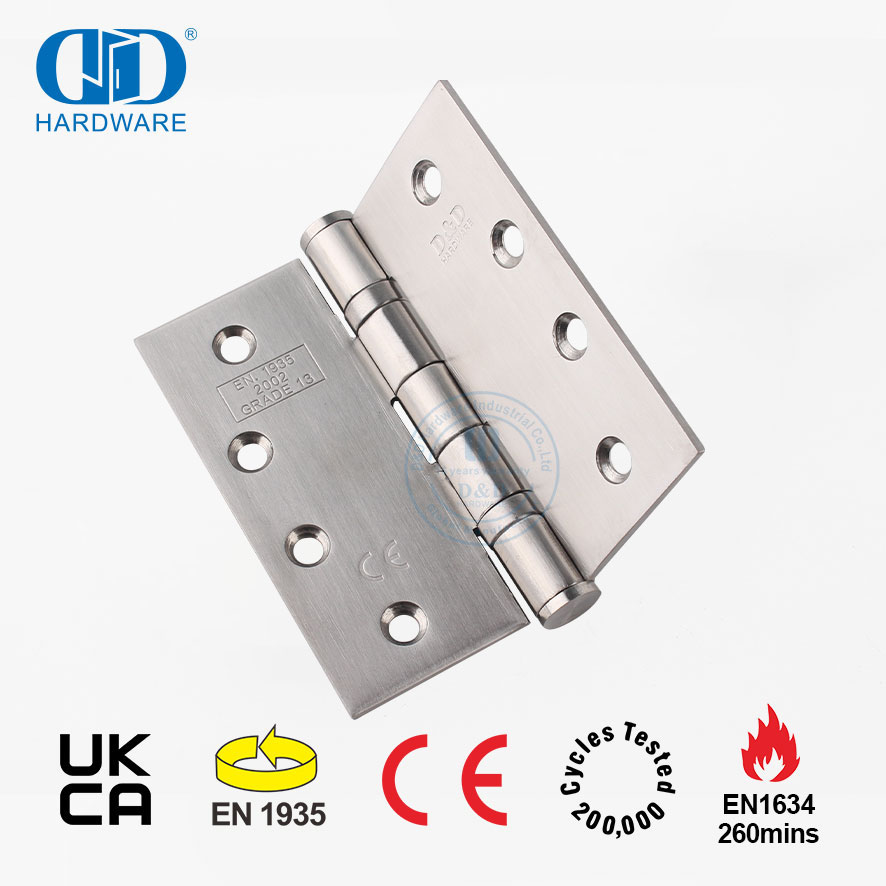

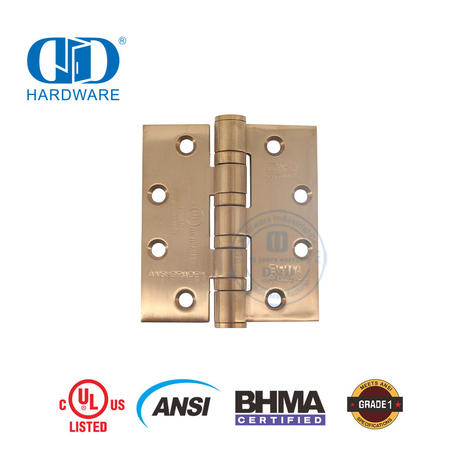

A standard butt hinge has a single pivot point—a pin that connects two leaves. When the door opens, it swings in a simple arc around that one point.
A hidden hinge, however, operates on a more complex principle. It uses a series of metal plates connected by pivoting arms. Think of it like the joints in your arm—your shoulder and elbow work together to move your hand in complex ways. Similarly, these hinges use multiple pivot points to guide the door.
Here’s a step-by-step breakdown of the motion:
1.Closed Position: When the door is closed, the hinge's plates and arms are folded neatly into the mortises cut into the door and frame. Everything is tucked away, completely out of sight.
2.Initial Opening: As you begin to open the door, the first set of pivots engages. The arms of the hinge start to unfold, pushing the door outward, away from the frame. This initial movement is crucial because it creates the necessary clearance so the edge of the door doesn't scrape against the wall.

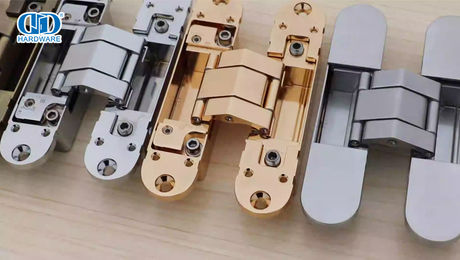

3.Full Swing: As the door continues to open, the other pivot points come into play, allowing the door to swing open smoothly, often up to a full 180 degrees. The interconnected arms support the door's weight throughout its entire range of motion.
This sophisticated mechanism is what allows the door to sit perfectly flush with the wall when closed, yet open without any interference.
While the core principle is the same, hidden hinges come in a few different styles, each suited for specific applications and door types.

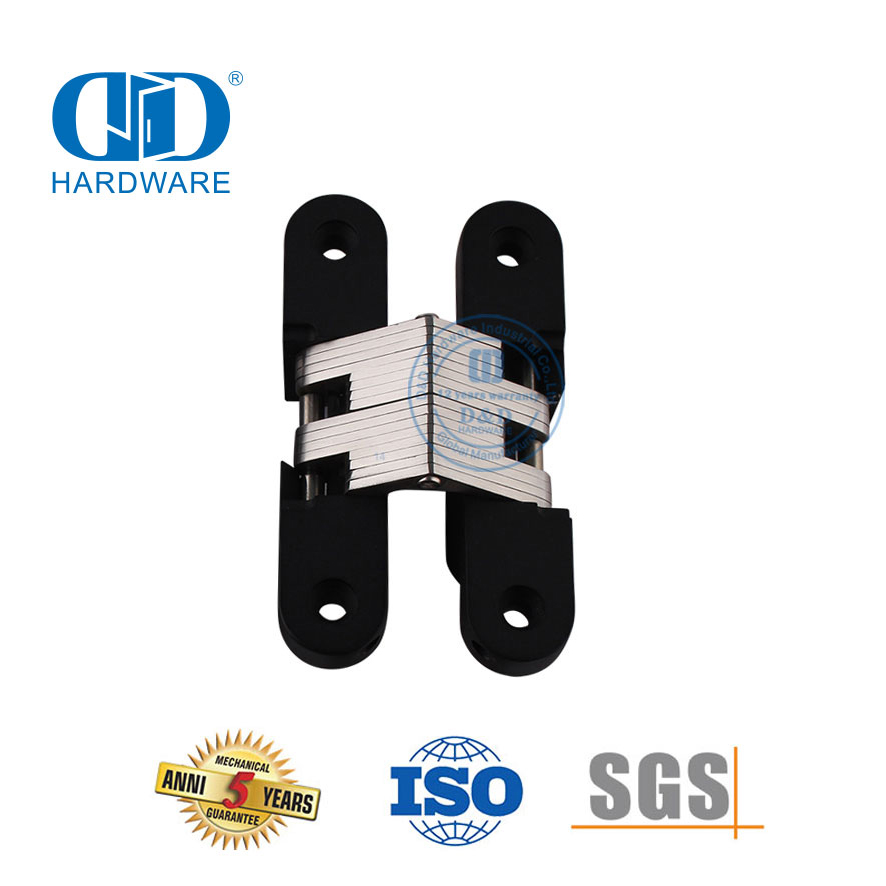

The Soss hinge is one of the original and most recognized types of invisible hinges. Invented in the early 20th century, it features a series of stacked, interlocking plates that create a very strong and durable connection.
· How they work: Soss hinges consist of several thin metal plates that pivot around a central pin. When the door is opened, these plates separate and glide past each other. They are known for their strength and are often used for heavier doors.
· Best for: Interior doors, cabinet doors, and furniture where a completely concealed look is desired.
Barrel hinges are small, cylindrical hinges that are ideal for lightweight applications, such as small cabinet doors or decorative boxes.
· How they work: This type of hinge comes in two parts. Each part is a cylinder with an attached, pivoting arm. One cylinder is installed into a hole drilled in the door, and the other into a corresponding hole in the frame. The two arms link together, allowing the door to pivot.
· Best for: Jewelry boxes, small cabinets, and other fine woodworking projects where appearance is critical and the door is not heavy.
Commonly found on modern kitchen cabinets, European-style hinges are a type of concealed hinge that offers a high degree of adjustability.
· How they work: These hinges have a mounting plate that attaches to the inside of the cabinet and a "cup" that is installed into a circular mortise on the back of the door. They are not truly invisible from all angles, as you can see them when the cabinet door is open, but they are completely hidden when closed. Their main advantage is the ability to adjust the door's position (up/down, left/right, and in/out) after installation using simple screws.
· Best for: Kitchen cabinets, bathroom vanities, and any frameless cabinetry where post-installation adjustments are important.
For a truly dramatic effect, especially with large, heavy doors, pivot hinges are an excellent choice. While not always completely "hidden" in the same way as Soss hinges, they create a similar seamless look by eliminating the need for side-mounted hinges.
· How they work: Instead of being mounted on the side of the door, a pivot hinge is installed at the top and bottom. This allows the door to pivot on a vertical axis. The result is a floating, swinging panel that can be quite striking.
· Best for: Large, heavy, or oversized doors, such as statement entry doors or room dividers.
If you're planning to use hidden hinges for your project, here are a few key factors to keep in mind:
· Door Weight and Size: This is the most important consideration. Hinges are rated to support a specific amount of weight. Heavier doors will require larger, more robust hinges (or more hinges per door) to function safely and properly.

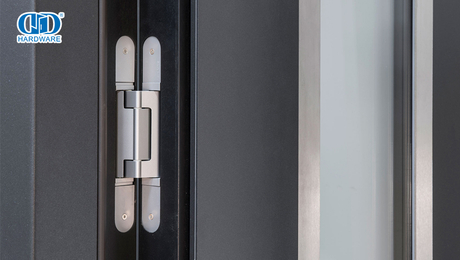

· Door Thickness: The body of the hinge needs to be mortised into the door, so you must ensure your door is thick enough to accommodate it without compromising its structural integrity.
· Required Opening Angle: Do you need the door to open a full 180 degrees, or is a 90-degree opening sufficient? Different models offer different ranges of motion.
· Material and Finish: Hidden hinges come in various finishes, like satin nickel, chrome, or black. While they are invisible when the door is closed, the finish will be visible when it's open, so choose one that complements your overall design.
· Installation: Installing hidden door hinges requires precision. The mortises in the door and frame must be cut accurately for the hinge to sit flush and operate smoothly. While a confident DIYer can tackle the job, it often requires specialized jigs and router bits. For a flawless result, you may want to consider hiring a professional carpenter.
Hidden door hinges are a testament to clever engineering, offering a way to blend form and function perfectly. By using a system of multi-pivot arms, they allow doors to sit completely flush with their frames, creating clean lines and an element of architectural surprise. Whether you’re designing a modern kitchen, a secret room, or a piece of custom furniture, understanding how these hinges work will help you choose the right hardware to bring your vision to life.
