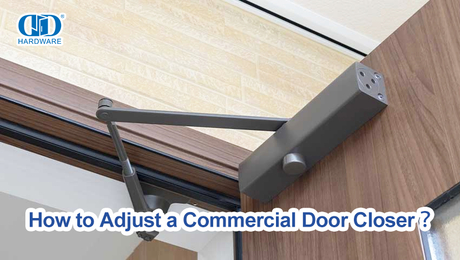

A door that slams shut or creeps closed at a snail's pace can be incredibly frustrating. Whether you're dealing with a commercial building entrance or a residential screen door, getting the speed just right is essential for both convenience and safety. The good news? Adjusting your door closer speed is easier than you might think.
Most door closers feature adjustable valves that control the flow of hydraulic fluid, allowing you to fine-tune the closing speed to your exact needs. With the right tools and a few minutes of your time, you can transform an annoying door into one that closes smoothly and consistently.
This guide will walk you through everything you need to know about adjusting door closer speed, from identifying the type of closer you have to making precise adjustments that last.
Before making any adjustments, you need to identify what type of door closer you're working with. Most modern door closers fall into two main categories: hydraulic and pneumatic.
Hydraulic door closers use oil-filled cylinders to control movement and are the most common type found on commercial and residential doors. These closers typically have one or more adjustment screws that regulate fluid flow.

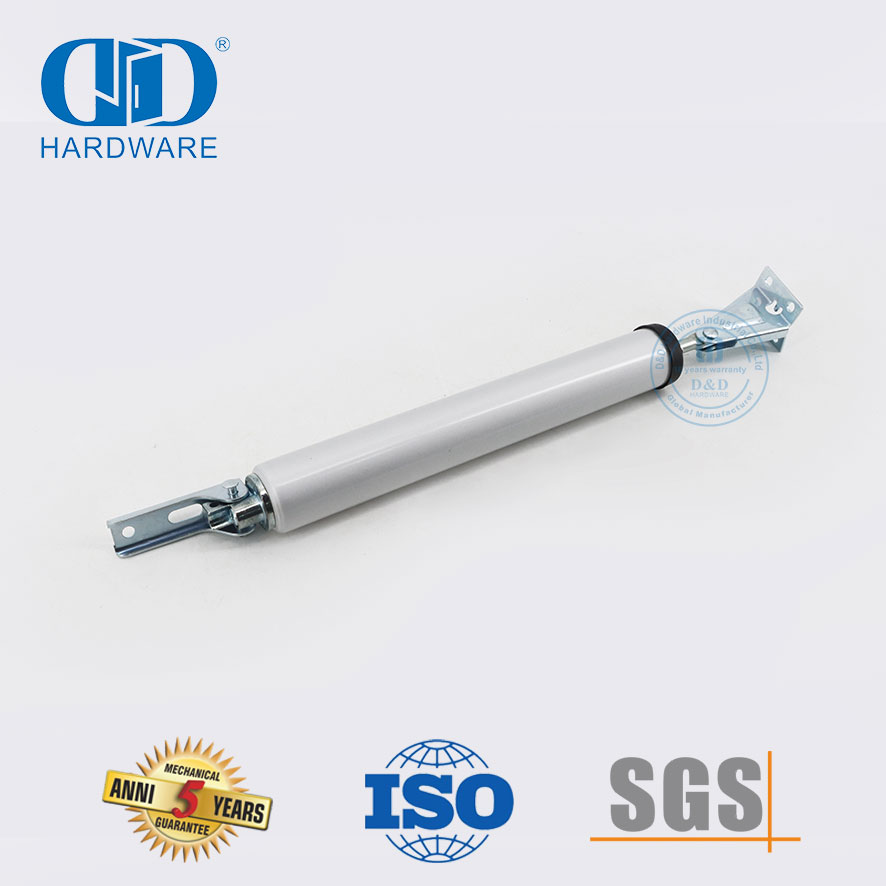

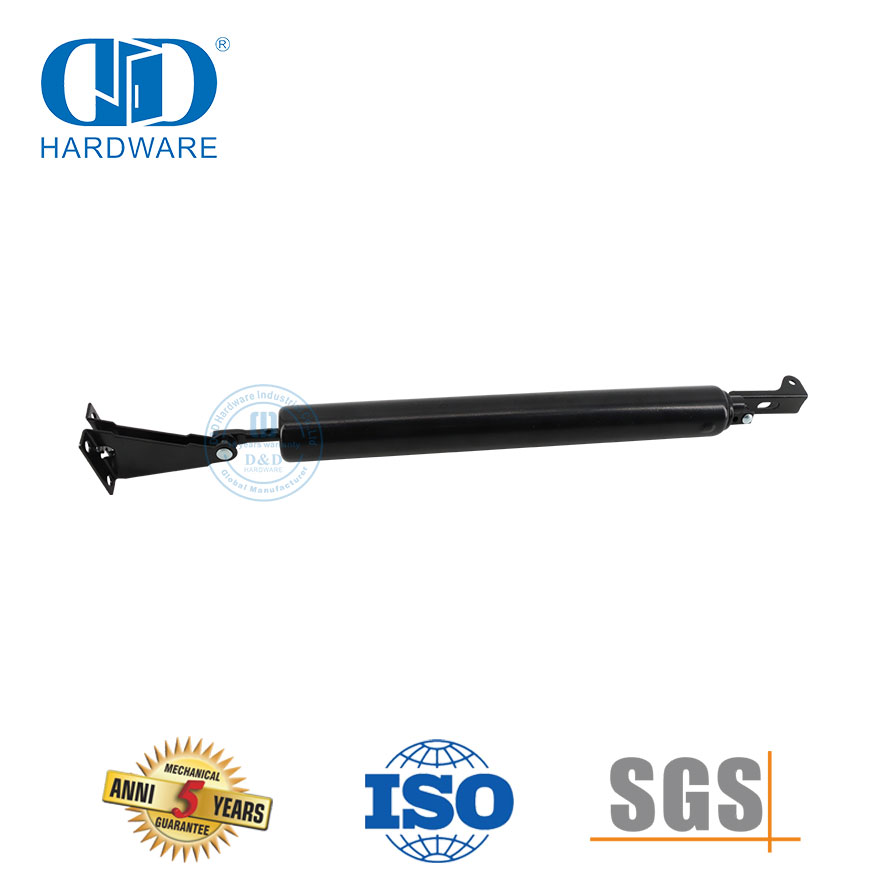

Pneumatic door closers use air pressure instead of hydraulic fluid and are often found on lighter doors like screen doors. They usually have a single adjustment mechanism.
Look for your door closer's brand and model number, which are typically stamped on the body. Common manufacturers include LCN, Norton, Falcon, and Yale. This information will help you locate specific adjustment instructions if needed.
Gathering the right tools before you start will make the process much smoother:
· Screwdriver set (both flathead and Phillips head)
· Allen wrench set (also called hex keys)
· Adjustable wrench
· Flashlight or headlamp for better visibility
· Tape measure (optional, for measuring door swing)
Most door closer adjustments only require a screwdriver or Allen wrench, but having a complete set ensures you're prepared for any situation.
Find the adjustment screws on your door closer body. Most hydraulic closers have two main adjustment points:
· Sweep speed valve: Controls how fast the door closes from fully open to about 15 degrees from closed
· Latch speed valve: Controls the final closing speed from 15 degrees to fully closed
These screws are usually labeled with "S" for sweep and "L" for latch, though some manufacturers use different markings. Check your closer's documentation for specific labels.
Open the door fully and let it close naturally. Pay attention to both the initial closing speed and the final latching speed. Note whether the door closes too quickly, too slowly, or inconsistently.
A properly adjusted door should close at a moderate, controlled pace throughout its swing, with perhaps a slightly slower latch speed to prevent slamming.
Start with small adjustments—typically no more than a quarter turn at a time. Remember that these adjustments are sensitive, and small changes can have significant effects.
To slow down the door: Turn the adjustment screw clockwise (righty-tighty)
To speed up the door: Turn the adjustment screw counterclockwise (lefty-loosey)
If your door is closing too quickly overall, start by adjusting the sweep speed screw. If it's closing well but slamming at the end, focus on the latch speed screw.
After each adjustment, test the door's closing speed. Open it fully and observe the entire closing cycle. This testing phase is crucial because door closer adjustments can be quite sensitive.
Make additional quarter-turn adjustments as needed. Most doors require several rounds of adjustment and testing to achieve the perfect speed.
Test the door multiple times from different opening angles. A well-adjusted door closer should perform consistently whether the door is opened 45 degrees or 180 degrees.
Also test the door's performance throughout the day, as temperature changes can slightly affect hydraulic door closers.
Door won't stay open: If your door closer has a hold-open feature, check that it's properly engaged. Some closers have a separate hold-open adjustment screw.
Door closes too slowly in cold weather: Hydraulic fluid thickens in cold temperatures. You may need to make seasonal adjustments, speeding up the closer slightly for winter months.
Inconsistent closing speed: This often indicates low hydraulic fluid or worn internal components. While you can sometimes add fluid through a fill plug, this repair usually requires professional attention.
Door bounces when closing: This typically means the latch speed is set too fast. Slow down the latch speed adjustment until the bouncing stops.
Regular maintenance keeps your door closer operating smoothly and extends its lifespan. Clean the closer body monthly with a damp cloth, removing dirt and debris that could interfere with operation.
Check the mounting screws periodically to ensure they remain tight. Loose mounting can cause erratic door behavior and premature wear.
Most hydraulic door closers will need professional servicing every 3-5 years, depending on usage frequency and environmental conditions.
While basic speed adjustments are straightforward, some situations require professional expertise. Call a door hardware specialist if:
· The closer leaks hydraulic fluid
· Adjustment screws don't respond to changes
· The door closer makes unusual noises
· The closer fails to close the door completely
· Multiple attempts at adjustment don't resolve the problem
Professional technicians have specialized tools and replacement parts that aren't readily available to homeowners.
Properly adjusted door closers enhance both security and convenience while reducing wear on door hardware. Taking the time to fine-tune your door closer speed creates a better experience for everyone who uses the door.
Remember that seasonal changes may require minor readjustments, so don't hesitate to make small tweaks as needed. With these techniques in your toolkit, you can keep your doors closing smoothly year-round.
If you're still experiencing issues after following these steps, consider consulting with a professional door hardware technician who can assess whether your closer needs repair or replacement.
