A door that slams shut with a bang or one that lingers open can be more than just a minor annoyance; it can be a safety hazard, an energy drain, and a security risk. The device responsible for controlling this movement is the door closer. Over time, the tension on these mechanisms can weaken or become too tight, requiring a simple adjustment to restore proper function.
Learning how to adjust door closer tension is a straightforward skill that can save you the cost of a professional call-out. This guide will walk you through the entire process, from understanding the different types of closers to making precise adjustments for a perfectly swinging door. We'll cover the tools you'll need, the steps to follow, and the common issues you might encounter.
Before you start turning screws, it’s important to identify the type of door closer you have and understand its basic components. While designs vary, most hydraulic door closers share a similar structure.

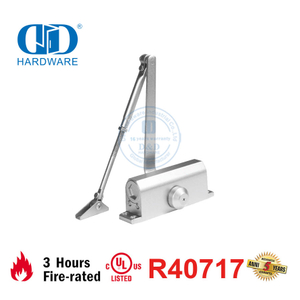

The main body of the closer is a metal casing that houses a spring and hydraulic fluid. An arm assembly connects this body to the door and frame. On the body, you'll find a set of adjustment valves, which are small screws that control the flow of hydraulic fluid between chambers inside the closer. This fluid regulation is what dictates the door's closing speed and force.
Most standard surface-mounted door closers have at least two main adjustment screws, and sometimes more, depending on the model's features. These are typically labeled or identifiable by njihov položaj.
· Sweep Speed (or Closing Speed): This valve controls the speed of the door for the majority of its closing arc, from the fully open position until the last few inches before it latches.
· Latching Speed: This valve manages the speed of the final few inches of travel. Adjusting it ensures the door closes firmly enough to engage the latch without slamming.
· Backcheck (Optional): Some closers have a backcheck valve. This feature adds resistance when the door is opened forcefully, preventing it from slamming into an adjacent wall.
· Delayed Action (Optional): Found on more advanced models, this valve keeps the door open for a longer period before it begins to close, which is useful for accessibility.
The most crucial adjustment for overall closing force, however, is the spring tension. This is often adjusted separately from the speed valves.
Adjusting a door closer doesn't require an extensive toolkit. For most models, you'll only need a few basic items.
· Ladder or Step Stool: Most door closers are mounted at the top of the door.
· Screwdriver Set: A flathead and a Phillips head screwdriver will usually suffice.
· Hex Key / Allen Wrench Set: Some models use hex screws for their valves.
· Safety Goggles: It's always a good idea to protect your eyes when working overhead.
Before you begin, ensure the area is clear. If you're working on a door in a high-traffic area, place a sign to let people know the door is temporarily out of service. Make sure your ladder is stable and placed on level ground.
The spring inside the door closer provides the power to pull the door shut. If your door is not closing completely or is very difficult to open, you likely need to adjust this spring tension. The method for this adjustment can vary significantly between models.
This is one of the most common designs for adjusting spring tension.
1.Locate the Adjustment Nut: Look at the end of the door closer body, opposite the arm assembly. You should see a large hex nut. This is the spring tension adjustment nut. Some models may have this nut on the side of the closer body.
2.Turn to Increase Tension: To increase the closing force (making the door close with more power), use a wrench or screwdriver to turn the nut clockwise. This compresses the internal spring.
3.Turn to Decrease Tension: To decrease the force (making the door easier to open), turn the nut counter-clockwise. This relieves pressure on the spring.
4.Test the Door: After making a small adjustment (a half-turn is a good starting point), test the door by opening and closing it several times. Observe how it feels to open and how reliably it closes. Repeat the adjustment until you are satisfied.
Some older or specific models require you to detach the entire door closer body to adjust the tension.
1.Remove the Main Arm: First, you'll need to remove the main arm from the closer's pinion shaft. This usually involves removing a nut or screw at the joint where the arm connects to the closer body.
2.Rotate the Closer Body: With the arm detached, you can now rotate the entire closer body. Rotating it toward the door hinges will typically increase tension, while rotating it away will decrease tension.
3.Reattach the Arm: Once you have rotated the body to the desired position, reattach the arm to the pinion shaft.
4.Test and Repeat: Test the door and repeat the process if necessary. This method is more labor-intensive and less common on modern closers.
Important Note: Never completely remove the spring tension adjustment nut. Doing so could cause the spring to decompress violently, posing a serious safety risk.
Once the spring tension is set correctly, you can fine-tune the door's movement using the hydraulic speed valves. Remember, small adjustments go a long way. Turning a valve even a quarter of a turn can have a significant effect.
1.Identify the Valves: Locate the sweep and latching speed valves on the side or face of the door closer. They are often labeled with "S" and "L" or indicated with diagrams.
2.Adjust the Sweep Speed: To slow the door's main closing motion, turn the sweep valve clockwise. To speed it up, turn it counter-clockwise. Make a small adjustment (about 1/8th of a turn) and test the door.
3.Adjust the Latching Speed: To adjust the final few inches of movement, use the latching speed valve. Turning it clockwise will slow the latch, while turning it counter-clockwise will make it latch faster and more firmly. A properly adjusted door will click securely into the frame without slamming.
4.Adjust the Backcheck (if available): Open the door forcefully to test the backcheck. If it slams against the wall, turn the backcheck valve ("BC") clockwise to increase resistance. If the door is too hard to open fully, turn it counter-clockwise.
Pro-Tip: Adjust one valve at a time. This helps you isolate the effect of each change and avoid confusion.
· Door Slams Shut: This usually means the hydraulic fluid is not providing enough resistance. Try turning both the sweep and latching valves clockwise to slow the door down. If this doesn't work, the closer may be leaking fluid and needs replacement.
· Door Doesn't Latch: The door closes most of the way but stops just short of latching. This means the spring tension might be too low, or the latching speed is too slow. First, try increasing the latching speed by turning the "L" valve counter-clockwise. If that fails, you may need to increase the spring tension.
· Visible Oil Leak: If you see oil dripping from the door closer body or staining the door, the internal seals have failed. An adjustment won't fix this. The entire unit needs to be replaced.
· Grinding or Scraping Noises: This could indicate a problem with the arm or a worn-out internal component. Check that all screws on the arm are tight. If the noise persists, the closer may be nearing the end of its life.
A well-adjusted door closer operates so smoothly that you barely notice it's there. It provides security, safety, and energy efficiency, all with a gentle, controlled swing. By following the steps outlined in this guide, you can confidently adjust your door closer tension and speed, ensuring your door functions perfectly. This simple maintenance task not only enhances the usability of your space but also extends the life of your hardware, saving you time and money.
If you find that your door closer is leaking fluid or still won't function correctly after several adjustments, it's likely time for a replacement. But for most common issues, a few careful turns of a screw are all it takes to get things back in working order.
