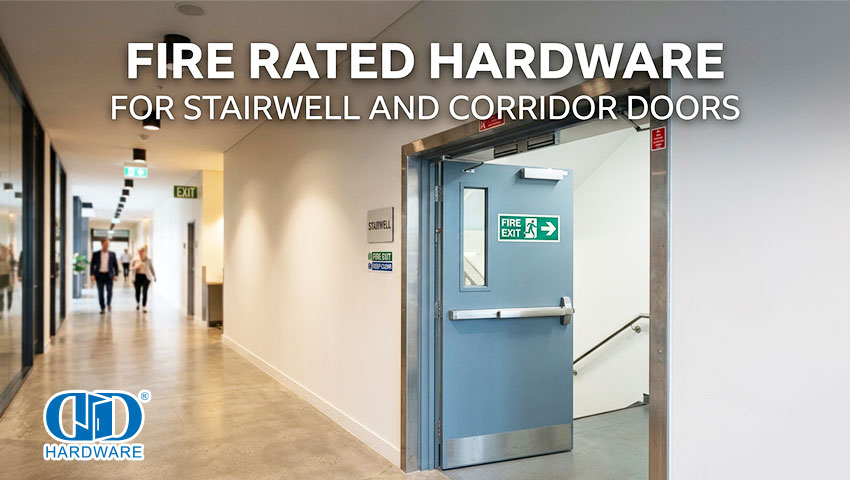

Fire Rated Hardware for Stairwell and Corridor Doors

Fire Rated Hardware for Stairwell and Corridor Doors

A Practical Configuration Guide for Commercial Building Life Safety Systems

Introduction

In commercial buildings, stairwells and corridors are not just circulation spaces—they are critical life safety routes used during emergencies. While fire-rated doors are designed to prevent the spread of fire and smoke, their performance depends heavily on the hardware system installed on them.

For door manufacturers, hardware suppliers, contractors, and project consultants, selecting the right fire rated hardware for stairwell and corridor doors is essential for ensuring:

• •Compliance with international fire safety standards

• •Reliable performance under high-frequency use

• •Safe and efficient evacuation during emergencies

This guide provides a practical, project-based approach to selecting and configuring fire-rated door hardware systems for these high-risk building zones.

Why Stairwell and Corridor Doors Require Special Attention

Unlike standard doors, stairwell and corridor doors must operate under two demanding conditions:

1. Continuous Daily Use

• ✔High opening and closing frequency

• ✔Exposure to misuse (doors being held open)

• ✔Long-term wear and alignment challenges

2. Emergency Performance Requirements

• ✔Must close automatically every time

• ✔Must latch securely under fire conditions

• ✔Must allow immediate and intuitive egress

This dual requirement makes it essential to use heavy-duty, certified, and system-compatible hardware solutions.

Fire Door Hardware Is a System, Not Individual Products

A common mistake in commercial projects is selecting hardware components separately without considering system compatibility.

For stairwell and corridor doors, the correct approach is to define a complete fire-rated hardware configuration, including:

• ♢Fire-rated hinges (structural stability)

• ♢Door closers (automatic closing)

• ♢Locks and latches (secure positioning)

• ♢Panic or exit devices (emergency egress)

• ♢Fire and smoke seals (compartment protection)

Only a fully coordinated system can ensure proper performance during both daily operation and fire emergencies.

Application-Based Hardware Configuration (Real Project Scenarios)

Stairwell Doors (Primary Escape Routes)

Stairwell doors are the most critical fire doors in any building.

Recommended configuration:

• •Heavy-duty fire-rated hinges

• BS EN1935 (200,000 cycles)

• UL 10C fire rated up to 3 hours

• •Fire-rated door closers

• BS EN1154 (500,000 cycles)

• Adjustable closing speed and backcheck

• •Fire exit or panic hardware

• EN1125 / UL305 certified

• •Smoke seals for airtight protection

Key objective:

Ensure automatic closure, secure latching, and reliable evacuation.

Heavy-duty fire-rated hinges

Fire-rated door closers

Fire exit or panic hardware

Smoke seals for airtight protection

Corridor Fire Doors (Horizontal Fire Separation)

Corridor doors divide buildings into fire compartments and guide evacuation.

Recommended configuration:

• •Fire-rated hinges (EN1935 / UL certified)

• •Smooth-operating door closers

• •Mechanical locks (EN12209 compliant)

• •Acoustic and smoke seals

Key objective:

Balance daily usability (quiet operation) with fire safety performance.

Fire-rated hinges

Smooth-operating door closers

Mechanical locks

Acoustic and smoke seals

Cross-Corridor Doors (Large Commercial Buildings)

Common in hospitals, airports, and shopping centers.

Recommended configuration:

• •Heavy-duty hinges for large doors

• •Controlled door closers

• •Fire-rated hold-open solutions (where permitted)

• •Full sealing systems

Key objective:

Allow flexibility in daily operation while ensuring automatic closure during fire events.

Certification Requirements for Commercial Projects

Fire-rated hardware must comply with recognized international standards to ensure project approval:

European Standards (CE System)

• •EN1935 – Hinges

• •EN1154 – Door closers

• •EN12209 – Locks

• •EN1634 – Fire resistance

• •EN1670 – Corrosion resistance

North American Standards

• •UL 10C – Fire-rated door assemblies

• •UL 305 – Panic hardware

• •ANSI/BHMA Grade 1 – Heavy-duty performance

Using certified hardware simplifies:

• •Inspection and approval processes

• •Project documentation

• •International project compatibility

Common Problems in Real Projects

Even with certified products, improper application can lead to failure:

• •Using non-fire-rated or mismatched hardware

• •Incorrect closer adjustment (doors not fully closing)

• •Doors being held open or disabled

• •Poor hinge selection leading to door misalignment

• •Missing or damaged fire/smoke seals

These issues can result in:

• •Failed inspections

• •Safety risks

• •Increased maintenance costs

Best Practices for B2B Project Execution

For door manufacturers and contractors, the following strategies improve project success:

• •Use pre-configured fire door hardware solutions

• •Ensure all components are certified and compatible

• •Standardize configurations across similar building zones

• •Conduct mock-up testing before installation

• •Implement regular inspection and maintenance schedules

FAQ – Fire Rated Hardware for Stairwell and Corridor Doors

1. What is the most important hardware component for stairwell fire doors?

The most critical component is the fire-rated door closer, as it ensures the door automatically returns to a closed position. Without proper closing, the fire door cannot perform its function.

2. Can I use standard hinges on fire-rated doors?

No. Only certified fire-rated hinges tested under standards such as EN1935 or UL 10C should be used. Standard hinges may fail under fire conditions.

3. Why do corridor fire doors need acoustic and smoke seals?

Corridor doors often serve occupied areas such as offices or hotels. Acoustic seals improve comfort, while smoke seals prevent early smoke spread, which is a major cause of fatalities in fires.

4. What certifications should I look for in fire door hardware?

For international projects, the most recognized certifications include:

• •EN standards (EN1935, EN1154, EN12209, EN1634)

• •UL 10C for fire resistance

• •UL 305 for panic hardware

• •ANSI/BHMA Grade 1 for durability

5. Why is system compatibility important?

Fire-rated doors are tested as complete assemblies. Mixing incompatible hardware components can compromise performance and lead to inspection failure.

6. How can I reduce installation and maintenance issues?

The best approach is to use pre-engineered hardware configurations and ensure proper installation and adjustment, especially for door closers and hinges.

Fire-rated hardware for stairwell and corridor doors is a core component of building life safety systems. These doors must function reliably every day and perform flawlessly during emergencies.

For door manufacturers, hardware brands, and contractors, the key to success lies in adopting a system-based, application-driven approach:

• •Select certified components

• •Configure hardware based on real building scenarios

• •Ensure compatibility across the entire door assembly

In modern commercial construction, fire door hardware is not just a specification—it is a critical safety system that protects lives and ensures compliance.
