The modern home aesthetic is defined by clean lines and minimalism. We want sleek surfaces, uncluttered spaces, and hardware that disappears into the background. This desire for visual simplicity has driven the popularity of concealed hinges—hardware that remains completely hidden when a door is closed.
However, achieving this high-end look often hits a snag when budget realities come into play. Many modern homes are fitted with hollow core doors to save on cost and weight. If you are renovating a bedroom and hoping to upgrade your hardware without replacing the doors, you might be asking a critical question: Can you actually install hidden hinges on a standard hollow core door?
The short answer is yes, but it requires careful measurement and a specific set of conditions. It isn’t as straightforward as swapping out a standard butt hinge. If you get it wrong, you risk ruining the door entirely. This guide explores the mechanics of hollow core doors, the requirements of hidden hardware, and how to determine if your project is viable.
To understand why this installation is tricky, you first need to understand what is happening inside your door.
Despite the name, a hollow core door isn't completely empty. It is constructed like a sandwich. The outer layers are thin skins made of plywood, MDF, or molded composite. The center is usually filled with a honeycomb cardboard structure to provide rigidity without adding weight.
The most important part for our purposes is the frame. Running along the perimeter of the door is a solid material, usually pine or a composite wood block. This is known as the stile.
When you install traditional hinges, the screws go into the edge of this stile. On a standard hollow door, the solid wood stile might only be about one inch deep. Beyond that inch, you hit the honeycomb void. This limited amount of solid material is the primary obstacle when trying to install concealed hinges.

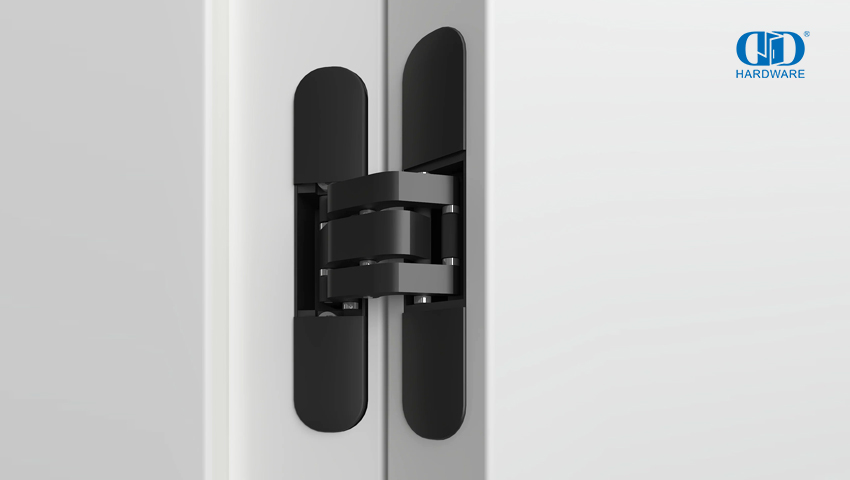

Architectural concealed hinges (often referred to as invisible hinges or Soss hinges) function differently than the standard hinges you see on most residential doors.
Standard butt hinges are surface-mounted or shallowly mortised into the edge of the door. The mechanism (the barrel) sits outside the door gap. In contrast, invisible hinges consist of a series of plates and links that fold into themselves inside the door and the frame.
To make this mechanism disappear, you have to carve out a significant pocket of wood from the door's edge. This process is called a deep mortise. The hinge body needs to sit inside the door, often requiring a depth of 1 to 1.5 inches, depending on the brand and size of the hinge.
Here lies the problem. If your concealed hinge requires a mortise depth of 1.5 inches, but your hollow core door only has a solid wood stile that is 1 inch deep, you will drill right through the solid wood and into the hollow void.
If this happens, the back of the hinge will be floating in empty space. More importantly, the screws used to secure the deep end of the hinge will have nothing to bite into. They will spin freely in the hollow center of the door. Without solid wood to anchor the screws, the hinge cannot support the weight of the door, and it will eventually sag or tear out completely.
D&D CE Concealed Hinge-BS EN1935 200,000 cycles test, EN1634 Fire Rated 132mins, EN1670 Corrosion Resistance 48 hours.
Before you buy expensive hardware, you need to perform some detective work on your bedroom door. You don't need to cut the door open to see what's inside; there are a few ways to gauge the depth of the solid stile.
If you bought the door recently or can find the brand stamp on the top edge, look up the technical specifications. Look for the "stile width" or "edge block width." You are looking for a stile that is wider than the hinge body you plan to use.
This is less scientific but often effective. Tap on the face of the door starting at the edge and moving inward. You should hear a solid thud near the edge and a hollow thwack as you move toward the center. Mark where the sound changes. This gives you a rough idea of where the solid wood ends.
This is the most accurate method but requires a tiny bit of damage. Drill a very small pilot hole into the edge of the door (where the hinge would go). Use a small drill bit and tape it off at the depth required for your hinge. As you drill, pay attention to the resistance. If the drill suddenly punches through and spins freely before you reach your tape marker, your solid block is too shallow.
If you discover your solid wood stile is too narrow for standard concealed hinges, is the project dead? Not necessarily, but it does become more complicated.
Hollow core doors are significantly lighter than solid wood doors. Because they don't weigh much, you may be able to get away with using smaller concealed hinges that require shallower mortises. Always check the weight rating on the hinge packaging. If a smaller hinge is rated for the weight of your door and fits within the solid block, you are good to go.
If you are handy with woodworking, you can retrofit the door. This involves cutting open the edge of the door, removing the honeycomb material, and gluing in a new, deeper block of solid wood. Once the glue dries, you sand it flush and refinish the edge. This gives you as much solid wood as you need to install any hinge. However, this is a labor-intensive process that might cost more in time and materials than simply buying a solid core door.
Some specialized concealed hinge manufacturers offer mounting plates or brackets designed for thin doors or hollow materials. These spread the load across the face of the door rather than relying solely on the edge screws. These are less common for residential bedroom doors but are worth investigating at specialty hardware suppliers.
Given the extra work required, you might wonder if it is worth the effort. Despite the installation challenges, hidden hardware offers distinct advantages for interior design.
Visual Continuity: Without the visual clutter of knuckles and pins, the door blends seamlessly into the wall. This is perfect for rooms with wallpaper or elaborate millwork where you don't want hardware breaking the pattern.
Modern Appeal: Nothing says "contemporary renovation" quite like invisible hardware. It instantly elevates the perceived value of the room.
Security: While less of a concern for a bedroom, hidden hinges cannot be tampered with when the door is closed, as there is no exposed pin to pop out.
1
If you have confirmed your hollow door has enough solid wood to support the hinge, follow these tips for a smooth installation.
Use a Routing Jig
Freehand routing for concealed hinges is incredibly difficult. Because the tolerances are so tight, even a slight wobble can ruin the fit. Rent or buy a routing template (jig) specifically made for the brand of hinge you are installing. This ensures a perfect, snug mortise every time.
Mind the Gap
Hidden hinges often have specific requirements for the gap between the door and the frame. Because the door pivots differently than it does on a butt hinge, you need to ensure there is enough clearance so the door doesn't bind against the jamb when opening.
Don't Overtighten
When screwing into the softwood frame of a hollow core door, be gentle. It is easy to strip the screw holes. Set your drill torque to low or drive the final turns by hand.
Upgrading a hollow bedroom door with high-end hardware is a balancing act between aesthetics and structural integrity. While it is entirely possible to install concealed hinges on these lightweight doors, it is not a universal guarantee.
The success of your project hinges (pun intended) on the internal construction of your specific door. Take the time to measure the solid stile depth. If the wood is there, the result can be a stunning, sleek entrance that defies the budget-friendly nature of the door itself. If the wood isn't there, it might be time to consider upgrading to solid core doors that can handle the hardware you truly want.
