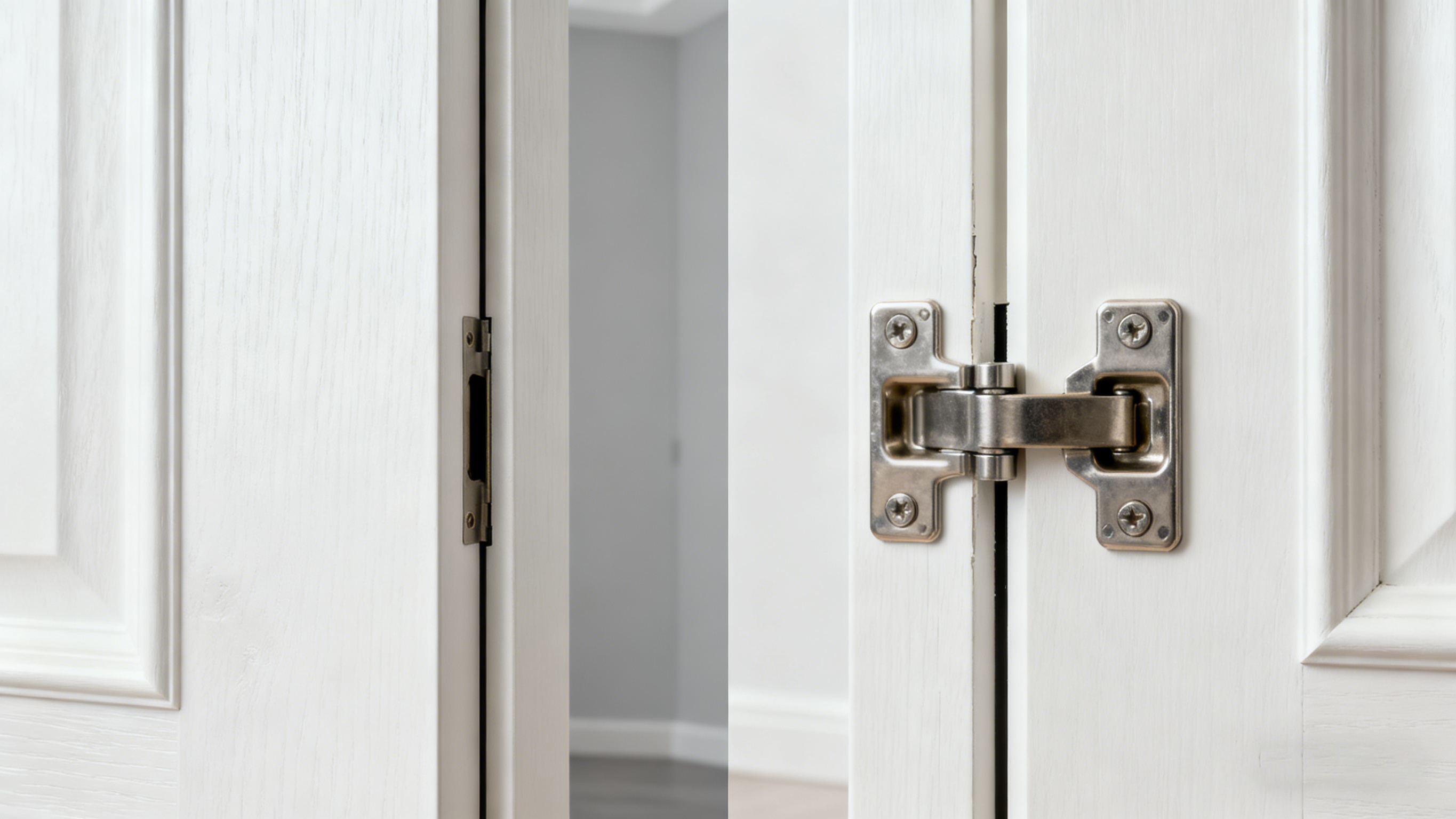

Concealed door hinges, also known as European or invisible hinges, are a hallmark of modern, high-end cabinetry and furniture. Unlike traditional hinges, they are completely hidden from view when the door is closed, creating a seamless and clean look. This sophisticated appearance can elevate the design of any kitchen, bathroom, or custom furniture piece.
Installing concealed door hinges might seem intimidating at first, especially given the precision required. However, with the right tools and a clear, step-by-step approach, it's a project that any determined DIYer can successfully tackle. This guide will walk you through the entire process, from gathering your materials to making the final adjustments, ensuring your doors hang perfectly and operate smoothly. By following these instructions, you'll gain the confidence to install these modern fixtures yourself, saving money and achieving a professional-quality finish.
Before we get into the installation process, it's helpful to understand what makes concealed door hinges unique. These hinges consist of two main parts: the hinge cup, which is installed into a recess on the back of the door, and the mounting plate, which attaches to the cabinet frame or wall. When the door is closed, the hinge arm folds into itself, tucking away neatly inside the cabinet.
There are several types of concealed hinges, designed for different door overlays and applications:
· Full Overlay: This is the most common type, where the cabinet door completely covers the front edge of the cabinet frame.
· Half Overlay: Used when two doors share a single partition wall, this hinge allows each door to cover half of the frame.
· Inset: For this style, the door sits flush within the cabinet frame rather than on top of it, creating a sleek, integrated look.
Understanding the type of overlay your project requires is the first crucial step, as it determines which hinges you need to purchase.
Proper preparation is key to a smooth installation. Gather all your tools and materials before you begin to avoid interruptions.
· Drill or drill press
· 35mm Forstner bit (this is the standard size for the hinge cup)
· Combination square or hinge-marking jig
· Screwdriver (Phillips head)
· Tape measure
· Pencil
· Safety glasses
· Clamps (optional, but helpful for securing the door)
· Concealed door hinges (ensure you have the correct type for your overlay)
· Screws (usually included with the hinges)
· Scrap piece of wood for practice
Follow these steps carefully for a flawless installation. It's always a good idea to practice on a scrap piece of wood first to get comfortable with the process.
Precision is critical at this stage. Most cabinet doors will require at least two hinges, one near the top and one near the bottom. For taller or heavier doors (over 40 inches or 13 pounds), a third hinge in the center is recommended for added support.
1.Measure and Mark: Using your tape measure and pencil, mark the center point for each hinge. A standard placement is 3 to 4 inches from the top and bottom edges of the door.
2.Set the Backset: The backset is the distance from the edge of the door to the edge of the 35mm hole you will drill. This distance is typically 3mm to 6mm. Your hinge instructions will specify the exact backset required. Use a combination square or a specialized hinge jig to mark a straight line at the correct backset distance, intersecting with your center-point marks. This intersection is where you will drill.
This is the most critical step, where accuracy ensures your hinges fit perfectly. A Forstner bit is essential here because it drills a clean, flat-bottomed hole, which is necessary for the hinge cup to sit flush.
1.Set the Drill Depth: The standard depth for a hinge cup hole is around 12-13mm (or 1/2 inch). Your hinges will specify the exact depth. To avoid drilling through the door, set a depth stop on your drill or drill press. If you don't have one, carefully measure the depth on your Forstner bit and wrap a piece of masking tape around it to act as a visual guide.
2.Drill the Hole: Align the center point of the Forstner bit with the mark you made in the previous step. Keep the drill perfectly perpendicular to the door's surface to ensure the hole is straight. Drill slowly and steadily until you reach the correct depth. Clean out any wood shavings from the hole.
3.Test the Fit: Place the hinge cup into the hole to ensure it sits flush with the surface of the door. If it protrudes, you may need to drill a little deeper.
With the cup holes drilled, you can now secure the hinges to the door.
1.Insert the Hinge: Place the hinge cup into the hole.
2.Align and Secure: Make sure the hinge arm is perpendicular to the edge of the door. Use a square to check the alignment. Once it's straight, use your drill or a screwdriver to fasten the hinge with the provided screws. Be careful not to overtighten, as this can strip the wood.
Now it's time to transfer your measurements to the cabinet frame.
1.Determine Placement: The position of the mounting plate on the cabinet frame must correspond exactly to the hinge position on the door. You can measure down from the top and up from the bottom of the cabinet opening to match the hinge placements.
2.Mark Screw Holes: Hold the mounting plate in position and use a pencil to mark the screw holes. Many hinge kits come with templates to make this step easier.
3.Drill Pilot Holes: Drill small pilot holes for the screws. This prevents the wood from splitting when you drive the screws in.
4.Attach the Plates: Secure the mounting plates to the cabinet frame using the provided screws.
The final step is to connect the door to the cabinet. Most concealed door hinges are two-part systems that allow you to easily clip the hinge arm onto the mounting plate.
1.Attach the Door: Align the hinge arms with the mounting plates and press firmly until you hear a "click." This sound indicates the hinge is securely locked onto the plate.
2.Adjust the Hinges: One of the greatest advantages of concealed door hinges is their adjustability. Most have three screws that allow for fine-tuning:
3.
· Side-to-Side (Horizontal): This screw moves the door left or right, adjusting the gap between doors or between the door and the cabinet frame.
· In-and-Out (Depth): This screw moves the door closer to or further from the cabinet frame, ensuring it's flush when closed.
· Up-and-Down (Vertical): This screw allows for vertical adjustments, which is useful for aligning the top and bottom edges of the door with the cabinet.
Take your time with these adjustments until the door is perfectly aligned, with even gaps all around.
Installing concealed door hinges is a rewarding project that can dramatically improve the look and feel of your cabinetry. While it requires patience and precision, breaking the process down into manageable steps makes it achievable for anyone. By following this guide, you can confidently give your doors a clean, modern finish that reflects quality craftsmanship. So gather your tools, practice on a scrap piece, and get ready to transform your space.
