Whether you are repainting your front entryway, replacing old hardware, or moving large furniture, there comes a time when every homeowner needs to know how to take a door off its hinges. While interior doors are often lightweight and simple to manage, dealing with exterior door hinges requires a bit more preparation and know-how due to their weight and security features.
Removing a door might seem like a two-person job reserved for contractors, but with the right tools and a clear process, it is a manageable DIY project. This guide walks you through everything you need to know about removing exterior door hinges safely and efficiently, ensuring your door—and your fingers—remain intact.
Before you start hammering away at the pins, gather the necessary tools. Having everything within arm's reach will make the process much smoother.
Hammer: Essential for tapping out the hinge pins.
Nail Set or Punch: Used to push the pin up from the bottom. If you don't have one, a large nail or a small screwdriver can work in a pinch.
Flathead Screwdriver: Useful for prying up the head of the pin once it is loose.
Utility Knife: To score paint if the hinges have been painted over.
Pry Bar or Wood Shims: These help support the weight of the door so it doesn't bind against the hinge while you are working.
Lubricant (WD-40): Helpful if the pins are rusted or stuck.
Safety Gear: Protective eyewear is always recommended when working with metal tools.

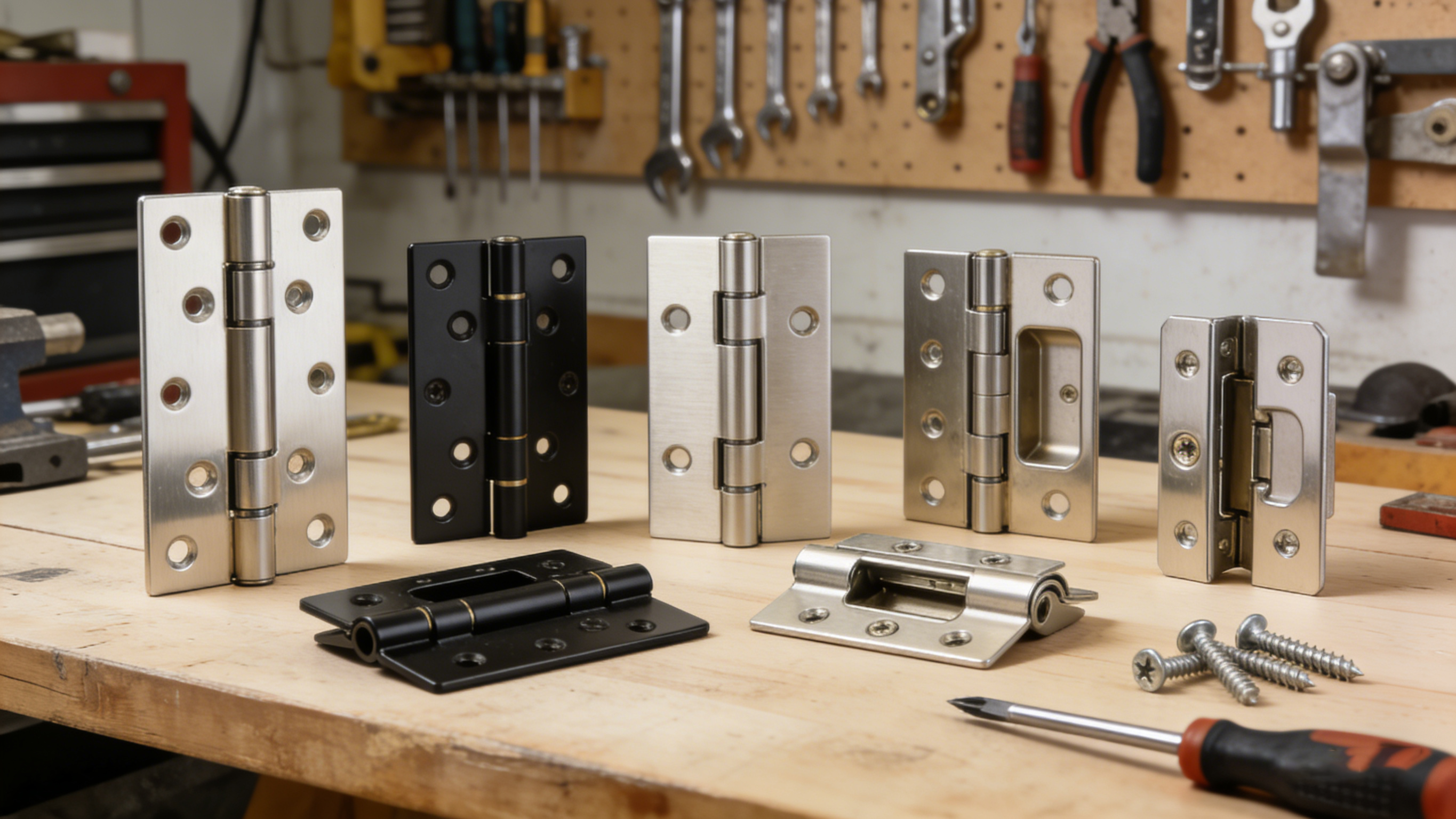

Before attempting removal, it helps to identify what kind of hinge you are working with, as this dictates the removal method.

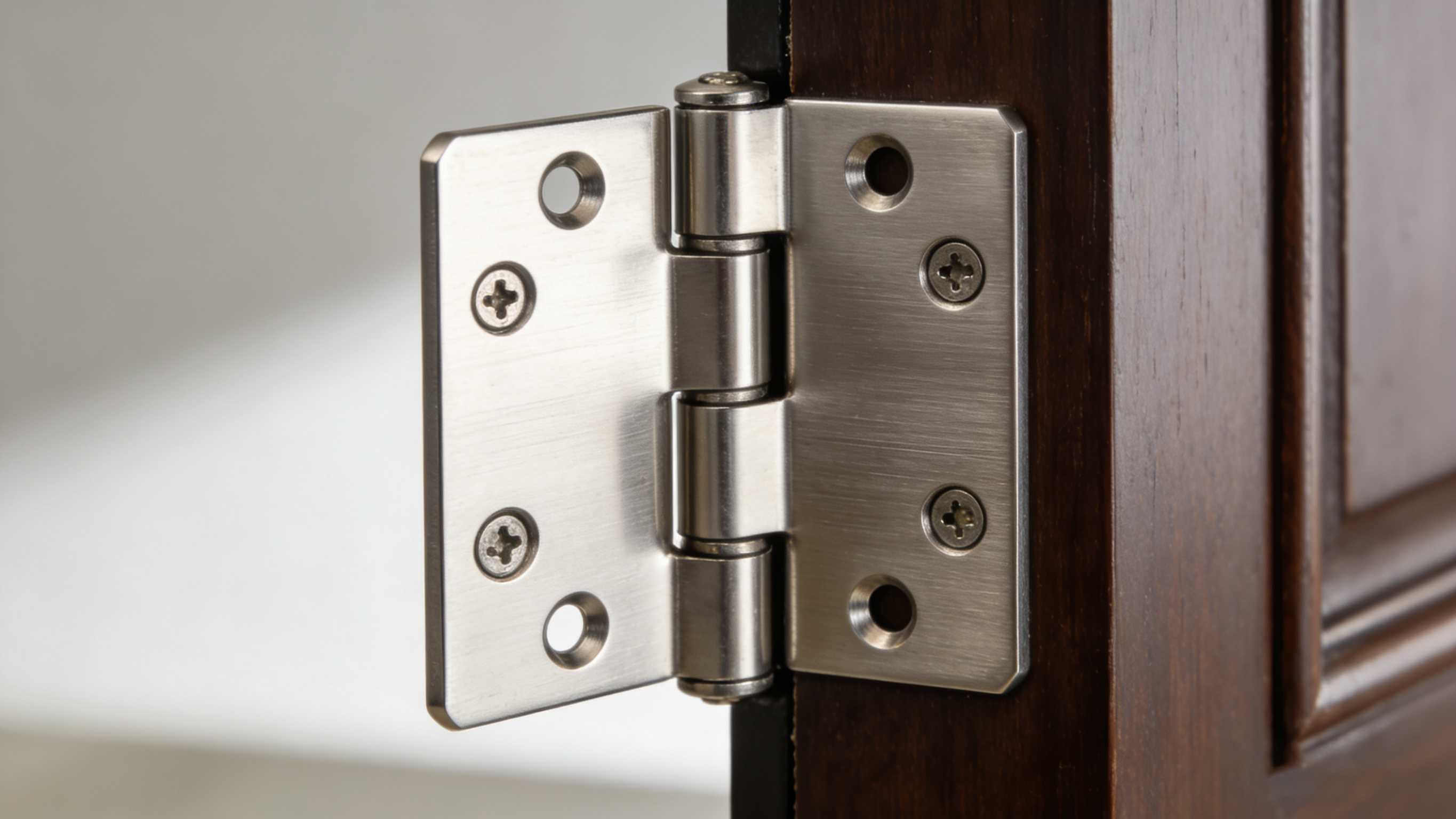

These are the most common hinges found on residential doors. They consist of two metal plates (leaves) joined by a central pin. One leaf is attached to the door, and the other to the frame. The pin is the key to separating them.
Because exterior doors need to be secure, many feature security hinges. These often have a non-removable pin (NRP) or a set screw that locks the pin in place. If your door opens outward, you likely have these to prevent intruders from simply popping the pins out to gain entry.
Often found on garage entry doors or fire-rated doors, these have a spring mechanism inside the cylinder to self-close the door. These require extreme caution, as the spring is under tension.
If your hinges have visible pins and no security screws, follow these steps.
Start with the door in the closed position. This keeps the door stable while you work. Place wood shims or a small pry bar under the bottom edge of the door. This relieves the downward pressure on the hinges, making the pins much easier to slide out.
If your hinges have been painted over, the pin might be stuck to the barrel. Take your utility knife and carefully score the seam between the top of the pin and the hinge knuckle. This prevents the paint from chipping or peeling when the pin starts to move.
Starting with the bottom hinge and working your way up is generally the safest method.
Place your nail set or punch against the bottom of the hinge pin.
Tap the nail set firmly with your hammer. You should see the pin start to rise.
Once the head of the pin is raised enough, use a flathead screwdriver or the claw of your hammer to pry it upward and remove it completely.
Once all pins are removed, the door is effectively disconnected, but it is still sitting in the frame. Open the door slightly. Because you shimmed the bottom, it shouldn't fall, but you should have a helper ready to catch it. Grip the door by the handle and the side edge, and gently pull it away from the frame.
If you cannot pop the pin out easily, or if the door swings outward, you are likely dealing with security hinges.
Look closely at the barrel of the hinge.
Set Screw: Look for a tiny hole on the side of the hinge knuckle. Inside is a small screw that bites into the pin. You will need a small Allen wrench (hex key) to loosen this screw before the pin can be hammered out.
Non-Removable Pin (NRP): If there are no visible holes and the pin has no head to pry, it might be a crimped or welded pin. In this case, the pin cannot be removed. You must unscrew the hinge leaves from the door or the frame to remove the door.
Exterior door hinges are exposed to the elements, making them prone to rust and corrosion. If a pin won't budge:
Lubricate: Spray a penetrating oil like WD-40 generously into the top of the hinge and let it sit for 15-20 minutes.
Tap the Leaf: Gently tap the side of the hinge leaf to help break the rust seal.
Use More Force: If the nail set isn't working, try a center punch, which delivers more concentrated force.
Sometimes, removal is necessary because the hardware has failed. If you notice your door dragging, squeaking excessively despite lubrication, or showing visible rust that compromises the metal, it is time for a replacement.
When selecting replacements, consider upgrading to high-quality materials. Stainless steel hinges, for example, offer superior corrosion resistance and fire ratings. Companies like D&D Hardware specialize in manufacturing durable hinges, including UL 10C fire-rated and ANSI Grade 1 options, which are ideal for heavy exterior usage.
Yes, it is possible, but not recommended for heavy exterior solid-core doors. These can weigh over 100 pounds. If you must do it alone, ensure the door is properly supported with shims before removing the final pin to prevent it from toppling over.
It could be painted shut, rusted, or it might be a security hinge with a set screw. Check for a small hole on the side of the hinge barrel. If there is no hole and the pin is smooth on both ends, you likely have to unscrew the hinge plates from the door rather than removing the pin.
To prevent stuck pins in the future, lubricate your hinges once a year with silicone spray or white lithium grease. Avoid using standard WD-40 for long-term lubrication as it can attract dirt; use it only for cleaning or loosening stuck parts.
Removing exterior door hinges is a fundamental skill for home maintenance. Whether you are upgrading for aesthetics or necessity, understanding the mechanics of your door hardware ensures the job is done correctly.
Always remember that your exterior door is the first line of defense for your home. When re-hanging the door or choosing new hardware, ensure you are using screws long enough to bite into the wall stud, not just the door jamb, for maximum security. If you are in the market for robust, commercial-grade, or fire-rated hinges, exploring options from reputable manufacturers like D&D Hardware can ensure your entryway remains secure and functional for years to come.
