Few things ruin the sleek, modern aesthetic of a room faster than the sound of a door scraping against the floor. You installed hidden door hinges to achieve that clean, invisible look, but now the door is sticking, dragging, or refusing to close properly.

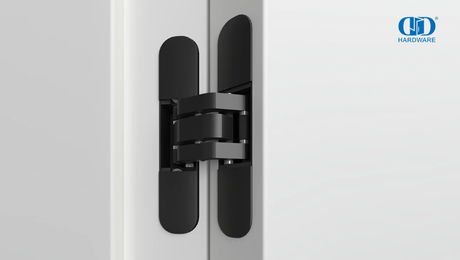

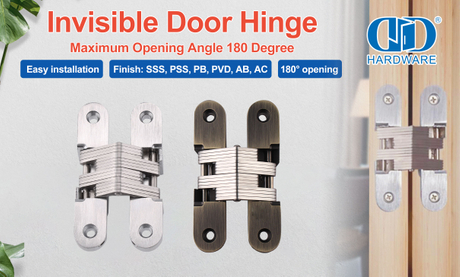

While invisible hardware offers a sophisticated finish, it can be intimidating to maintain. Unlike traditional butt hinges where the mechanism is exposed and obvious, hidden door hinges (often called invisible or concealed hinges) are tucked away inside the door and the jamb.
The good news is that fixing a misaligned door doesn't always require calling a carpenter. With the right tools and a bit of patience, you can get your door swinging freely again. This guide will walk you through diagnosing the problem, understanding the mechanics of your hardware, and performing the necessary adjustments.
Before grabbing your tools, it is helpful to understand why the door moved in the first place.
You might hear common excuses for a sticking door, such as a "settling foundation," "regular maintenance," or the vague idea that "it just happens over time." While houses do settle, that is rarely the primary culprit for a sudden sag in a door with adjustable hardware.
The root cause is often the design of the hinge itself.
Many adjustable hidden door hinges place the entire weight of the heavy door on small adjustment pins. These pins are significantly smaller than the knuckles of a standard hinge. Over time, the repeated stress of opening and closing the door wears these pins down or causes them to bend slightly.
The problem is simple physics: heavy weight on weak points leads to failure. The reason you need to adjust the hinge is likely because the internal mechanism has worn down, causing the door to drop. While you can adjust them back to the correct position, it helps to know that you are fighting against the nature of the hardware design.
To fix the door, you must first identify exactly where the friction is occurring. The door, the frame, and the hinges work as a unified system. Because the door is essentially a rectangle suspended inside another rectangle (the frame), a movement in one corner effects the opposite corner.
For example, if the top hinge loosens and the door leans to the right, the top right corner of the door may hit the jamb, while the bottom left corner drags on the floor.
The Floor: Is the bottom of the door scraping the floor covering? This usually indicates the door has dropped vertically.
The Top Jamb: Is the top of the door hitting the frame? This suggests the door has been pushed up too high or the frame has shifted.
The Lock Side: Is the vertical edge of the door hitting the frame before it closes? The door may be hanging too far horizontally away from the hinge side.
The Hinge Side: Is the door binding against the frame near the hinges? This is known as being "hinge bound."
Once you locate the sticking points, you can determine which direction the door needs to move.

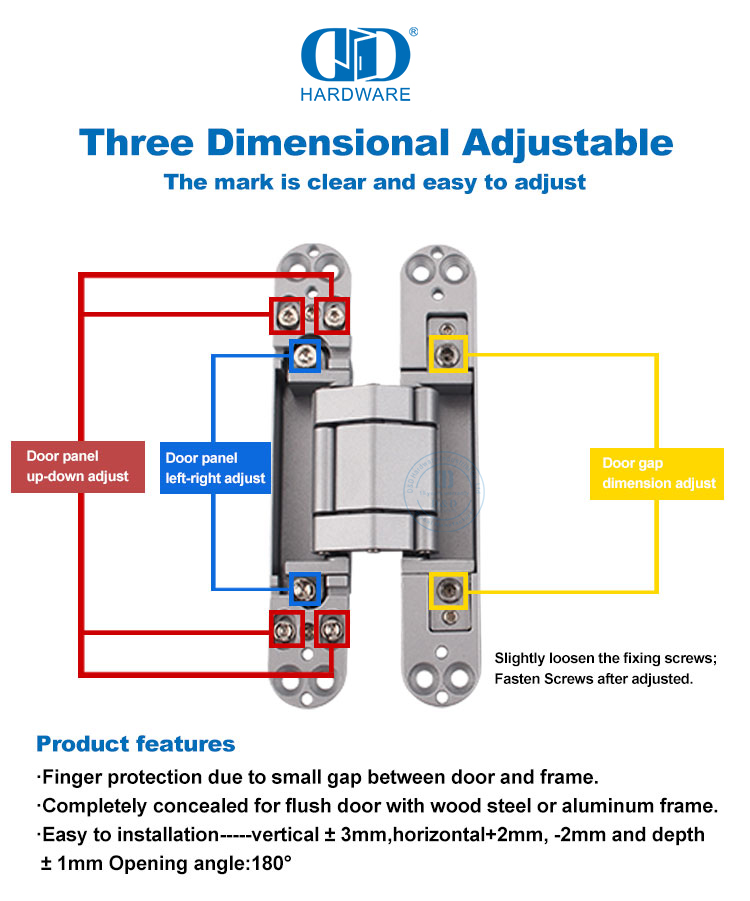

One of the primary benefits of hidden door hinges is that they are usually adjustable in three dimensions. This is often referred to as "3D adjustment."
Vertical (Height): This moves the door up and down. You will use this if your door is dragging on the floor or hitting the header.
Horizontal (Side-to-Side): This moves the door left or right. You will use this to adjust the gap between the door and the frame on the lock side or to fix hinge binding.
Depth (In and Out): This moves the door in toward the room or out toward the hallway. You use this if the door face isn't flush with the wall when closed, or if the door doesn't seal tight against the stop.
Before you begin, ensure you have the correct tools. Most hidden hinges require specific sizes of hex keys (Allen wrenches).
Metric Hex Key Set: Most high-end architectural hinges use metric sizes.
Small Flathead Screwdriver: Used for prying off the magnetic cover plates.
Plastic Shims (Optional): Helpful for supporting the door weight during vertical adjustments.
1
Follow this general procedure to adjust your hidden door hinges. Note: Specific screw locations vary by brand (SOSS, Tectus, Sugatsune, etc.), so consult the manufacturer's diagram if available.
Hidden hinges usually have aesthetic cover plates to hide the screws. These are often held on by magnetism or small friction clips. Carefully slide a fingernail or a small flathead screwdriver behind the plate to pop it off. Do this for all hinges on the door.
Once the cover is off, you will see several screws. Do not start turning them randomly.
Locking/Clamping Screws: These lock the hinge settings in place. You must loosen these slightly before making adjustments.
Adjustment Screws: These actually move the door.
If the door is dragging on the floor, this is your first step.
Support the door: If the door is heavy, slide a shim or wedge under it to take the weight off the hinges. This prevents the door from crashing down when you loosen the screws.
Loosen the locking screws: Check all hinges.
Turn the vertical adjustment screw: On many models, only one hinge (often the bottom or middle) controls the vertical height, while the others just follow. Turn the screw clockwise to raise the door and counter-clockwise to lower it.
Retighten: Once the height is correct, tighten all locking screws.
If the gap on the lock side is uneven, or the door is rubbing the side jamb.
Unlock the horizontal mechanism: Loosen the clamping screws on all hinges (usually two per hinge).
Turn the horizontal adjustment screws: Turn the screws to shift the door left or right.
Important: Adjust all hinges equally. If you adjust the top hinge to the right but leave the bottom hinge alone, the door will tilt, creating new problems.
Check the reveal: Close the door and look at the gap between the door and the frame. It should be uniform from top to bottom.
If the door rattles when closed or sticks out past the wall.
Loosen the depth locking screws: These are usually located deep inside the hinge body.
Adjust the depth: Gently move the door in or out until it is flush with the wall casing.
Lock it down: Retighten the screws securely.
1
You have followed the steps, the gap looks even, and the scraping sound is gone. However, it is important to manage your expectations.
As mentioned earlier, adjustable hinges often rely on materials and designs that degrade under stress. Because the weight rests on those adjustment pins, the metal fatigue that caused the sag in the first place is still present.
If you find yourself adjusting the same door every few months, the hinge mechanism may be failing. In this scenario, you essentially have a temporary fix. The adjustment gets the door functioning for now, but the "sag" will likely return as the pins continue to wear.
If the problem persists despite repeated adjustments, you may need to replace the hinges entirely or consult a professional to see if a heavy-duty, non-adjustable hinge option is available for your specific door preparation.
Adjusting hidden door hinges is a precise task, but it is manageable. By visualizing the door as a rectangle within a rectangle and identifying exactly where the friction is happening, you can systematically tweak the vertical, horizontal, and depth settings.
Just remember to loosen the locking screws before adjusting, support the door's weight, and make small turns. With a little effort, you can restore the silence and smooth operation of your modern doors.
