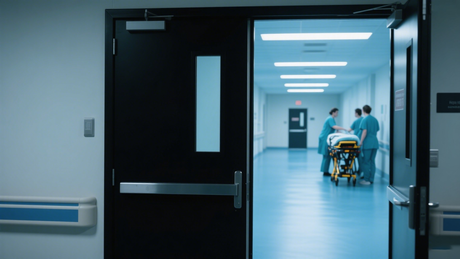

Panic bars are essential safety devices found on emergency exit doors in commercial buildings, schools, and public facilities. These horizontal bars allow people to quickly exit a building by simply pushing against the bar, making them crucial for emergency evacuation. However, there comes a time when you may need to disassemble a panic bar for maintenance, replacement, or repair purposes.
Taking apart a panic bar might seem intimidating at first, but with the right tools and knowledge, it's a manageable task. Whether you're a facility manager, maintenance professional, or building owner, understanding how to properly disassemble these devices can save you time and money while ensuring your building's safety systems remain in optimal condition.
This comprehensive guide will walk you through the entire process of dismantling a panic bar, from identifying the components to safely removing each part. You'll learn about the tools required, safety precautions to take, and troubleshooting tips for common challenges you might encounter during the process.
Before diving into the disassembly process, it's important to familiarize yourself with the main components of a panic bar system. A typical panic bar consists of several key parts that work together to provide secure yet easily accessible emergency exit functionality.
The push bar itself is the most visible component—the horizontal bar that people press to activate the locking mechanism. This bar is connected to the internal mechanism through a series of linkages and springs. The end caps, located on either side of the push bar, protect the internal components and provide a finished appearance.

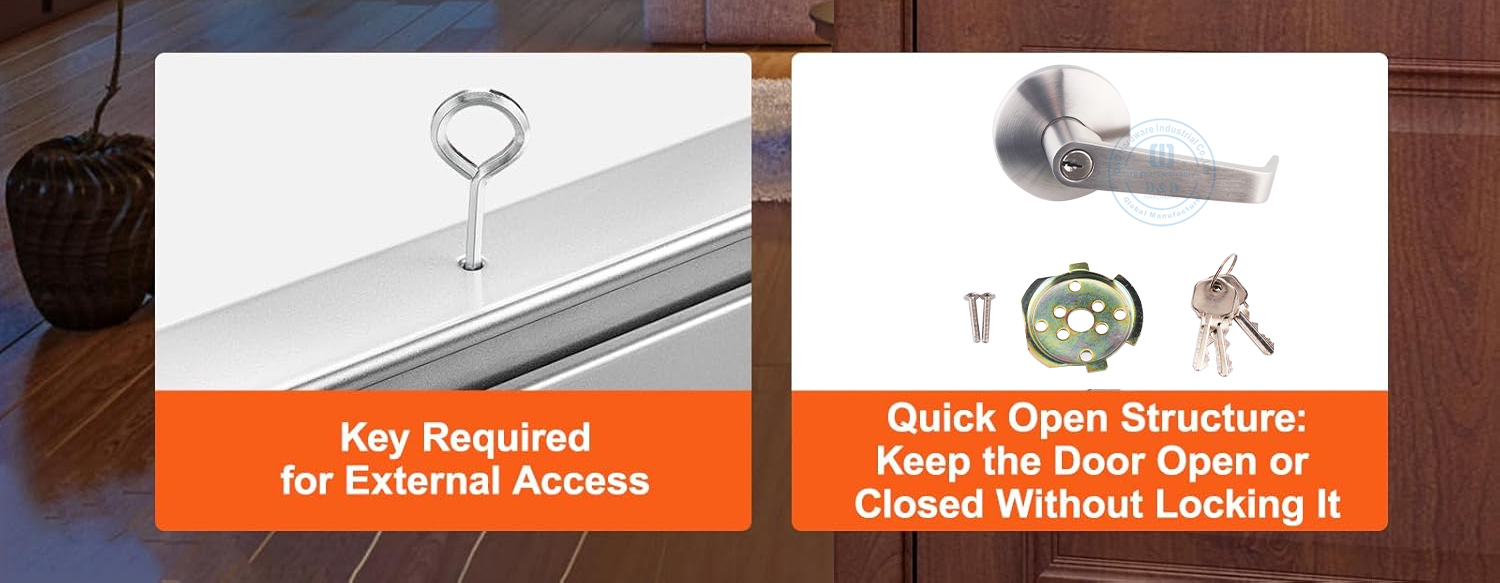

The key cylinder is another crucial component, typically located on the exterior side of the door. This allows authorized personnel to lock or unlock the panic bar from the outside using a key. The cylinder is secured by a retainer screw, which prevents unauthorized removal while allowing for legitimate maintenance access.
Additional components include the latch mechanism, mounting brackets, and various screws and bolts that secure the entire assembly to the door. Understanding these parts will help you approach the disassembly process with confidence and ensure you don't miss any important steps.
Proper preparation is crucial for successfully taking apart a panic bar. Having the right tools on hand will make the process smoother and help prevent damage to the components or the door itself.
You'll need a basic toolkit that includes both Phillips head and flathead screwdrivers in various sizes. Many panic bars use different screw types, so having a comprehensive screwdriver set is essential. Allen wrenches (hex keys) are also commonly required, particularly for cylinder retainer screws and mounting bolts.
Additional tools that may prove helpful include needle-nose pliers for handling small springs or clips, a flashlight or headlamp for better visibility in tight spaces, and a magnetic bowl or container to keep screws and small parts organized during disassembly.
Safety should always be your top priority when working on any door hardware. Ensure the door is properly supported and won't swing unexpectedly during the work. If possible, have someone assist you, especially when dealing with heavy panic bar assemblies. Wear safety glasses to protect your eyes from any springs or small parts that might pop out during disassembly.
The first step in taking apart a panic bar involves removing the end caps. These protective covers are typically located on both sides of the push bar and may be secured in different ways depending on the manufacturer and model.
Start by examining the end caps closely to determine how they're attached. Some end caps are held in place by small screws, which are usually located on the underside or back of the cap. Use the appropriate screwdriver to remove these screws, taking care not to drop them as they can be small and easy to lose.
Other end caps use a friction fit system, where they're simply pressed into place and held by tension. For these types, you'll need to carefully pry them off using a flathead screwdriver. Insert the screwdriver between the end cap and the push bar, then gently apply pressure to work the cap loose. Be patient with this process, as forcing the cap can cause damage to the finish or the cap itself.
Once you've removed the first end cap, repeat the process for the second cap. With both end caps removed, you should now have access to the internal components of the push bar mechanism.
With the end caps removed, your next step is to locate and remove the cylinder retainer screw. This screw secures the key cylinder in place and prevents it from being removed from the outside of the door.
The cylinder retainer screw is typically located inside the panic bar mechanism, accessible once the end caps are removed. It may be positioned at different locations depending on the specific panic bar model, but it's usually identifiable as a screw that appears to be holding the cylinder assembly in place.
Use the appropriate tool—often an Allen wrench or screwdriver—to carefully remove this screw. Turn it counterclockwise to loosen and remove it completely. Be sure to keep track of this screw, as it's essential for reassembly and can be difficult to replace if lost.
Some panic bars may have additional screws or clips that secure the cylinder assembly. Take note of their positions and remove them as necessary. If you're unsure about any particular screw or component, consult the manufacturer's documentation or take photos during disassembly to reference later.
Once the cylinder retainer screw is removed, you can proceed to remove the key cylinder itself. This component is typically accessible from the exterior side of the door, where the keyhole is visible.
From the outside of the door, you should now be able to push or pull the cylinder out of its housing. Some cylinders may slide out easily once the retainer screw is removed, while others might require a gentle twisting motion to disengage from the internal mechanism.
If the cylinder seems stuck, don't force it. Check to ensure you've removed all retaining screws and that there aren't any additional clips or springs holding it in place. Sometimes a small amount of lubricant can help if the cylinder has been in place for a long time and has accumulated dirt or corrosion.
Once the cylinder is removed, you'll have access to the internal locking mechanism. This is also a good opportunity to clean the cylinder and its housing, which can help improve the lock's performance when reassembled.
After disassembling the main components of the panic bar mechanism, you'll need to remove the mounting hardware that secures the entire assembly to the door. This step varies significantly depending on the specific panic bar model and installation method.
Most panic bars are mounted using screws or bolts that pass through the door itself. These fasteners are typically located along the top and bottom of the panic bar housing, though some models may have additional mounting points along the sides.
Start by identifying all the mounting screws or bolts. They're usually visible from the interior side of the door, though some may be concealed behind covers or plates. Use the appropriate screwdriver or wrench to remove these fasteners, working systematically from one end to the other.
Be prepared to support the panic bar assembly as you remove the final mounting screws, as the unit can be heavy and may fall if not properly supported. Having an assistant during this step can be particularly helpful for larger or heavier panic bar models.
Some installations may include additional components such as strike plates, door reinforcement plates, or trim pieces that also need to be removed. Take note of how these components are positioned and secured, as this information will be valuable during reassembly.
During the disassembly process, you may encounter several common issues that can complicate the removal process. Understanding how to address these challenges will help ensure a successful disassembly without damaging the components or the door.
Stuck or corroded screws are among the most frequent problems you'll face. If a screw won't turn easily, try applying a small amount of penetrating oil and allowing it to sit for several minutes before attempting to remove it again. For severely corroded screws, you may need to use a screw extractor or drill out the screw entirely.
Springs and small components can sometimes pop out unexpectedly during disassembly. This is why it's important to work carefully and keep track of all parts as you remove them. If a spring does pop out, note its position and orientation before attempting to reinstall it.
Some panic bars have unique or proprietary components that may not be immediately obvious in their function or removal method. When in doubt, consult the manufacturer's documentation or contact their technical support for guidance. Taking photos during disassembly can also help you remember the proper positioning of components.
Disassembling a panic bar provides an excellent opportunity to perform thorough maintenance and inspection of all components. This proactive approach can help identify potential issues before they become serious problems that could compromise the safety function of the device.
Clean all components thoroughly using appropriate cleaning solutions. Remove any accumulated dirt, grease, or debris from the mechanism, paying particular attention to moving parts and spring assemblies. This cleaning process can significantly improve the panic bar's performance and longevity.
Inspect all components for signs of wear, damage, or corrosion. Look for cracks in metal components, worn springs, or damaged seals. The key cylinder should be checked for smooth operation, and the locking mechanism should be examined for proper alignment and function.
This is also an ideal time to lubricate moving parts with appropriate lubricants. Use only lubricants recommended by the manufacturer, as incorrect products can attract dirt or cause components to malfunction. Apply lubricant sparingly to avoid excess that could drip or attract contaminants.
While this guide focuses on disassembly, it's important to consider the reassembly process from the beginning. Proper reassembly is crucial for ensuring the panic bar functions correctly and safely.
Keep all components organized and in the order they were removed. This makes reassembly much easier and helps ensure nothing is forgotten or installed incorrectly. Take photos during disassembly to document the position and orientation of components, springs, and hardware.
When you're ready to reassemble, essentially reverse the disassembly process. Start by installing the mounting hardware, then work your way through the internal components, cylinder, and finally the end caps. Test the panic bar's function thoroughly before putting it back into service.
Remember that panic bars are life safety devices, and proper function is critical. If you're unsure about any aspect of the reassembly process, consider consulting with a professional locksmith or the manufacturer's technical support.
While many panic bar maintenance tasks can be performed by skilled maintenance personnel, there are situations where professional assistance is recommended or required. Complex repairs, warranty work, or modifications to the panic bar system should typically be handled by qualified professionals.
If you encounter components that appear damaged beyond simple cleaning or lubrication, or if the panic bar doesn't function properly after reassembly, it's time to call in an expert. Professional locksmiths and door hardware specialists have the training, tools, and experience to handle complex issues safely and effectively.
Additionally, some jurisdictions have specific requirements for who can perform work on life safety devices like panic bars. Check your local building codes and regulations to ensure compliance with any applicable requirements.
Taking apart a panic bar is just one aspect of maintaining these critical safety devices. Regular inspection and maintenance schedules should be established to ensure continued reliable operation. Most manufacturers recommend annual professional inspections, with more frequent checks in high-use environments.
Keep detailed records of all maintenance activities, including disassembly, cleaning, lubrication, and any parts replacement. This documentation can be valuable for warranty claims, insurance purposes, and regulatory compliance.
Understanding how to properly take apart a panic bar empowers you to perform essential maintenance while ensuring these vital safety devices continue to protect building occupants. With the right knowledge, tools, and attention to detail, you can successfully disassemble and maintain panic bars while preserving their critical safety function.
