Installing a panic bar on your commercial door is one of the most important safety upgrades you can make for your building. These life-saving devices allow people to exit quickly during emergencies, even when doors are locked from the outside. Whether you're a building owner, facility manager, or DIY enthusiast, learning how to properly install a panic bar ensures your space meets safety codes and protects occupants.
This comprehensive guide walks you through everything you need to know about panic bar installation, from choosing the right hardware to completing the final adjustments.
A panic bar, also known as a crash bar or exit device, is a horizontal bar mounted on the inside of a door that releases the latch when pushed. These devices are designed to allow quick exit during emergencies while keeping the door securely locked from the outside.
Most commercial buildings are required by fire codes to have panic bars on exit doors. The National Fire Protection Association (NFPA) and International Building Code (IBC) mandate these devices in specific situations, particularly for doors serving assembly occupancies with 50 or more people.
Beyond legal requirements, panic bars offer several practical benefits:
● Emergency egress: People can exit quickly without fumbling for keys or handles
● Security: Doors remain locked from the outside while allowing unrestricted exit
● Accessibility: Easy to operate for people with disabilities or mobility issues
● Durability: Built to withstand heavy use and harsh weather conditions
Before starting your installation, you need to choose the right type of panic bar for your door and application.

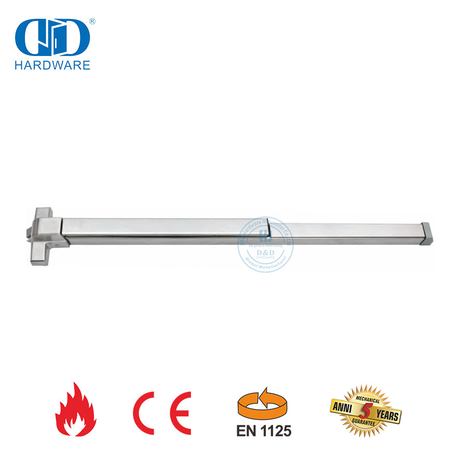

Rim exit devices mount on the surface of the door and are the most common type for steel doors. The latch mechanism sits on the door's interior surface, making installation straightforward. These work well for doors that don't require concealed hardware.
Mortise exit devices integrate with a mortise lock body that's recessed into the door. This creates a cleaner appearance but requires more complex installation. These are often used on wooden doors or when aesthetics are a priority.

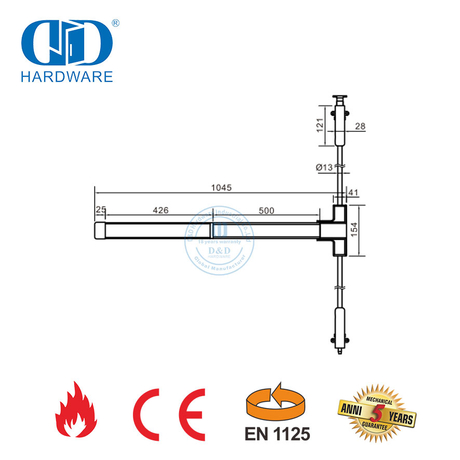

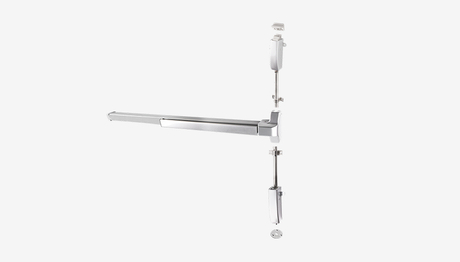

Vertical rod devices use rods that extend to the top and bottom of the door frame when locked. These provide superior security and are ideal for double doors or doors that need extra holding power against wind or forced entry.
Gathering the right tools before starting will make your panic bar installation smoother and more efficient.
● Power drill with bits
● Hole saw or spade bits
● Screwdriver set
● Measuring tape
● Level
● Pencil for marking
● Safety glasses
● Center punch
● File or sandpaper
● Panic bar kit (includes bar, latch, strike plate, and mounting hardware)
● Replacement screws (if needed)
● Door reinforcement plates (if required)
● Weatherstripping (for exterior doors)
● Lock cylinder (if your device accepts one)
Start by removing the existing door hardware if present. Clean the door surface thoroughly and check that it's properly aligned in the frame. A door that doesn't sit square will cause problems with panic bar alignment.
Measure the door thickness and width to confirm your panic bar is the correct size. Most commercial doors are 1-3/4 inches thick, but verify this measurement as it affects hardware selection.
Position the panic bar on the door at the manufacturer's recommended height, typically 34-48 inches from the floor. Use a level to ensure the bar sits perfectly horizontal, then mark the mounting holes with a pencil.
For the latch mechanism, measure and mark the backset distance from the door edge. Standard backsets are 2-3/4 inches, but check your specific device requirements.
Using your marked points as guides, drill pilot holes for the mounting screws. For the latch mechanism, you'll need to drill a larger hole—typically 2-1/8 inches in diameter—through the door face.
Work slowly and keep your drill perpendicular to the door surface. For metal doors, use cutting oil to prevent overheating and extend bit life.
Insert the latch mechanism through the large hole you drilled. The latch should sit flush with the door edge. If it's proud of the surface, you may need to chisel or file a small recess.
Secure the latch with the provided screws, ensuring it operates smoothly. Test the latch by pressing it in and releasing—it should spring back quickly and fully.

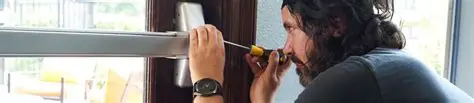

Position the panic bar over the latch mechanism and align it with your mounting holes. The bar should connect properly with the latch actuator. Install the mounting screws, but don't fully tighten them yet.
Check that the bar is level and properly aligned before final tightening. The bar should depress smoothly with light pressure and return to its original position when released.
On the door frame, mark the location where the latch will engage. This should align perfectly with the latch when the door is closed. Drill holes for the strike plate and secure it with the provided screws.
Test the fit by closing the door and operating the panic bar. The latch should engage and disengage smoothly without binding.
With all components installed, test the complete system multiple times. The panic bar should require no more than 15 pounds of force to operate—this is a code requirement for accessibility.
Check that the door latches securely when closed and releases completely when the bar is pressed. Make any necessary adjustments to the strike plate or latch mechanism.
If your door doesn't sit square in the frame, the panic bar may not align properly with the strike plate. Minor adjustments can often be made by filing the strike plate opening slightly or adjusting the hinges.
Sometimes panic bars conflict with existing locks or handles. In many cases, you can relocate or remove conflicting hardware. However, if you need to maintain other locking mechanisms, consider a panic bar designed to work with mortise locks.
For exterior doors, ensure proper weatherstripping around the panic bar mechanism. Water infiltration can cause corrosion and operational problems. Use appropriate sealants around mounting holes and consider installing a drip cap above the door.
Once installed, your panic bar requires regular maintenance to ensure reliable operation. Monthly testing should include operating the bar multiple times and checking that all hardware remains tight.
Annual professional inspections are recommended, especially for high-traffic doors. During these inspections, technicians will lubricate moving parts, check for wear, and verify continued code compliance.
Keep documentation of your installation and maintenance activities. Many jurisdictions require records for fire safety inspections and insurance purposes.
Never attempt to modify or bypass panic bar safety features. These devices are life-safety equipment, and improper installation or maintenance can have serious consequences.
If you're unsure about any aspect of the installation, consult with a qualified locksmith or door hardware professional. The cost of professional installation is minimal compared to the potential liability of improper installation.
Always test your panic bar installation with the door in both open and closed positions. Some installation problems only become apparent under actual operating conditions.
While many panic bar installations can be completed by skilled DIYers, certain situations require professional expertise:
● Installation on fire-rated doors
● Integration with access control systems
● Compliance with specific ADA requirements
● Warranty considerations for commercial applications
● Local codes requiring certified installation
A properly installed panic bar should provide years of reliable service with minimal maintenance. Regular cleaning, lubrication, and adjustment checks will prevent most operational problems.
Keep spare parts on hand, including springs, latches, and small hardware. These components experience the most wear and may need replacement over time.
Consider upgrading to modern panic bars with improved weather sealing and corrosion resistance if you're replacing older units. Technology improvements in recent years have made these devices more reliable and longer-lasting.
Installing a panic bar correctly protects the people who use your building while ensuring compliance with safety codes. By following these detailed steps and paying attention to proper alignment and adjustment, you'll create a reliable emergency exit system that serves your building for years to come.
Remember that panic bar installation is about more than just following instructions—it's about creating a safe environment for everyone who enters your building. Take the time to do it right, test thoroughly, and maintain the system properly for optimal performance.
