A door that sticks, sags, or won’t close properly is more than just a minor annoyance. It can cause damage to the door frame, create drafts, and even pose a security risk. In many cases, the culprit isn't the door itself, but misaligned door hinges. Learning how to adjust them is a valuable DIY skill that can save you the time and expense of calling a professional.
This guide will walk you through the process of diagnosing and fixing common door hinge problems. You'll learn how to identify why your door isn't closing correctly and the specific steps to adjust the hinges for a smooth, perfect fit. With a few simple tools and a little patience, you can get your door swinging freely again.
Before you start turning screws, it’s important to figure out why your door isn’t closing. A door that's out of alignment usually rubs or binds against the frame in a specific spot.
To diagnose the problem, close the door slowly and watch where it makes contact with the frame first.
· Top corner rubs: If the top corner of the door (on the handle side) rubs against the frame, it's likely sagging. This is the most common issue, often caused by the top hinge pulling away from the frame due to the door's weight.
· Bottom corner rubs: If the bottom corner scrapes against the threshold or frame, the issue could be with the bottom hinge or a settled foundation.
· Gaps are uneven: Look at the gap between the door and the frame. A properly aligned door has a consistent gap (usually about 1/8 inch or 3mm) all the way around. If the gap is wide at the top and tight at the bottom, or vice versa, the hinges need adjustment.
· Door latches high or low: If the latch doesn't line up with the strike plate on the door jamb, the door has either sagged or lifted, and the hinges are almost certainly the cause.
Once you’ve identified where the door is binding, you can move on to the appropriate fix.
You don’t need a fully stocked workshop for this job. Most door hinge adjustments can be done with a few basic tools:
· Drill or screwdriver: A drill with a Phillips head bit will make the job much faster, but a good old-fashioned screwdriver works too.
· Long screws: Have some 2.5-inch or 3-inch screws on hand. These are often the key to fixing a sagging door.
· Hammer: For tapping hinge pins or shims into place.
· Utility knife: To score around the hinge if you need to create a deeper mortise.
· Cardboard or shims: Thin cardboard (from a cereal box, for example) works perfectly as a DIY shim.
· Wood shims or a door stop: To prop the door up while you work on it.
Depending on your diagnosis, one of the following methods should solve your door alignment issues. Always start with the simplest fix first.

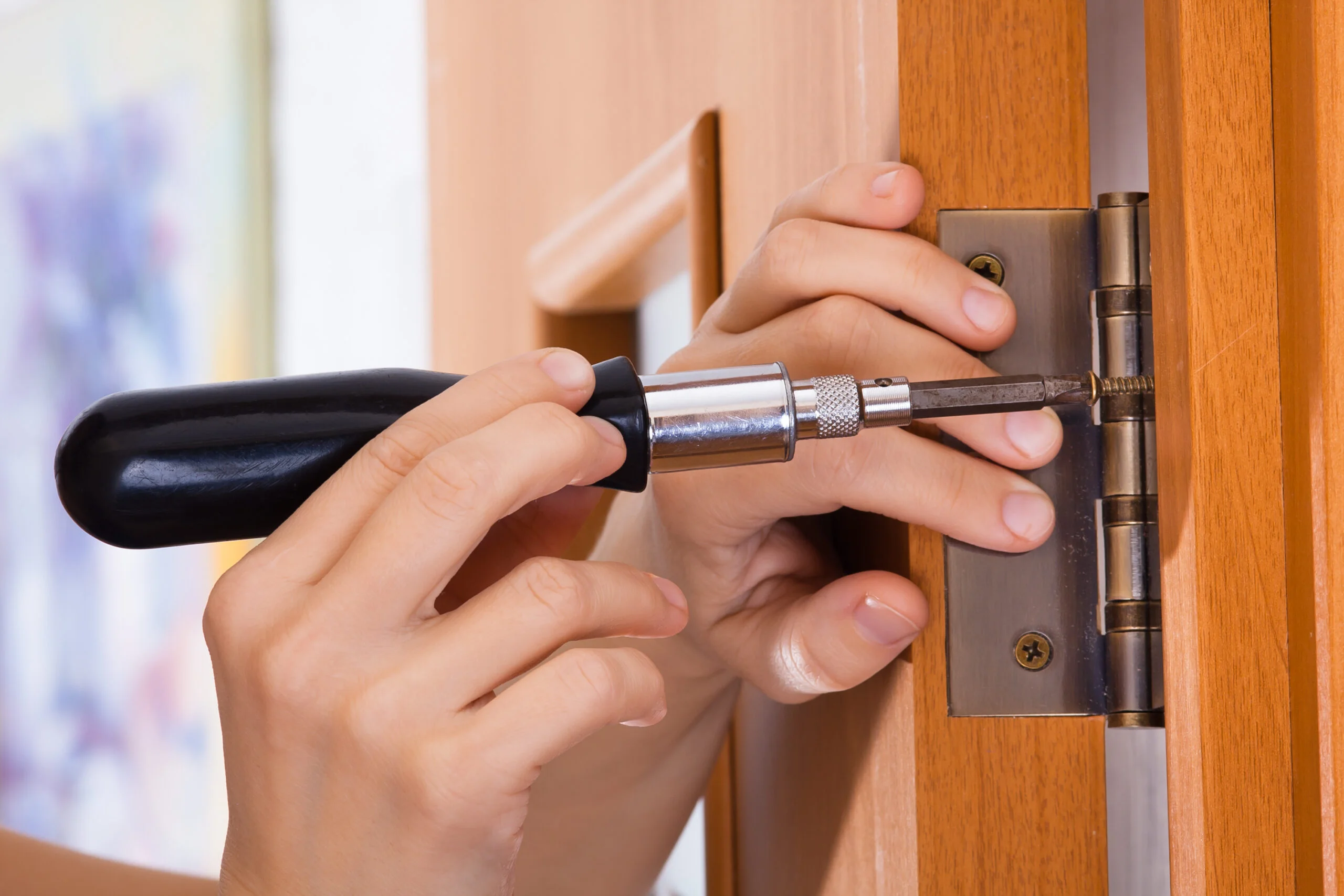

The first and easiest step is to check all the screws on your door hinges. Over time, screws can loosen, causing the door to sag.
1.Check All Screws: Open the door and examine every screw on both the door and the jamb side of each hinge.
2.Tighten Loose Screws: Use your drill or screwdriver to tighten any that feel loose. Be careful not to overtighten and strip the screw holes, especially on older wood.
3.Test the Door: Close the door to see if this simple fix solved the problem. If the door still rubs, you likely have a stripped screw hole that needs more attention.
If tightening the existing screws didn’t work, the screw holes in the door jamb may be stripped. The weight of the door pulls on the top hinge, and the short screws that come standard with most hinges often aren't long enough to bite into the solid wood of the wall stud behind the jamb. This is where the long screw trick comes in.
1.Remove a Key Screw: On the top hinge, remove one of the screws on the jamb side—preferably one near the center.
2.Drive a Long Screw: Replace it with a 2.5 or 3-inch screw.
3.Tighten Slowly: Drive the new, longer screw into the hole. As it goes past the door jamb and into the wall stud, it will pull the hinge and the entire door back into proper alignment. Keep tightening until the gap at the top of the door looks even.
4.Test the Door: Open and close the door to check the alignment. In most cases, this single screw is enough to fix a sagging door. If it helped but isn't perfect, you can replace the other screw on the top hinge with another long screw.
Sometimes the issue isn't the screws but the hinge itself. Bending the hinge slightly can move the door a small amount, which might be all you need to fix the alignment. This method is best for making minor adjustments.
1.Close the Door: Leave the door closed for this adjustment.
2.Remove the Hinge Pin: Use a hammer and a nail or a hinge pin removal tool to tap the pin out of the hinge you want to adjust. If the door is sagging, you'll work on the top hinge. If the door binds near a hinge, you'll work on that specific hinge.
3.Bend the Knuckles: With the pin removed, place an adjustable wrench over one of the knuckles (the round parts that interlock) on the door jamb side. Gently bend it slightly toward the door stop. Be careful not to use too much force. A small adjustment goes a long way.
4.Reinsert the Pin: Tap the hinge pin back into place.
5.Test the Door: Check if the adjustment has corrected the problem. You may need to repeat the process, bending the knuckle a little more or adjusting a different hinge.
If your door has an uneven gap but isn't necessarily sagging, shimming the hinges can help. Shimming involves placing a thin piece of material behind a hinge to push it slightly away from the jamb or door.
· To increase the gap near a hinge: Place a shim behind the hinge on the door jamb. This pushes the entire door away from the jamb on that side.
· To decrease the gap near a hinge: Place a shim behind the opposite hinge. For example, to close a gap at the top hinge, you could shim the bottom hinge.
Here's how to do it:
1.Prop the Door: Open the door and place a wood shim or doorstop underneath to support its weight.
2.Remove the Hinge: Unscrew the hinge you want to shim from the door jamb. You only need to work on one side.
3.Place the Shim: Cut a piece of thin cardboard to the size of the hinge and place it in the mortise (the recessed area where the hinge sits).
4.Re-attach the Hinge: Screw the hinge back in place over the cardboard shim.
5.Test the Door: Remove the prop and test the door's alignment. You can add more layers of cardboard or shim other hinges as needed to get the perfect fit.
Fixing a door that won't close doesn't have to be a frustrating experience. By taking a methodical approach—diagnosing the issue, tightening screws, using the long screw trick, or making minor adjustments with shims—you can restore your door to perfect working order. These simple repairs for your door hinges not only improve the function of your home but also empower you with valuable DIY knowledge for future projects.
Next time a door in your house starts to stick, you'll know exactly what to do. With the right technique, you can achieve a smooth, quiet close every time.
