Mechanical rooms are the operational core of any building, housing essential systems like HVAC, boilers, and electrical panels. While these spaces are vital, they also present significant fire risks. Ensuring these rooms are properly contained is not just a matter of good practice; it's a critical safety requirement. This is where UL rated doors and hinges play a non-negotiable role.
This guide will explain the importance of using UL listed components for your mechanical room doors. We will cover what UL ratings mean, why they are essential for fire safety, and how to select the right UL door hinges and assemblies to ensure your building is both safe and compliant with national standards. Understanding these requirements is the first step toward protecting property and, more importantly, saving lives.
In the context of doors and hardware, UL testing focuses on fire resistance. A fire-rated door assembly, including the door, frame, and hardware like hinges and latches, is tested as a complete unit. The assembly is exposed to intense heat for a specific duration to see how well it can contain a fire and prevent it from spreading.
The rating is given in minutes or hours (e.g., 20-minute, 45-minute, 90-minute, 3-hour), indicating how long the door assembly can withstand fire and maintain its structural integrity. This time frame is crucial, as it provides a critical window for occupants to evacuate and for emergency services to respond.
Mechanical rooms are inherently high-risk areas due to the nature of the equipment they contain. These spaces often house:
· HVAC systems: Heaters, ventilation, and air conditioning units.
· Boilers and water heaters: Equipment that operates at high temperatures.
· Electrical panels and transformers: Sources of potential electrical fires.
· Pumps and machinery: Equipment that can overheat or malfunction.
A fire starting in one of these rooms can spread rapidly through a building's ventilation systems or structural pathways if not properly contained. A fire-rated door assembly acts as a crucial barrier, compartmentalizing the fire and preventing it from reaching other parts of the building. This containment strategy is a cornerstone of modern fire safety design. Building codes, such as those from the National Fire Protection Association (NFPA), mandate the use of fire-rated doors for enclosures like mechanical rooms to minimize this risk.
A fire-rated door is only as effective as its weakest component. If the hinges fail during a fire, the door can detach from its frame, rendering the entire fire barrier useless. This is why using UL listed door hinges is not just recommended—it's a requirement for a compliant fire-rated assembly.
UL listed door hinges are specifically designed and tested to perform under extreme fire conditions. Key characteristics include:
· Material: They are typically made from steel or stainless steel, as these materials have a high melting point and can maintain their strength at high temperatures. Brass or bronze hinges are generally not suitable for fire-rated applications unless specifically tested and listed for that purpose.
· Construction: Fire-rated hinges are built to be robust. They often feature a ball-bearing or heavy-duty plain-bearing design to support the weight of heavy fire doors and ensure smooth operation over time.
· Testing: During UL testing, hinges are mounted on a door assembly and subjected to the standard fire test. They must remain attached and support the door for the duration of the rating period. After the fire exposure, the assembly is often subjected to a high-pressure hose stream test to simulate the impact of firefighting efforts. The hinges must not fail or allow the door to become dislodged.

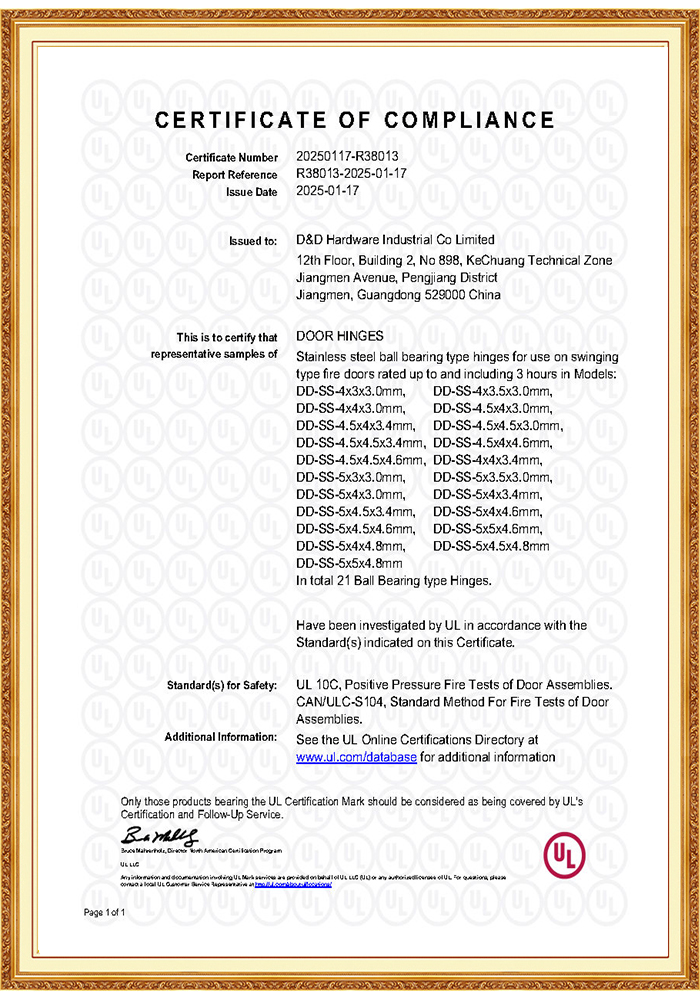

Every UL listed hinge is stamped with the UL mark, making it easy for inspectors to verify that the correct hardware has been used. Without this mark, an inspector will likely fail the installation, leading to costly delays and rework.
Choosing the correct fire-rated door and hardware involves more than just picking products with a UL stamp. The entire assembly must be specified correctly to match the fire-resistance rating required for the mechanical room's location within the building.
Building codes dictate the necessary fire rating based on the wall assembly where the door will be installed. For example, a mechanical room enclosed by a 2-hour fire-rated wall typically requires a 90-minute (1.5-hour) fire-rated door assembly. Always consult the relevant building codes (like the International Building Code or IBC) and a fire protection engineer to determine the exact requirements for your project.
When sourcing your door, ensure that the door slab, the frame, and the hardware are all labeled for fire-rated use and are compatible. The label on the door and frame will specify the maximum fire rating (e.g., "90 Minutes"). All hardware installed on that door, including the hinges, lockset, and closing device, must also be UL listed for fire applications.
For a fire-rated door, you must use hinges that are listed for that purpose. Here are a few key considerations for selecting a UL door hinge:
· Hinge Type: Ball-bearing hinges are highly recommended for fire-rated doors. They provide smoother operation and greater durability, which is essential for the heavier weight of fire doors.
· Material: Opt for steel or stainless steel hinges. Stainless steel offers the added benefit of corrosion resistance, making it ideal for mechanical rooms where humidity or chemicals may be present.
· Size and Quantity: The number and size of hinges required depend on the door's dimensions and weight. A standard-height fire door typically requires at least three hinges. Taller or heavier doors may need four or more. Refer to NFPA 80, the Standard for Fire Doors and Other Opening Protectives, for specific guidance on hinge quantity and placement.
Nearly all fire-rated doors are required to be self-closing and self-latching. This means a UL listed door closer must be installed. The closer ensures the door automatically returns to a closed and latched position after being opened, maintaining the integrity of the fire barrier. Without a functioning closer, a fire-rated door offers no protection if it's left open.
Protecting your building from fire starts with paying attention to the details, and the components of your mechanical room doors are a critical detail. Using UL rated doors and hinges at a mechanical room is a fundamental requirement for creating a safe environment. These tested and certified assemblies are designed to contain a fire at its source, providing precious time for evacuation and preventing catastrophic damage.
When planning your next project, work with trusted suppliers and installers who understand the complexities of fire-rated assemblies. Always verify that every component—from the door and frame to the UL listed door hinges and closer—carries the appropriate UL mark. By prioritizing compliance and safety, you ensure your building is not only up to code but also prepared to protect its occupants when it matters most.
