When it comes to building safety and compliance, few components are as important as your exit devices. Among the various options available to secure and protect your building's occupants, rim panic exit devices are one of the most popular and effective choices. But what exactly are they, and how do they differ from other types of exit devices?
This blog post will guide you through the essentials of rim panic exit devices, their features, and how they compare to options like panic bars and mortise exit devices. By the end, you'll know how to make an informed decision about which solution is best for your needs.

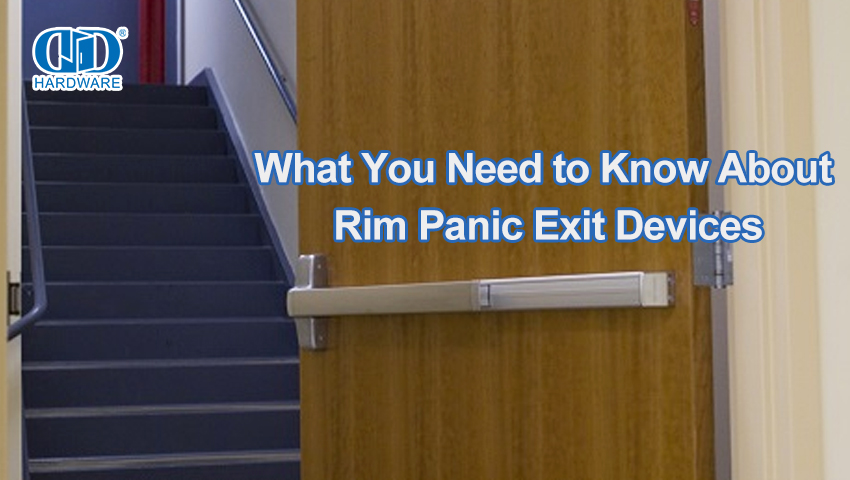

Rim panic exit devices are a type of door hardware specifically designed to provide easy egress in emergency situations, such as fires or other evacuations. They are commonly mounted on the surface of a door and feature a horizontal bar that, when pushed, disengages the locking mechanism, allowing the door to open outward.
These devices are prominently used in schools, commercial buildings, auditoriums, and other spaces that require fast and safe egress for large groups of people. Key features of rim panic exit devices include:
● Surface-mounted hardware for easy installation
● Single-point latching mechanism that secures the door to the frame
● Compliance with fire and safety codes, including ADA and UL standards
● High durability and compatibility with various door types, including metal and wood
Many people use the terms "rim exit device" and "panic bar" interchangeably, but they aren't exactly the same. A rim panic exit device refers specifically to the mechanism mounted on the surface of the door, while the panic bar is a key component of that device. Below, we'll break it down further:
1.Panic Bar (Push Bar): The horizontal bar that users push to release the latch.
2.Latching Mechanism: The mechanism that secures the door to the frame and disengages when the panic bar is pushed.
3.Surface-mounted Design: Rim panic devices are installed externally, which simplifies both installation and maintenance. They are ideal for doors that aren’t equipped with internal locking hardware.
● Ease of Use: Ideal for emergencies, as occupants can exit quickly with minimal effort.
● Code Compliance: Most rim panic devices are fire-rated and meet safety codes like ANSI and NFPA standards.
● Low Maintenance: Easy to maintain because they’re surface-mounted and accessible.
● Durability: High-quality rim panic exit devices are built to withstand years of usage in high-traffic areas.
If you're equipping a high-traffic door that demands reliability and compliance, pairing rim exit devices with durable panic bar hardware is a top-tier choice.
Though the terms often overlap, understanding the difference between a rim exit device and a panic bar will help you choose the right option for your needs.
● Refers to the overall mechanism mounted on the door.
● Includes a panic bar as part of the design.
● Used as a comprehensive solution for emergency exits.
● Refers specifically to the horizontal bar component of a rim exit device.
● Can also be part of other exit device types, such as vertical rods or concealed mechanisms.
● Often discussed as a part of a system rather than the entire device.
In short, the rim exit device is the broader hardware that integrates the panic bar as one of its critical components. When shopping for a rim exit device, ensure that the panic bar offers smooth operation and complies with local building codes.
Beyond comparing rim exit devices with panic bars, you might also wonder how they stack up against mortise exit devices. Both offer distinct advantages, suited for different applications. Let's compare:
● Mounting: Surface-mounted, requiring less door modification.
● Latching: Single latch point at the edge of the door.
● Applications: Ideal for retrofitting or buildings where minimal door alterations are preferred.
● Cost: Often more affordable due to simpler installation.
● Mounting: Requires installation inside the door, requiring precise door modifications.
● Latching: The latch mechanism is housed within the door, providing enhanced security.
● Applications: Commonly used in high-security applications, such as bank doors or upscale commercial facilities.
● Cost: Higher cost due to complex installation and enhanced security features.
Your choice between a rim exit device and a mortise exit device depends on several factors:
● Ease of Installation: Rim exit devices are easier and quicker to install.
● Level of Security Required: Mortise exit devices are preferred for higher security needs.
● Budget Considerations: Rim exit devices are typically less expensive.
For most standard commercial buildings, rim panic exit devices offer the ideal balance of simplicity, compliance, and functionality.
When selecting a rim panic exit device for your building, consider the following:
● Fire Safety Ratings: Ensure the device complies with fire regulations, especially if it’s installed on fire-rated doors.
● Traffic Level: Opt for heavy-duty devices if the exit sees significant daily use.
● Door Material: Verify compatibility with the specific material of your doors, i.e., metal, wood, or glass.
● Brand Reputation: Stick to trusted manufacturers to ensure compliance and durability.
Top brands like Von Duprin, Detex, and Dormakaba offer a range of rim panic exit devices tailored to suit different building types and needs.
When it comes to building safety, rim panic exit devices are an indispensable solution for ensuring fast, secure egress during emergencies. Whether you're retrofitting an existing space or outfitting a new build, understanding the differences between rim exit devices, panic bars, and alternatives like mortise exit devices is key to making the right choice.
Looking to upgrade your building's exit hardware? Explore the various options available and ensure your doors comply with all safety and accessibility standards. Investing in high-quality hardware doesn't just keep you compliant; it ensures peace of mind for everyone who steps through your doors.
