When emergencies strike, time is critical, and safety becomes a top priority. Panic exit devices play an essential role in providing quick and easy egress from buildings, ensuring occupants can evacuate safely and efficiently. But did you know that not all panic exit devices are the same? They come in a variety of types, each suited to different buildings, doors, and safety requirements.
This guide will walk you through the different types of panic exit devices, their key features, and which settings might benefit most from each. Whether you're a building manager, property owner, or simply safety-conscious, this post will help you make an informed decision.

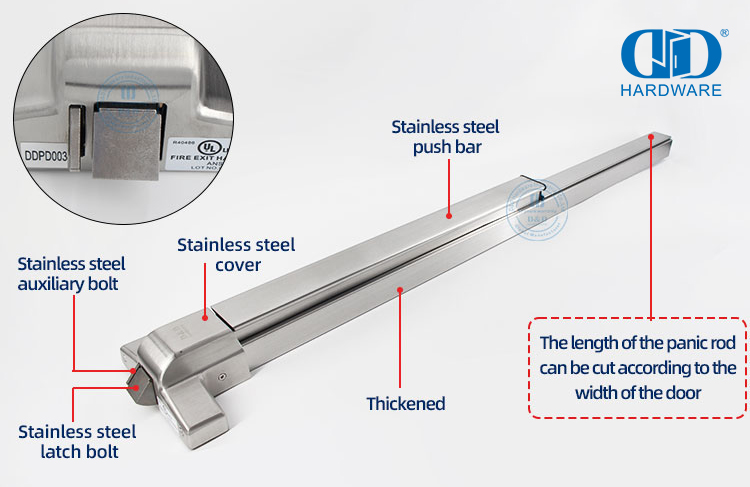

Panic exit devices, often referred to as panic bars, are door hardware installed to allow people to exit a building quickly and easily during emergencies. These devices are typically found on doors in commercial buildings, schools, hospitals, and high-occupancy spaces.
The key feature of a panic exit device is its simple operation. Most devices include a horizontal push bar or touchpad that, when pressed, releases the latch mechanism and opens the door. This allows people to escape without fumbling for keys or figuring out complex door locks, reducing panic in high-stress situations.

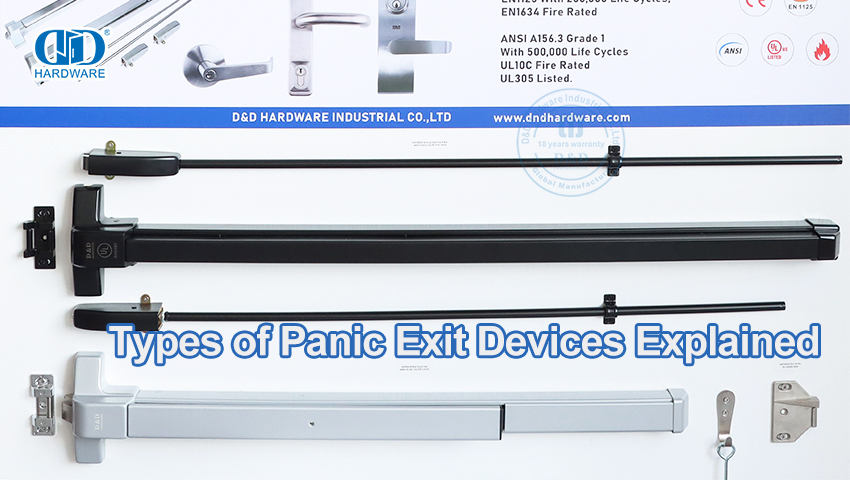

Now that we’ve covered the basics, let's examine the main types of panic exit devices. Each type is designed for specific door configurations and building requirements, ensuring both safety and compliance with building codes.
Overview:

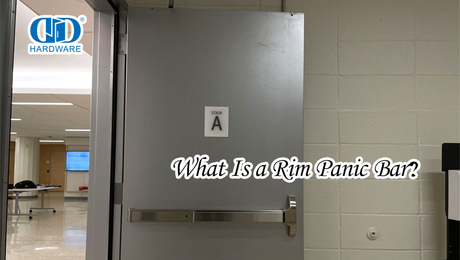

Rim panic devices are mounted on the surface of the door and work with a latch that attaches to the frame. When the push bar is engaged, the latch retracts and allows the door to open.
Common Uses:
● Single doors or doors without a center mullion (a vertical bar separating paired doors).
● Ideal for exterior doors in schools, offices, and retail spaces.
Benefits:
● Simple design and easy installation.
● Reliable for high-traffic areas.
● Minimal maintenance required.
Considerations:
Not as suitable for double doors that require multiple points of latching.
Overview:
Mortise devices operate with a mortise lock mechanism embedded inside the door. The latch retracts when the push bar is activated, allowing the door to open seamlessly.
Common Uses:
● Heavy-duty doors in hotels, theaters, and historic buildings.
● Locations where aesthetics are important due to their sleek, flush design.
Benefits:
● Durable and secure, offering better resistance to unauthorized entry.
● Sleek design integrates neatly into the door.
Considerations:
● Can be more challenging to install and maintain due to the built-in mechanism.
Overview:
Vertical rod devices use rods that run along the length of the door, engaging latches at the top and bottom. When the push pad or bar is pressed, both latches release simultaneously to open the door.
Common Uses:
● Double doors without a center mullion.
● Interior doors in commercial spaces or fire exits requiring added security.
Benefits:
● Provides multiple points of securing the door for greater safety.
● Works well for double doors.
Considerations:
May require regular maintenance to ensure the rods align and function correctly.
Overview:

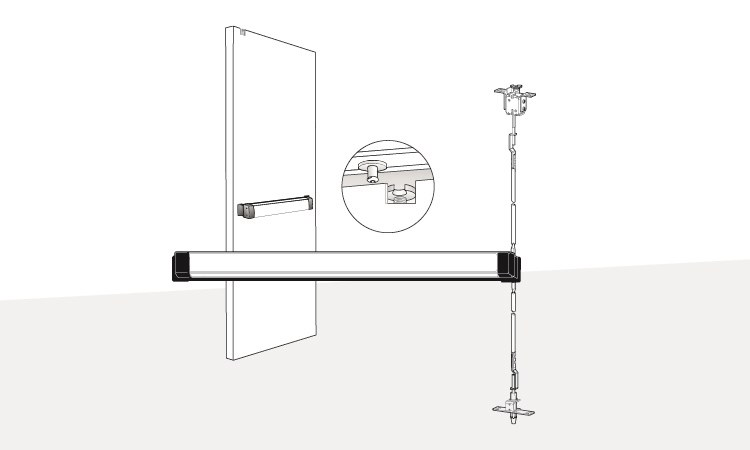

Similar to vertical rod devices, concealed options have rods hidden within the door, creating a cleaner look.
Common Uses:
● High-end commercial spaces, offices, and retail buildings where aesthetics matter.
Benefits:
● Concealed design maintains the door’s sleek appearance.
● Functionally similar to surface-mounted vertical rod devices.
Considerations:
● Installation and repairs can be more complex, as the mechanisms are hidden inside the door.
Overview:
This device includes a touch-sensitive bar instead of a push pad or traditional push bar. Easy to use; just a light touch opens the door.
Common Uses:
● Some healthcare facilities and educational institutions.
● Situations where compliance with the Americans with Disabilities Act (ADA) is critical.
Benefits:
● Requires minimal effort, making it accessible for individuals with disabilities.
● Compliance with accessibility standards.
Considerations:
May not be necessary for all building types unless ADA compliance is a primary concern.
Overview:
Fire-rated panic exit devices are tested to meet fire code requirements, ensuring they will perform well even under extreme heat in the event of a fire.
Common Uses:
● Fire-rated doors in workplaces, hospitals, and schools.
● Buildings where maintaining fire safety compliance is crucial.
Benefits:
● Enhanced safety in fire emergencies.
● Provides peace of mind knowing the device meets fire code standards.
Considerations:
Typically more expensive, as they must meet strict fire safety regulations.
When selecting the right panic exit device for your building, keep the following factors in mind:
● Building Code Compliance: Ensure the device complies with local safety regulations and codes like NFPA 101 or ADA.
● Type of Door: Single or double door, fire-rated or standard, with or without mullions.
● Level of Security: Determine whether features like mortise locks or multiple latches are necessary.
● Traffic Volume: High-traffic areas may require more durable, heavy-duty devices.
● Aesthetics: Consider concealed or flush designs for settings where appearance matters.
● Ease of Maintenance: Devices with complex mechanisms may require more upkeep.
Panic exit devices are more than just hardware. They are life-saving tools designed to protect building occupants in stressful and potentially dangerous situations. Beyond their critical role in emergencies, these devices also ensure businesses remain compliant with safety regulations.
By understanding the different types and their use cases, you can select the right panic exit devices to protect your building's occupants while ensuring functionality and compliance.
Selecting the right panic exit devices should never be an afterthought. These tools are integral to the safety and security of your building. If you're still unsure about which device is suitable for your doors, consult a professional installer or vendor to explore your options further.
Enhance your building’s safety and maintain compliance with properly installed, high-quality panic exit hardware. After all, in emergencies, every second counts, and the right device could save lives.
