Adding a sliding barn door is a fantastic way to introduce character and a rustic-chic vibe to any room. Not only are they stylish, but they're also great space-savers, eliminating the swing space needed for a traditional door. While installing one might seem like a job for a professional, with the right tools and a good barn door hardware kit, it's a project many DIYers can tackle in an afternoon.
This guide will walk you through the entire process, from gathering your tools to admiring your finished work. We'll break down how to install your barn door hardware kit step-by-step, ensuring a smooth and successful installation. Get ready to transform your space and add a functional piece of art to your home.
Proper preparation is the key to any successful DIY project. Before you start unboxing your new barn door hardware, let's make sure you have everything you need.

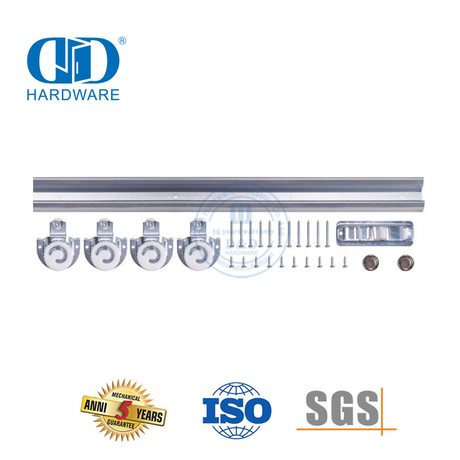

Most barn door hardware kits come with all the necessary components like the track, rollers, stoppers, and screws. However, you'll need a few standard tools to get the job done right.
Tools You'll Need:
· Drill with assorted drill bits
· Level (a 4-foot level is ideal)
· Tape measure
· Pencil
·Stud finder
· Wrench set or socket set
· Safety glasses
· Step ladder
Accuracy is crucial. Before you even purchase your door or hardware, you need to measure your doorway.
· Width: Measure the width of your door opening and add at least two inches. This ensures your barn door will completely cover the opening for privacy. For example, if your opening is 36 inches wide, your door should be at least 38 inches wide.
· Height: Measure from the floor to the top of the door opening. The hardware will be installed above the opening, so ensure you have enough clearance. Most kits require about 6 inches of space above the trim.
With your tools ready and measurements double-checked, it's time to install your barn door hardware kit.
While some kits allow direct installation into studs, using a header board (or ledger board) is the most secure method. A header board is a solid piece of wood (like a 1x4 or 1x6) mounted to the wall studs, providing a continuous, solid surface to attach the track. This distributes the door's weight evenly and guarantees a stronger installation.
1.Cut the Header Board: Cut your header board to the same length as your track.
2.Locate the Wall Studs: Use a stud finder to locate and mark the studs above your doorway. You'll want to attach the header board to at least three studs for maximum stability.
3.Determine Header Height: Place your barn door against the wall next to the opening. Position the header board above it, leaving about a ½-inch gap between the bottom of the door and the floor. Mark the wall at the top of the header board. Use your level to draw a straight, level line across the wall at this height.
4.Attach the Header Board: Align the top of your header board with the level line you drew. Secure it to the wall by driving long screws through the board and directly into the marked studs.
The track is the backbone of your sliding barn door system. It must be perfectly level to ensure the door slides smoothly and doesn't roll open or closed on its own.
1.Mark Pilot Holes: Place the steel track on top of the header board. Use your pencil to mark the locations for the pilot holes through the pre-drilled holes in the track.
2.Drill Pilot Holes: Remove the track and drill pilot holes at the marked spots. This makes it easier to install the lag bolts and prevents the wood from splitting.
3.Install the Track: Position the track back onto the header board, aligning it with the pilot holes. Install the spacers and then secure the track using the provided lag bolts. Do not fully tighten the bolts yet; leave them slightly loose.
The stoppers prevent your door from sliding off the track. Slide one stopper onto each end of the track. You'll tighten them in their final position after the door is hung, but it's easiest to get them on the track now.
The hangers, or rollers, are what allow the door to glide along the track.
1.Position the Hangers: Place the hangers on the top edge of your barn door. The placement is important for balance. Typically, they are installed 2 to 4 inches in from each side of the door. Ensure they are placed at an equal distance from the edges.
2.Mark and Drill: Once you're happy with the placement, mark the bolt holes. Drill holes through the door at these marks.
3.Secure the Hangers: Attach the hangers to the door using the bolts, washers, and nuts provided in your kit. Tighten them securely with a wrench.
This is the exciting part! With a helper, carefully lift the door and place the rollers onto the track. The door should slide smoothly back and forth. Now is the time to check that everything is level. If the door rolls on its own, you may need to adjust the track slightly. Once you confirm it's level, fully tighten all the lag bolts holding the track to the header board.
With the door hanging, you can now finalize the position of the stoppers.
1.Position the Stoppers: Slide the door to its fully open position and move the stopper to meet it. Tighten the stopper's set screw. Repeat this process for the closed position. This ensures the door stops exactly where it should, protecting both the door and your wall.
2.Install Anti-Jump Blocks: These small but vital pieces are installed on the top of the door, between the hangers. They prevent the door from being lifted off the track accidentally. Screw them into place according to your kit's instructions.
The floor guide keeps the bottom of the door stable and prevents it from swinging. Most kits include a T-shaped guide that requires a groove to be cut into the bottom of the door.
1.Cut the Groove (if needed): If your door doesn't have a pre-cut groove, you'll need to create one using a router or a circular saw with a guide. The groove should be slightly wider than the floor guide.
2.Position and Secure the Guide: With the door hanging perfectly plumb (use your level), mark the floor where the guide should be placed. Screw the floor guide into the floor at this mark.
Your barn door is now installed and functional! The final step is to add the handle. Position the handle at a comfortable height—typically around 36 inches from the floor—and attach it using the provided screws.
Take a step back and admire your work. You've successfully installed a beautiful and functional barn door, adding significant value and style to your home. By following these steps and using the right barn door hardware, you've completed a rewarding DIY project that you can enjoy for years to come.
