Installing barn doors has become one of the most popular home improvement trends, adding rustic charm and space-saving functionality to any room. But before you can enjoy your new sliding door, you need to select the right barn door hardware—and that starts with getting the sizing correct.
Choosing the wrong hardware size can lead to installation headaches, poor door function, or even safety issues. The good news? With the right measurements and understanding of hardware components, you can confidently select barn door hardware that will work perfectly for your project.
This guide walks you through everything you need to know about sizing barn door hardware, from measuring your door to selecting the appropriate track length and support components.

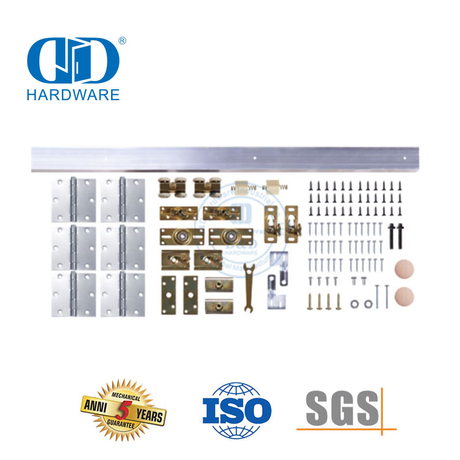

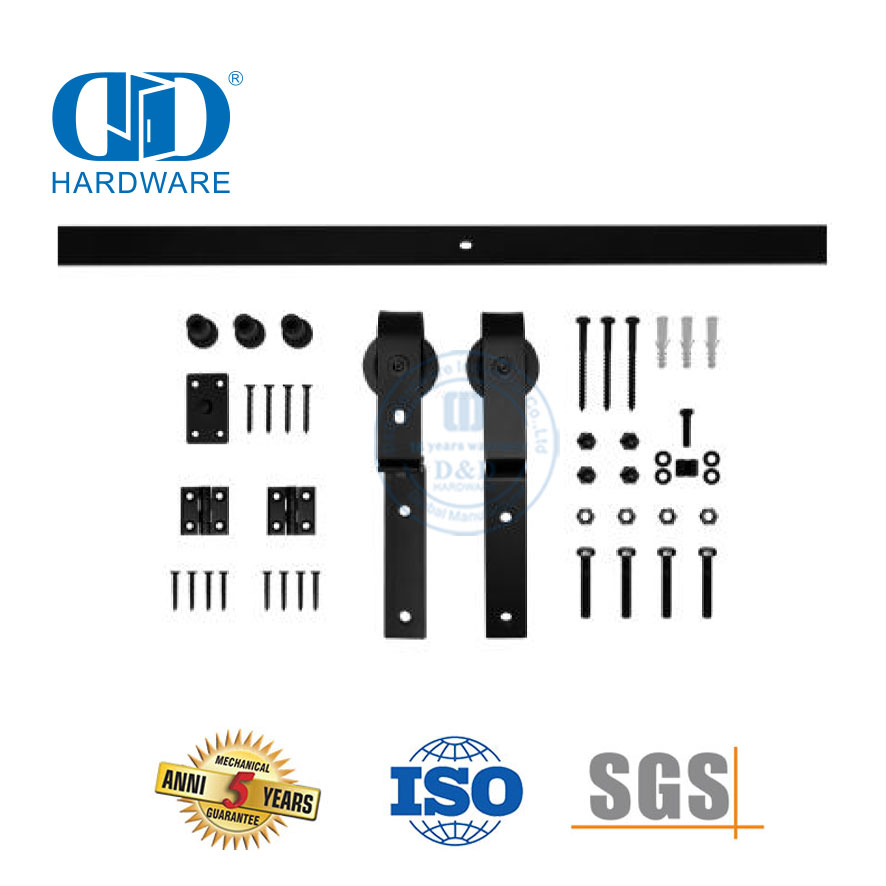

Before diving into sizing, let's review the key components that make up a barn door hardware system:
Track/Rail: The horizontal metal bar that mounts to the wall or ceiling and supports the door's weight during sliding motion.
Hangers/Rollers: The wheeled components that attach to the top of the door and ride along the track.
Door Stops: Small pieces that prevent the door from sliding too far in either direction.
Floor Guide: An optional component that keeps the bottom of the door aligned and prevents swinging.
Mounting Hardware: Brackets, screws, and anchors needed to secure the track to your wall or ceiling.
Accurate door measurements form the foundation of proper hardware sizing. Here's how to measure correctly:
Measure the actual width of your door from edge to edge. For the height, measure from the top of the door to the bottom. If you're installing multiple doors on the same track, measure each door individually and add the widths together.
Most barn door hardware accommodates doors between 1.5 and 2 inches thick. Measure the thickness at several points, as some doors may not be perfectly uniform. This measurement affects which hangers you'll need.
Weigh your door or calculate its approximate weight based on the material. Solid wood doors typically weigh 80-100 pounds, while hollow core doors are much lighter at 25-35 pounds. The weight determines the load capacity requirements for your hardware.
The track length is perhaps the most critical measurement for barn door hardware. Getting this wrong can prevent your door from opening fully or cause installation problems.
For a single barn door, the track should be twice the width of the door opening plus an additional 4-6 inches. This formula ensures the door can slide completely clear of the opening.
Formula: Track Length = (Door Width × 2) + 4-6 inches
For example, if your door is 32 inches wide, you'll need a track that's approximately 68-70 inches long.
When installing two doors that meet in the middle (bypass doors), the track length should equal the width of the opening plus the width of both doors.
Formula: Track Length = Opening Width + Door 1 Width + Door 2 Width
Before finalizing track length, ensure you have adequate wall space. The door needs somewhere to slide when opened, so measure the wall space to the left or right of your opening. If wall space is limited, consider a shorter track with the understanding that the door may not open completely.
Barn door hardware comes with different weight capacities, typically ranging from 150 to 400+ pounds. Choose hardware rated for at least 50% more than your door's actual weight to ensure smooth operation and safety.
· Light-duty (up to 150 lbs): Suitable for hollow core or lightweight doors
· Medium-duty (150-250 lbs): Works for most solid wood doors and standard applications
· Heavy-duty (250+ lbs): Required for very thick, large, or multiple doors
The hangers that connect your door to the track must match both your door thickness and the track style.
Most hangers adjust to accommodate doors between 1.375 and 1.75 inches thick. Some heavy-duty options work with doors up to 2 inches thick. Always verify compatibility before purchasing.
Larger roller wheels typically provide smoother operation and better weight distribution. Standard wheel diameters range from 1.5 to 3 inches, with larger wheels better suited for heavier doors.
Proper installation height affects both function and aesthetics.
Most barn door hardware installs 6-8 inches above the door opening. This provides adequate clearance for the track and hangers while maintaining good proportions.
For rooms with standard 8-foot ceilings, ensure you have enough space above the opening for hardware installation. Rooms with higher ceilings offer more flexibility in positioning.
Plan for 1/2 to 3/4 inch clearance between the bottom of the door and the floor. This prevents dragging while allowing the door to slide smoothly.
Different door materials and styles may require specific hardware considerations:
Heavy solid wood doors need robust hardware with higher weight ratings. Consider upgrading to premium rollers and heavy-duty tracks for better longevity.
Glass doors require special hangers designed to distribute weight evenly and prevent stress concentrations that could cause cracking.
Steel or aluminum doors may need specific mounting hardware and should be paired with appropriate weight-rated systems.
Learning from common mistakes can save time and money:
Underestimating track length: Always double-check your calculations and consider wall space limitations.
Ignoring weight capacity: Don't assume all hardware can handle your door weight—always verify specifications.
Forgetting about trim and molding: Account for existing trim work that might interfere with installation.
Overlooking door thickness variations: Measure thickness in multiple locations, especially on older doors.
Once you have all measurements, compare them against manufacturer specifications. Quality barn door hardware should include detailed sizing charts and weight capacity information.
Consider purchasing from reputable manufacturers who offer technical support and detailed installation instructions. While budget options exist, investing in quality hardware ensures better performance and longevity.
Remember that most hardware kits include standard components, but you may need to purchase additional items like longer tracks or specialized hangers based on your specific requirements.
Selecting the correct barn door hardware size involves careful measurement and consideration of multiple factors. Take time to measure accurately, account for all variables, and choose hardware appropriate for your door's weight and dimensions.
With the right hardware properly sized and installed, your barn door will provide years of smooth, reliable operation while adding character and functionality to your space. When in doubt, consult with hardware manufacturers or professional installers who can help ensure you get exactly what you need for a successful project.
