Installing bypass barn doors can transform any space with their sleek, space-saving design. Unlike traditional hinged doors, bypass doors slide past each other on parallel tracks, making them perfect for closets, pantries, and room dividers where space is at a premium. However, the key to a successful installation lies in accurate measurements.
Getting your measurements wrong can lead to doors that don't fit properly, hardware that doesn't align, or worse—a complete reinstallation. This guide will walk you through everything you need to know about measuring for bypass barn door hardware, ensuring your project goes smoothly from start to finish.
Whether you're a DIY enthusiast tackling your first barn door project or a seasoned contractor looking to refresh your knowledge, these measurement techniques will help you achieve professional results every time.
Before diving into measurements, it's important to understand how bypass barn door hardware works. Unlike single sliding barn doors, bypass systems feature two doors that overlap and slide past each other on separate tracks. This design allows you to access the full opening width while using doors that are each slightly larger than half the opening.

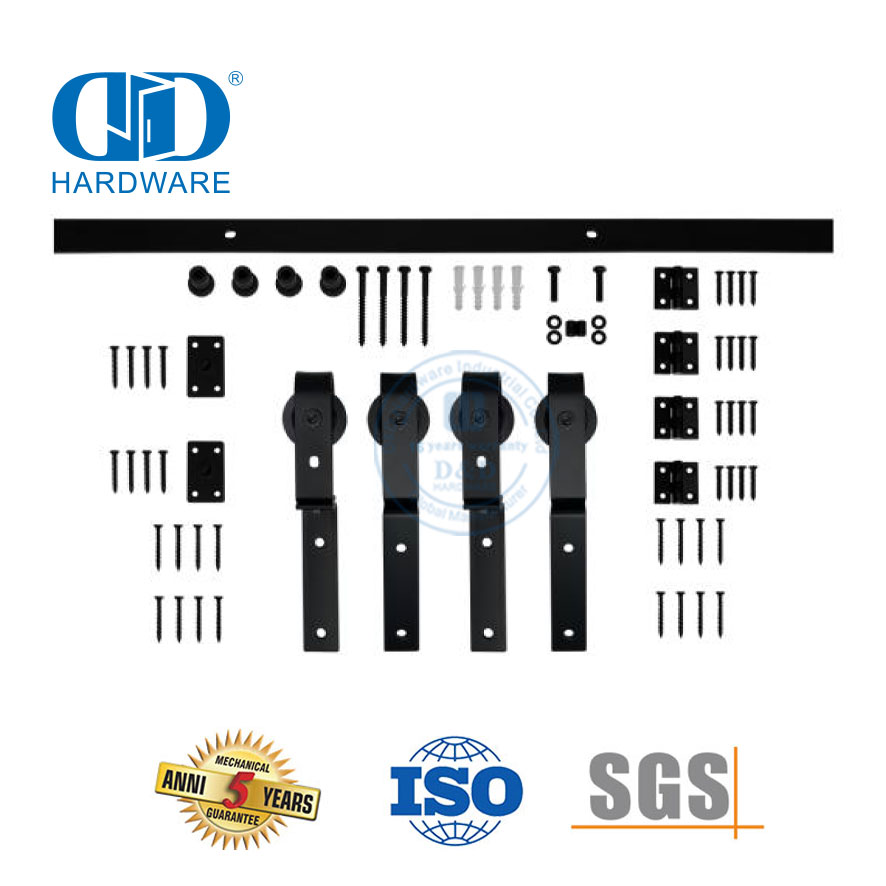

The hardware consists of two parallel tracks mounted at the top of the opening, with rollers or hangers that support each door. The front track typically sits slightly lower than the rear track to allow the doors to overlap smoothly. This overlapping design is what makes precise measurements so critical.
Before you begin measuring, gather these essential tools:
· Steel measuring tape (at least 16 feet long)
· Level (4-foot minimum recommended)
· Pencil for marking
· Notepad for recording measurements
· Stud finder
· Helper (measuring is easier with two people)
Having quality measuring tools ensures accuracy and prevents costly mistakes during installation.
Start by measuring the width of your door opening. Measure at three different heights: top, middle, and bottom. Record all three measurements, as openings aren't always perfectly square.
For bypass barn door hardware, you'll need doors that are each approximately 60% of the opening width. For example, if your opening is 60 inches wide, each door should be about 36 inches wide. This sizing allows for proper overlap while ensuring you can fully open either side of the opening.
If your measurements vary by more than 1/4 inch, you may need to adjust the opening before installation. Use the smallest measurement when calculating door sizes to ensure proper fit.
Measure the height of your opening from floor to the top of the frame. Again, take measurements at both sides and the center. Most bypass barn door hardware requires 2-3 inches of clearance above the opening for proper track mounting.
Consider the finished floor height if you're installing during construction or renovation. Your doors should have about 1/2 inch clearance from the finished floor to prevent dragging.
The track length for bypass barn door hardware differs significantly from single door systems. For bypass doors, your track needs to accommodate both doors sliding to one side.
Calculate your track length using this formula: Opening width + (Door width × 0.5) = Minimum track length.
For example, with a 60-inch opening and 36-inch doors: 60 + (36 × 0.5) = 78 inches minimum track length.
Many professionals add an extra 6-12 inches to this calculation to ensure smooth operation and account for any measurement variations. This extra length also provides more flexibility in door positioning.
Measure the available wall space above your opening. You'll need at least 4-5 inches of clearance above the door frame for most bypass barn door hardware systems. This space accommodates the track mounting brackets and allows for proper door clearance.
Check for any obstacles like crown molding, light fixtures, or ceiling fans that might interfere with installation or door operation.
Unlike single barn doors that require wall space equal to the door width, bypass systems need less side wall space since doors overlap. However, you still need adequate space for the track extensions.
Measure at least 12-18 inches beyond each side of the opening to accommodate the track overhang and ensure smooth door operation at the fully open positions.
Locate and mark the wall studs above your opening using a stud finder. Bypass barn door hardware requires secure mounting into structural elements due to the weight of two doors.
Mark stud locations and measure the distances between them. Most track systems come with mounting brackets designed for standard 16-inch or 24-inch stud spacing, but custom spacing may require additional brackets.
Measure your door thickness and calculate the total weight of both doors. This information is crucial for selecting appropriate bypass barn door hardware with adequate weight capacity.
Standard residential doors typically range from 1-3/8 inches to 1-3/4 inches thick. Heavier doors may require upgraded hardware or additional support brackets.
One of the most frequent errors is assuming your opening is perfectly square. Always measure at multiple points and account for variations. Another common mistake is forgetting to factor in the door overlap, which can result in doors that are too narrow to provide privacy when closed.
Don't forget to consider trim and molding when measuring. Existing trim may need to be removed or modified to accommodate the track system. Plan for these modifications during your initial measurements.
Failing to account for floor variations can also cause problems. If your floor isn't level, you may need to adjust door heights or use adjustable hardware to ensure proper operation.
When measuring for professional installation, document everything thoroughly. Take photos of the space and create detailed sketches with all measurements clearly marked. This documentation helps avoid confusion during ordering and installation.
Consider the door swing direction and how it will affect room traffic flow. While bypass doors don't swing into the room, the sliding pattern can still impact furniture placement and room functionality.
Accurate measurements are the foundation of any successful bypass barn door installation. Take your time during the measuring process, double-check all calculations, and don't hesitate to measure twice before ordering your hardware.
Remember that bypass barn door hardware systems can vary between manufacturers, so always consult the specific installation requirements for your chosen system. When in doubt, contact the manufacturer or a professional installer for guidance.
With proper measurements and quality hardware, your bypass barn doors will provide years of smooth, reliable operation while adding style and functionality to your space.
