A door closer is a simple but essential device. It ensures a door closes securely and quietly behind you, maintaining security, controlling temperature, and preventing loud slams. But what happens when it closes too fast, or too slow? A malfunctioning door closer can be more than just an annoyance; it can be a safety hazard or an energy drain.
Fortunately, adjusting a door closer is a straightforward task that you can often do yourself with just a few basic tools. This guide will walk you through everything you need to know, from identifying the different adjustment valves to fine-tuning your door’s closing speed for perfect performance. By the end of this post, you'll be able to get your door swinging just right.

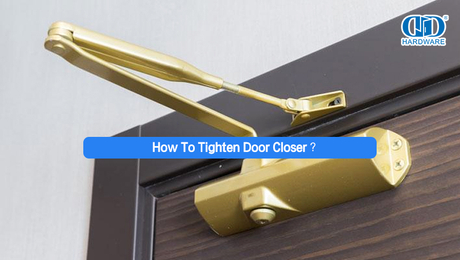

Before you start turning screws, it’s important to understand the basic mechanics of a typical hydraulic door closer. Most models you'll encounter on commercial or residential doors are surface-mounted at the top of the door frame. These devices use hydraulic fluid moving between chambers to control the door's movement.
When you open the door, a spring inside the closer is compressed, storing energy. When the door is released, that spring expands and pulls the door shut. The hydraulic fluid, passing through a series of valves, regulates the speed of this process. The adjustment screws on the body of the door closer control how quickly this fluid can move, thereby controlling the door's speed.
Most standard door closers have at least two main speed adjustments:
· Sweep Speed (or Closing Speed): This controls the main closing arc of the door, from the fully open position until it's about 6 to 12 inches from the latch.
· Latch Speed: This controls the final few inches of travel, ensuring the door latches securely into the frame without slamming.
Some more advanced models might have additional adjustments like back-check or delayed action, but for most basic adjustments, you'll be dealing with sweep and latch speed.
Adjusting a door closer doesn't require a full toolbox. In most cases, all you'll need is one of the following:
· A flathead screwdriver
· A Phillips head screwdriver
· An Allen wrench (hex key)
Check the adjustment screws on your door closer to see which tool you'll need. It's also a good idea to have a sturdy stepladder handy to safely reach the closer.
Now, let's get down to the adjustment process. Follow these steps carefully to tune your door's closing speed.
First, get on your stepladder and take a close look at the body of the door closer. You should see a diagram or stamped labels indicating what each screw does. If there isn't a diagram, you'll often find two or three adjustment screws.
· Sweep Speed Screw: This is often labeled with an "S" or "C." It controls the primary closing speed.
· Latch Speed Screw: This is typically labeled with an "L." It controls the speed for the last few inches.
· Back-Check Screw (if present): Labeled "BC," this valve controls the resistance when the door is opened forcefully, preventing it from slamming against a wall.
If the valves are hidden under a plastic cover, you may need to gently pry it off with a flathead screwdriver or simply slide it off.
Before you start turning screws, open and close the door a few times. Observe its current behavior. Does it slam shut? Or does it move so slowly that it fails to latch? Understanding the problem will help you know which valve to adjust and in which direction.
Remember that hydraulic door closers are sensitive. A small adjustment can make a big difference. A quarter-turn is often all you need. Never turn a screw more than a full rotation at a time without testing the door.
Important Safety Note: Do not unscrew any of the adjustment valves completely. Doing so can cause the hydraulic fluid to leak out and the internal mechanism to fail, ruining the door closer and potentially causing injury.
Let's start with the main closing speed.

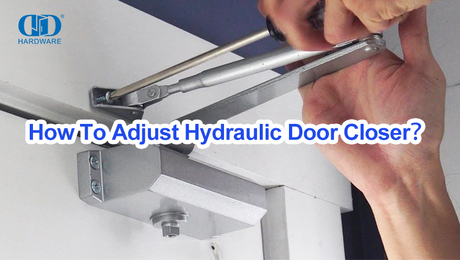

1.Insert your screwdriver or Allen wrench into the sweep speed valve (labeled "S" or "C").
2.To slow the door down: Turn the screw clockwise (to the right). This tightens the valve, restricting the flow of hydraulic fluid.
3.To speed the door up: Turn the screw counter-clockwise (to the left). This loosens the valve, allowing the fluid to flow more freely.
4.Make a small adjustment—no more than a quarter-turn.
5.Get off the ladder, open the door fully, and let it close. Observe the speed.
5.Repeat this process, making small adjustments and testing each time until the door closes at your desired speed for the main part of its swing. A good rule of thumb is for the door to take about 5-7 seconds to close from a 90-degree open position.
Once the sweep speed is set, it's time to fine-tune the final closing motion.
1.Locate the latch speed valve (labeled "L").
2.To decrease the latching speed (for a softer close): Turn the screw clockwise.
3.To increase the latching speed (for a stronger close): Turn the screw counter-clockwise. This is useful if the door isn't latching properly due to air pressure or a stiff lock.
4.Again, make a small quarter-turn adjustment.
5.Test the door by opening it just enough to engage the latching phase (about a foot from the frame) and letting it go.
6.Continue adjusting until the door clicks securely into the latch without slamming.
If your door closer has a back-check feature and the door is being thrown open too hard, you can adjust this setting.
1.Find the back-check valve (labeled "BC").
2.Turn the screw clockwise to increase the back-check cushioning, providing more resistance when the door is opened past a certain point (usually around 75 degrees).
3.Turn it counter-clockwise to decrease the resistance.
4.Test by opening the door with varying degrees of force to ensure it's protected from being slammed open.
Sometimes, a simple adjustment doesn't solve the problem. Here are some common issues and what they might mean:
· Adjusting the screws has no effect: If turning the valves doesn't change the door's speed, the seals inside the closer may have failed. This is a common sign that the unit needs to be replaced.
· Oil is leaking from the closer: This is a clear indicator that the seals are broken. The hydraulic fluid is essential for the closer to function. If you see oil on the closer body or dripping onto the floor, the unit is damaged beyond repair and must be replaced.
· The door makes a grinding or clicking noise: This could be an issue with the arm attachment or an internal mechanical failure. Check that all screws connecting the arm to the door and frame are tight. If the noise persists, the closer may need replacement.
· The closing speed changes with the temperature: Hydraulic fluid viscosity changes with temperature. It becomes thinner when it's warm (causing the door to close faster) and thicker when it's cold (slowing it down). You may need to make minor seasonal adjustments to your door closer.
A properly adjusted door closer is a mark of a well-maintained building. It provides convenience, safety, and a touch of professionalism. By following these steps, you can tackle this common maintenance task with confidence. Remember to work safely, make small adjustments, and test your work after each turn of the screw. With a little patience, you'll have your door closing perfectly in no time.
If you find that your door closer is leaking or unresponsive to adjustments, it’s time for a replacement. A new door closer is a worthwhile investment in the safety and functionality of your space.
