English Author: Site Editor Publish Time: 2024-05-23 Origin: Site

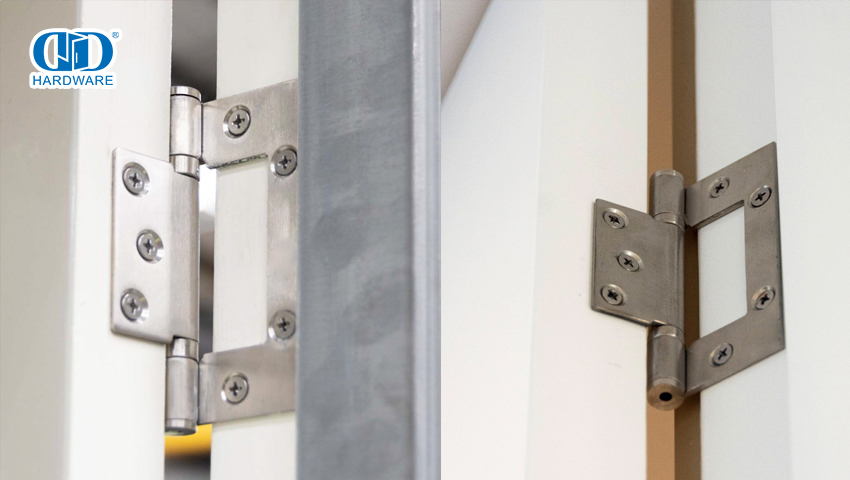

Installing non-mortise hinges can be a straightforward task if you have the right guidance. Unlike traditional hinges, non-mortise hinges provide a cleaner look and are easier to install because they don’t require cutting a mortise in the door or frame. In this guide, we will walk you through the steps and offer expert tips to ensure a seamless installation process.
Before purchasing non-mortise hinges, it is crucial to determine the right size and style for your project. Non-mortise Hinges come in various sizes, so make sure to measure your door and frame accurately before buying. It is also essential to select a hinge with a finish that matches your existing hardware or desired aesthetic.
Before you start, gather the following tools and materials:
Non-mortise hinges
Screws (usually come with the hinges)
Screwdriver or drill with a screwdriver bit
Measuring tape
Pencil
Level
Marking gauge or combination square
Begin by measuring the placement of the hinges. Standard practice is to place the top hinge about 5 inches from the top of the door and the bottom hinge around 10 inches from the bottom. If you’re installing a third hinge, place it centered between the top and bottom hinges.
1.Measure the Door: Use the measuring tape to mark the positions for the hinges on the door edge.
2.Mark the Frame: Transfer these measurements to the door frame, ensuring they align correctly.
Align each hinge with the marked positions on the door and the frame. Use a pencil to trace around the hinge leaves, marking the screw holes as well.
1.Position the Hinges: Place each hinge on the door edge, aligning it with your pencil marks.
2.Mark the Screw Holes: Use a pencil to mark the locations of the screw holes on the door and frame.
To prevent the wood from splitting, use a drill to pre-drill holes at the marked locations.
1.Choose the Right Drill Bit: Select a drill bit slightly smaller than the screws you will use.
2.Drill the Holes: Carefully drill pilot holes at each marked location.
Now it’s time to attach the hinges to the door and frame.
1.Position the Hinges: Place the hinge back in position, aligning the screw holes.
2.Insert the Screws: Use a screwdriver or drill to insert screws into the pre-drilled holes, securing the hinge to the door. Repeat this step to attach the hinge to the door frame.
Once all the hinges are attached, it's crucial to check the alignment of the door.
1.Test the Door: Open and close the door several times to ensure it moves freely and is aligned correctly.
2.Make Adjustments: If necessary, make small adjustments to the hinge positions to ensure a perfect fit.
Use a Level: Always use a level to ensure your markings and hinge placements are straight. An uneven installation can affect the door's performance.
Pre-drilling is Key: Never skip pre-drilling the holes. This step is essential to prevent the wood from splitting and to ensure a secure fit for the screws.
Use the Right Screws: Ensure the screws you use are appropriate for the thickness and type of your door and frame. Using the screws provided with the hinges is usually best.
Double-Check Measurements: Always double-check your measurements before drilling or screwing in the hinges. Small errors can lead to significant issues later on.
Lubricate Moving Parts: After installation, consider applying a small amount of lubricant to the hinge pin to ensure smooth operation over time.
Incorrect Placement: Placing hinges too close to the edge or too far apart can cause alignment issues.
Skipping Pilot Holes: Not pre-drilling can lead to splitting the wood, making the installation less secure.
Over-tightening Screws:Over-tightening can strip the screws or cause them to sink too deep, affecting the door's movement.
Not Checking Alignment:Failing to check the alignment after installation can lead to a door that doesn't close properly or sticks.
Non-mortise hinges are an excellent option for those looking for a sleek and easy-to-install hinge solution. With these expert tips and a few essential tools, you can successfully Install Non-mortise Hinges in your home projects. Remember always to measure carefully, pre-drill holes, and double-check your work for a seamless installation process. So why not give them a try? Your doors will thank you with smooth operation and improved aesthetic appeal!
