Creating a seamless, modern look in your home often comes down to the details. If you're working with angled walls or uniquely shaped cabinets, you might be wondering how to hang a door without visible hardware. This is where a concealed door hinge becomes your best friend. While installing them on a standard door is straightforward, fitting one to an angled door requires a bit more planning and precision.
This guide will walk you through everything you need to know about installing a concealed door hinge on an angled door. We'll cover the tools you'll need, a step-by-step installation process, and some key considerations to ensure you get a flawless finish. By the end, you'll have the confidence to tackle this project and achieve that clean, professional look you're after.

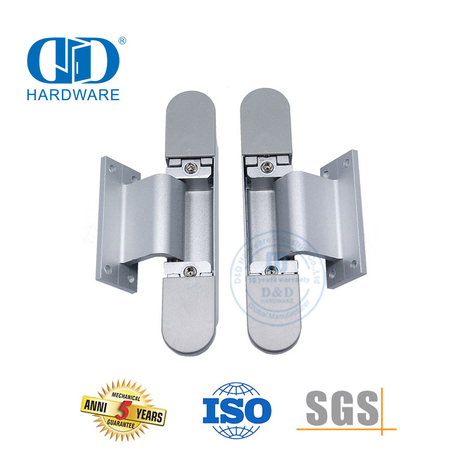

Before we get into the installation, let's quickly cover why concealed hinges, also known as European hinges or cup hinges, are so popular. Their primary advantage is that they are completely hidden from view when the door is closed. This creates a clean, uninterrupted surface that is perfect for modern and minimalist designs.
Beyond aesthetics, concealed hinges are highly adjustable. Most allow for three-way adjustments (up/down, left/right, in/out) even after the door is hung. This adjustability makes it much easier to get perfect alignment, which is especially useful for non-standard installations like angled doors.
Having the right tools is half the battle. Before you begin, gather the following items to make the process as smooth as possible:
Concealed door hinges: Make sure you have the correct type for your door's angle. Hinges are available for various angles, such as 30°, 45°, and even more specialized degrees.
Drill or drill press: A drill press offers the most accuracy for boring the cup hole, but a handheld drill with a steady hand will also work.
Forstner bit: You'll need a 35mm Forstner bit (the standard size for concealed hinge cups) to drill the main hole for the hinge.
Measuring tape and pencil: For accurate marking.
Combination square or protractor: Essential for getting your angles and lines just right.
Screwdriver or impact driver: For attaching the hinges to the door and cabinet frame.
Screws: The hinges will come with screws, but it's good to have extras on hand.
Safety glasses: Always protect your eyes when drilling and working with tools.
Test piece of wood: It's highly recommended to practice on a scrap piece of wood that matches your door material and thickness first.
Installing a concealed hinge on an angled door requires careful measurement and precise drilling. Follow these steps to ensure a successful installation.
The first step is to confirm you have the right hinge for your project. Angled concealed door hinges are specifically designed to accommodate non-90-degree cabinet corners. They often look similar to standard hinges but have a built-in angle in the mounting plate or hinge arm. Check the manufacturer's specifications to confirm the hinge matches the angle of your door and cabinet.
Use your protractor to measure the exact angle where your door will meet the cabinet frame. This will ensure you've purchased the correct hardware.
Once you have the right hinges, it's time to mark their positions on the door. A common practice is to place the hinges about 3-4 inches from the top and bottom of the door. If your door is particularly long or heavy, you may need a third hinge in the center for extra support.
Measure and Mark: Use your measuring tape to mark the center point for each hinge along the door's edge. For example, measure 4 inches down from the top and make a small pencil mark.
Set the Backset: The "backset" is the distance from the edge of the door to the edge of the 35mm cup hole. This is a critical measurement. Most hinges require a backset of 3-6mm. The hinge instructions will specify the exact distance. Use your combination square to draw a line parallel to the door's edge at the required backset distance.
Finalize the Center Point: The intersection of your first mark (the hinge height) and your second mark (the backset line) is the exact center point where you will drill the cup hole.
This is the most crucial step, where precision is key. A misplaced or crooked hole can ruin the door.
Set the Drill Depth: The 35mm cup hole needs to be deep enough for the hinge to sit flush, but not so deep that you drill through the other side of the door. The typical depth is around 11-13mm. An easy way to control this is to use a drill stop on your Forstner bit. If you don't have one, you can wrap a piece of tape around the bit at the correct depth as a visual guide.
Drill the Hole: Align the center point of your Forstner bit with the mark you made on the door. Keeping the drill perfectly perpendicular to the door's surface, drill the hole to the required depth. Take your time and let the bit do the work. If using a handheld drill, focus on keeping it steady and straight.
Clear Debris: Once drilled, clear out any wood shavings from the hole.
With the cup hole drilled, you can now install the hinge.
Insert the Hinge: Place the cup of the concealed door hinge into the hole you just drilled.
Align and Secure: Make sure the hinge arm is square to the edge of the door. Use your combination square to check the alignment. Once you're happy it's straight, use your screwdriver to secure the hinge with the two small screws that go into the door face.
Now, you'll attach the corresponding mounting plate to the inside of the cabinet frame. The position of this plate determines how the door hangs and aligns.
Determine Position: The hinge instructions will provide a diagram showing how to calculate the mounting plate's position based on the door's overlay (how much the door covers the cabinet frame).
Mark and Drill: Use your measurements to mark the screw locations for the mounting plate on the angled cabinet surface. It can be helpful to hold the door in position temporarily to visualize where the plate needs to go.
Attach the Plate: Screw the mounting plate securely onto the cabinet frame.
This is the moment of truth. It's time to connect the door to the cabinet.
Connect Hinge and Plate: Most modern concealed hinges have a clip-on mechanism. Align the hinge arm on the door with the mounting plate on the cabinet and push until it clicks into place.
Check Alignment: Close the door and check its alignment. Does it close flush? Is the gap around the door even? It will likely need some adjustments.
Fine-Tune: Use the adjustment screws on the hinge to fine-tune the door's position. There are typically three screws:
Side-to-Side: Adjusts the door left or right.
Height: Moves the door up or down.
Depth: Pushes the door closer to or further from the cabinet frame.
Make small adjustments one at a time until the door sits perfectly. Patience is your best ally here.
Installing a concealed door hinge on an angled door is a project that rewards precision and patience. By taking the time to understand your hardware, measure accurately, and make careful adjustments, you can achieve a seamless and professional-looking installation. This small detail can elevate the design of your space, giving your cabinets a clean, custom-built appearance that stands out.
Ready to take on your next woodworking challenge? With this guide, you have all the information you need to successfully fit your angled doors with hidden hinges.
