English Author: Site Editor Publish Time: 2026-01-06 Origin: Site
Have you ever struggled to close a front door that drags against the floor, or noticed a gap at the top of the frame letting in a draft? While many homeowners blame the door jamb or the weather stripping, the culprit is often the hardware. Specifically, the door may not have enough support.
The hinges are the unsung heroes of your entryway. They carry the entire weight of the door, allowing it to swing freely while keeping it secure against the elements and potential intruders. Because exterior doors are significantly heavier and thicker than interior hollow-core doors, getting the hinge count right is a matter of safety and longevity, not just aesthetics.
Determining the correct number of hinges involves looking at the door's height, width, and weight. This guide will help you calculate exactly what your installation requires to operate smoothly for years to come.
The most common method for determining hinge count is based on the height of the door. As a door gets taller, it creates more leverage against the top hinge, requiring more support to prevent sagging.
For standard residential and commercial doors, the industry standard follows a simple ratio: one hinge for every 30 inches of door height or fraction thereof.
The table below outlines the recommended number of exterior door hinges based on standard door heights:
Door Height | Number of Hinges | Typical Application |
|---|---|---|
Up to 60 inches (5 ft) | 2 Hinges | Access panels, short storage doors |
60 to 90 inches (up to 7.5 ft) | 3 Hinges | Standard residential entry doors |
90 to 120 inches (up to 10 ft) | 4 Hinges | Luxury entryways, commercial warehouses |
Over 120 inches | 5+ Hinges | Industrial or custom architectural doors |
While three hinges are sufficient for the standard 7-foot door found in most homes, moving up to four hinges provides better alignment and reduced wear on the hardware over time.
While height is a good starting point, it is not the only factor. Exterior doors are often made of solid wood, steel, or fiberglass. They are designed to withstand wind, rain, and temperature changes, making them significantly heavier than interior doors.
If your door is wider than the standard 36 inches, or if it is exceptionally heavy (over 150 lbs), you should consider adding an extra hinge regardless of the height.
As a door gets wider, the center of gravity moves further away from the hinge barrel. This increases the horizontal stress on the top hinge.
Up to 36 inches wide: Follow the standard height chart above.
37 to 48 inches wide: Add one extra hinge to the standard recommendation.
Over 48 inches wide: Consult a hardware specialist, as pivot hinges or floor closers might be necessary.
In commercial and public settings, the calculation changes. You must account for the frequency of use and the potential for abuse. High-traffic environments require robust hardware solutions that go beyond the bare minimum.

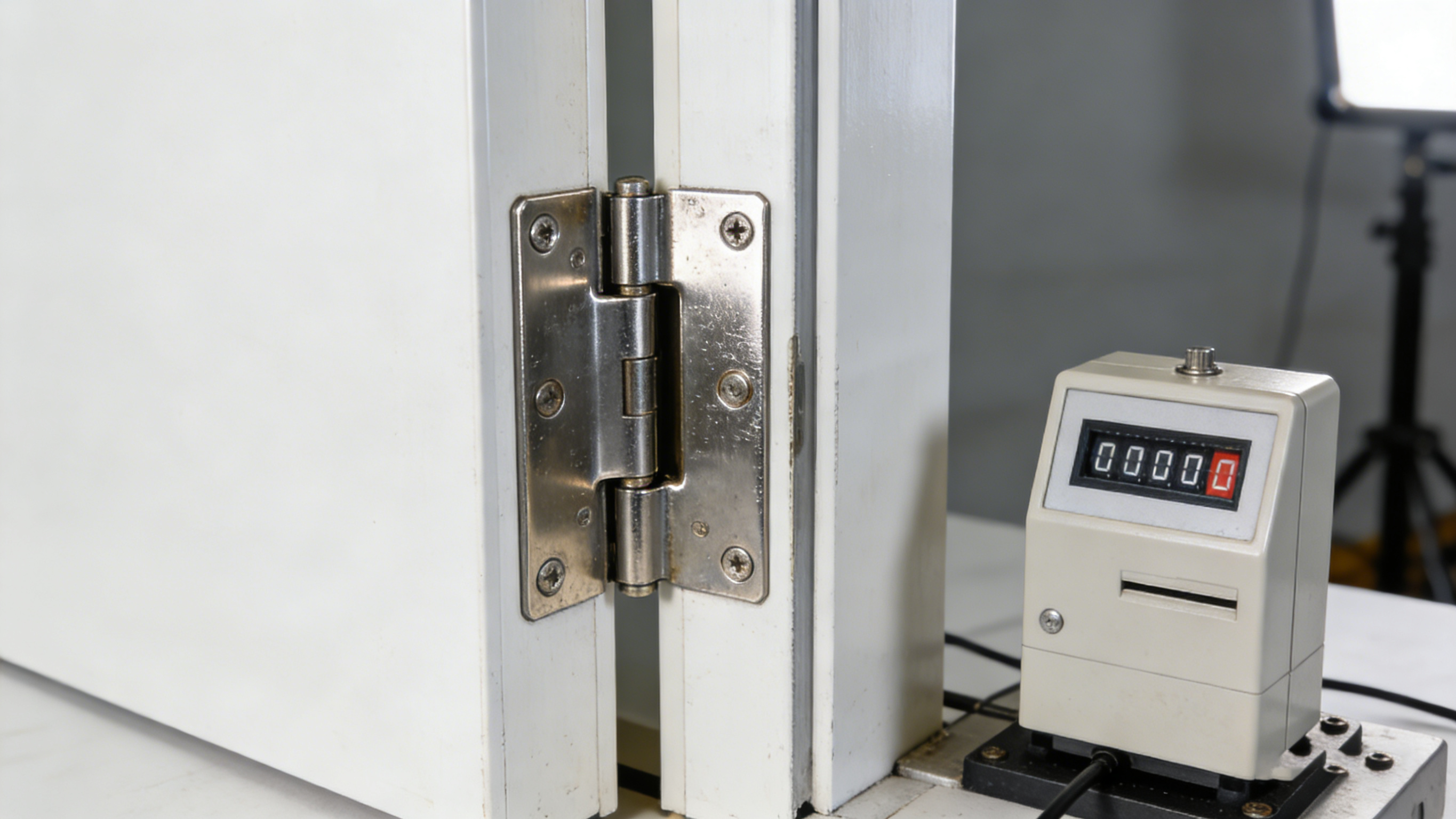

Schools and universities see thousands of door cycles per week. Educational Institution door hinges must withstand constant opening and closing, as well as the inevitable misuse—such as students leaning on doors or backpack straps getting caught in the swing.
For schools, it is common practice to install four hinges on a standard 7-foot exterior door rather than the usual three. This "safety hinge" approach distributes the stress more evenly and prevents the door from ripping out of the frame during heavy usage.
Hospitals and clinics face different challenges. Medical institutions door hinges often need to support doors that are much wider than average to accommodate hospital beds, wheelchairs, and medical equipment. Additionally, doors in X-ray rooms are lined with lead, making them incredibly heavy.
In these scenarios, relying solely on door height is dangerous. A lead-lined door might be standard height but weigh 300 lbs or more. These installations often require heavy-duty, ball-bearing hinges made of high-grade stainless steel to handle the load without grinding or failure.
Once you know how many hinges you need, placing them correctly is the next step. Improper spacing can lead to warping, even if you have the correct number of hinges.
The standard spacing for exterior doors is designed to maximize support where gravity exerts the most force:
Top Hinge: Locate this 5 to 7 inches from the top of the door frame. This hinge carries the majority of the tensile load (pulling force).
Bottom Hinge: Locate this 10 to 11 inches from the bottom of the finished floor. This hinge handles the compressive load (pushing force) and stabilizes the door.
Intermediate Hinges: Space these equally between the top and bottom hinges.
If you are adding a fourth hinge to a standard door for extra support, you have two options for placement:
Equally spaced: Good for general stability and aesthetics.
High frequency: Place the extra hinge near the top hinge (about 6-8 inches below it). This doubles the support at the point of highest stress, which is excellent for heavy solid-core doors.
1
Q: Can I replace a 3-hinge door with 4 hinges?
A: Yes, but it requires cutting a new mortise (recess) into both the door edge and the frame. This is a great upgrade for heavy doors that sag, but it requires precise woodworking skills.
Q: What material should I use for exterior hinges?
A: For exterior applications, always choose materials that resist corrosion. Stainless steel (Grade 304 or 316) or solid brass are the best choices. D&D Hardware offers ANSI/UL certified stainless steel hinges specifically designed to resist rust and maintain structural integrity in harsh weather.
Q: Do ball-bearing hinges make a difference?
A: Absolutely. Standard hinges rely on metal-on-metal friction. Ball-bearing hinges have small bearings between the knuckles that reduce friction. For any heavy exterior door, ball-bearing hinges are essential for smooth operation and to prevent the metal dust (black powder) that forms when standard hinges wear down.
Calculating the number of hinges is not just a math problem; it is a security measure. An under-supported exterior door is easier to kick in and more likely to fail during a fire or emergency.
Whether you are outfitting a private residence, a school, or a hospital, always err on the side of caution. If a door falls on the borderline between three and four hinges, choose four. Using high-quality, certified hardware like the ANSI/BHMA and UL-rated options from D&D Hardware ensures that your exterior doors remain safe, functional, and secure for the life of the building.
