Whether you're replacing a broken door hinge, upgrading your hardware for a fresh look, or undertaking a brand-new installation, getting the measurements right is the most critical first step. A hinge that’s even slightly off can lead to a door that won’t close properly, sticks, or hangs unevenly. It’s a small detail that makes a huge difference in both function and appearance.
This guide will walk you through the entire process of measuring a door hinge correctly. We’ll cover the essential measurements you need to take, the tools you’ll need, and the common hinge types you might encounter. By the end, you'll have the confidence to select the perfect replacement hinge every time, ensuring your door operates smoothly for years to come.
Before you begin, gather a few simple tools to make the process quick and accurate. Having these on hand will save you from running back and forth to your toolbox.
· Tape Measure or Ruler: A quality tape measure is essential. A rigid steel ruler can also work well, especially for smaller hinges.
· Screwdriver or Drill: You will need this to remove the existing hinge from the door and frame if you're measuring a replacement. A manual screwdriver gives you more control and reduces the risk of stripping screws.
· Pen and Paper: Don't rely on memory. Write down every measurement as you take it to avoid confusion when you're ready to buy your new hardware.
· Safety Glasses: It's always a good practice to protect your eyes, especially when working with tools and removing hardware.
Measuring a door hinge involves three key dimensions: the height, the width, and the corner radius. For certain hinge types, you might also need to measure the backset. Let's break down each step.
For the most accurate measurements, it’s best to remove the hinge from the door. While you can measure it in place, taking it off allows you to lay it flat and measure without obstruction.
1.Support the Door: If you're removing all the hinges, have someone help you hold the door, or use wedges to prop it up securely. If you’re only removing one hinge at a time, the others should hold the door in place.
2.Unscrew the Hinge: Using your screwdriver or drill, carefully remove the screws from the door frame (jamb) first, then from the door itself.
3.Lay it Flat: Place the hinge on a flat, stable surface, like a workbench or table, with the hinge fully open.
The height is the most common measurement used to identify a door hinge. It is measured along the side parallel to the pin.

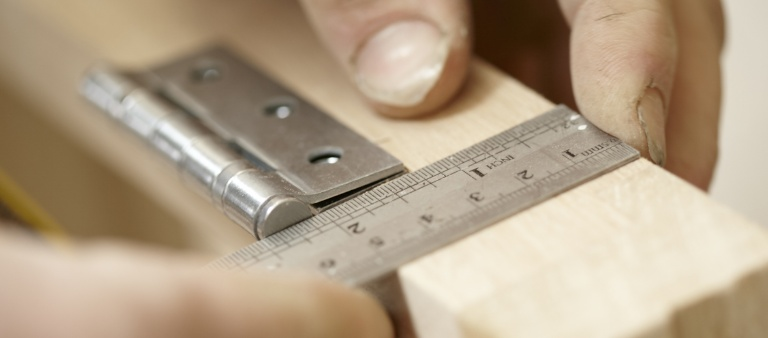

· How to Measure: With the hinge open and flat, place your tape measure along the edge that runs from top to bottom. Measure the full length of the hinge leaf.
· Common Sizes: For residential interior doors, the most common hinge height is 3.5 inches. For exterior or heavier doors, you’ll often find 4-inch or even 4.5-inch hinges. Commercial doors may use even larger sizes.
The width is the total measurement across the hinge when it’s fully open and flat.
· How to Measure: Lay the hinge flat and measure from the outer edge of one leaf to the outer edge of the other.
· Important Note: Do not measure the width of a single leaf. The standard measurement is the full "open width" of the entire hinge. Like height, standard widths for residential doors are typically 3.5 inches or 4 inches. It’s common for a door hinge to be square (e.g., 3.5" x 3.5"), but this isn't always the case.
Most residential door hinges have rounded corners to fit into the mortise (the recessed area) cut by a router. Measuring this radius is crucial for a snug fit. If your new hinge has a different corner radius, it won't sit flush in the existing cutout.
· How to Measure: The radius refers to the curvature of the corners. The two most common options are a 1/4-inch radius and a 5/8-inch radius. Some hinges are square-cornered.
· A Simple Trick: If you're unsure, use coins to identify the radius.
A dime fits almost perfectly into the curve of a 1/4-inch radius corner.
A quarter fits neatly into the curve of a 5/8-inch radius corner.
· If neither coin fits and the corner is a perfect 90-degree angle, you have a square-corner hinge.
While less of a primary measurement, the screw hole pattern is important for a simple replacement. Most standard hinges use a "zigzag" or "arc" pattern.
· How to Check: Look at the arrangement of the screw holes on your old hinge. A new hinge with the same pattern will allow you to use the existing holes, making installation much easier and preventing the need to drill new ones.
· When buying a replacement, bring a photo of your old hinge or the hinge itself to the store to find a matching pattern.
The backset is the distance from the edge of the door to the routed mortise where the hinge sits. While this is a measurement of the door itself rather than the hinge, it’s good to be aware of. For standard pre-hung doors, this is usually standardized, but for custom doors, it can vary. A consistent backset on all hinges ensures the door hangs straight.
Not all hinges are the same. Here’s a quick overview of what you might encounter:
· Butt Hinge: The most common type found on residential doors. It consists of two leaves joined by a pin. Our measuring guide is primarily for this type.
· Ball-Bearing Hinge: Similar to a butt hinge but with small ball bearings between the knuckles. This design reduces friction, making it ideal for heavy or high-traffic doors. They are measured in the same way.
· Spring-Loaded Hinge (Self-Closing): These hinges automatically close the door. They look bulkier around the pin area to house the spring mechanism. When replacing these, it’s important to match the tension capabilities as well as the size.
· Removable vs. Non-Removable Pin: Most interior door hinges have a removable pin, allowing you to take the door off its frame without unscrewing the hinges. Security hinges, often used for exterior doors that swing outward, have non-removable pins to prevent break-ins.
Before you head to the hardware store or shop online, double-check your notes. You should have the following information written down:
· Height: (e.g., 3.5 inches)
· Width: (e.g., 3.5 inches)
·Corner Radius: (e.g., 1/4", 5/8", or square)
· Screw Hole Pattern: (A quick sketch or photo)
· Finish/Color: (e.g., satin nickel, oil-rubbed bronze, brass)
Having these details on hand will make your shopping trip efficient and successful.
Occasionally, you might find that your door hinge doesn’t match common sizes, especially in older homes. If this happens, you have a few options:
1.Search Specialty Hardware Stores: Look for retailers that specialize in vintage or custom hardware.
2.Order a Custom Hinge: Some manufacturers can create hinges to your exact specifications, though this is a more expensive option.
3.Modify the Mortise: If the size difference is small, you can carefully adjust the mortise on the door and frame with a chisel to fit a new, standard-sized hinge. This requires patience and a steady hand but is a very practical solution.
Measuring a door hinge might seem like a minor task, but precision is everything. By following these steps, you can confidently identify the right size and type of hinge for your project. Taking a few extra minutes to measure correctly will save you from the frustration of a poorly hung door and ensure a professional-quality result. Now, you’re ready to choose your new hardware and give your door the seamless function it deserves.
