Healthcare Facility Door Hardware Guide: Selecting Locks & Closers for Medical Institutions

Door hardware in hospitals and medical institutions is not a commodity purchase — it is a safety-critical specification. The right mortise lock for a medical institution must resist microbial growth, operate quietly enough to avoid disturbing patient rest, comply with emergency egress codes, and endure thousands of daily cycles without failure. The right hospital door closer must close doors with controlled, silent force — protecting infection control zones while remaining operable by staff moving at speed with both hands occupied.

This guide covers everything hospital facility managers and medical building contractors need to know when specifying door locks, door closers, and fire-rated door hardware for patient rooms, general hospitals, and broader healthcare campuses.

Why Door Hardware Requirements Are Different in Medical Institutions

Standard commercial door hardware is not sufficient for healthcare environments. Medical institutions impose a distinct set of performance demands that go beyond typical commercial or residential applications.

• Hygiene and antibacterial surfaces: Door hardware in hospitals is touched hundreds of times per day by patients, clinicians, and visitors. Surfaces must resist bacterial colonization. Stainless steel and antimicrobial coatings are preferred over painted or zinc-alloy finishes for this reason.

• Low-noise operation: Patient rooms, ICUs, and recovery wards require hardware that operates with minimal sound. Loud latches or slamming closers disturb sleep and recovery.

• Emergency egress compliance: Locks on patient room doors and corridor doors must comply with NFPA 101 (Life Safety Code) and local equivalents, ensuring free egress during emergencies without requiring special knowledge or effort.

• High-cycle durability: A hospital door in a busy ward may open and close 200–500 times per day. Hardware must be rated for millions of cycles — not the 250,000 cycles typical of light commercial hardware.

• Fire and smoke control: Corridor and stairwell doors in hospitals are required to be fire-rated. Hardware — including closers, latches, and hinges — must carry matching fire ratings (e.g., UL 10C positive-pressure fire-rated certification).

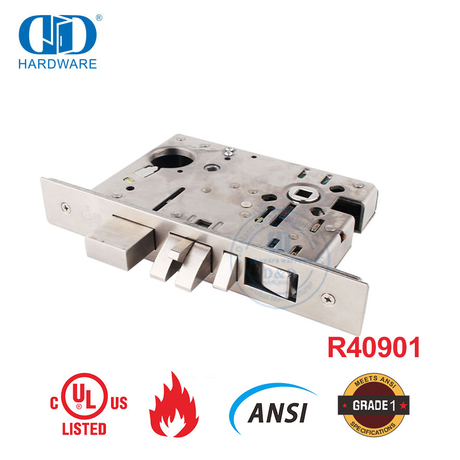

What Type of Lock Is Best for a Hospital Patient Room?

The mortise lock is the industry-standard choice for hospital patient rooms and general hospital doors. Mortise locks offer a recessed body that integrates latch, deadbolt, and privacy functions into a single robust unit — making them more durable and tamper-resistant than cylindrical locks under repeated high-frequency use.

Key Mortise Lock Requirements for Medical Institutions

When specifying a mortise lock for medical institutions, facility managers should evaluate:

1. Lever handle design: Lever handles are required over knobs in healthcare settings under ADA (Americans with Disabilities Act) and equivalent accessibility codes. Levers allow operation with a closed fist or forearm — critical for staff carrying equipment or wearing gloves.

2. Material and finish: Grade 316 stainless steel offers superior corrosion and bacterial resistance compared to brass or zinc alloy. Satin stainless (finish 32D) is the healthcare standard — it conceals scratches that harbor bacteria.

3. Function type by room:

• Patient rooms: Passage or privacy function (interior privacy with emergency override) is appropriate.

• Medication rooms and nurse stations: Storeroom or office function with key-locking exterior.

• Operating theaters and procedure rooms: Classroom or asylum function with key control on both sides.

• Emergency exits and egress corridors: Mortise locks integrated with panic hardware or compliant with ANSI A156.3 exit device standards.

4. Certification grade: Specify ANSI/BHMA Grade 1 (the highest commercial grade, rated for 1,000,000 cycles) for all high-traffic hospital doors. European projects should reference EN 12209 Grade 1 equivalents.

5. Antibacterial coating or material: Some manufacturers offer silver-ion or copper-alloy antibacterial coatings as an add-on. Where antimicrobial hardware is specified, verify independent testing data (e.g., ISO 22196) rather than relying solely on marketing claims.

D&D Hardware's stainless steel mortise locks (view range) are certified to EN 12209 and ANSI standards, manufactured from corrosion-resistant stainless steel suitable for the hygiene demands of healthcare environments.

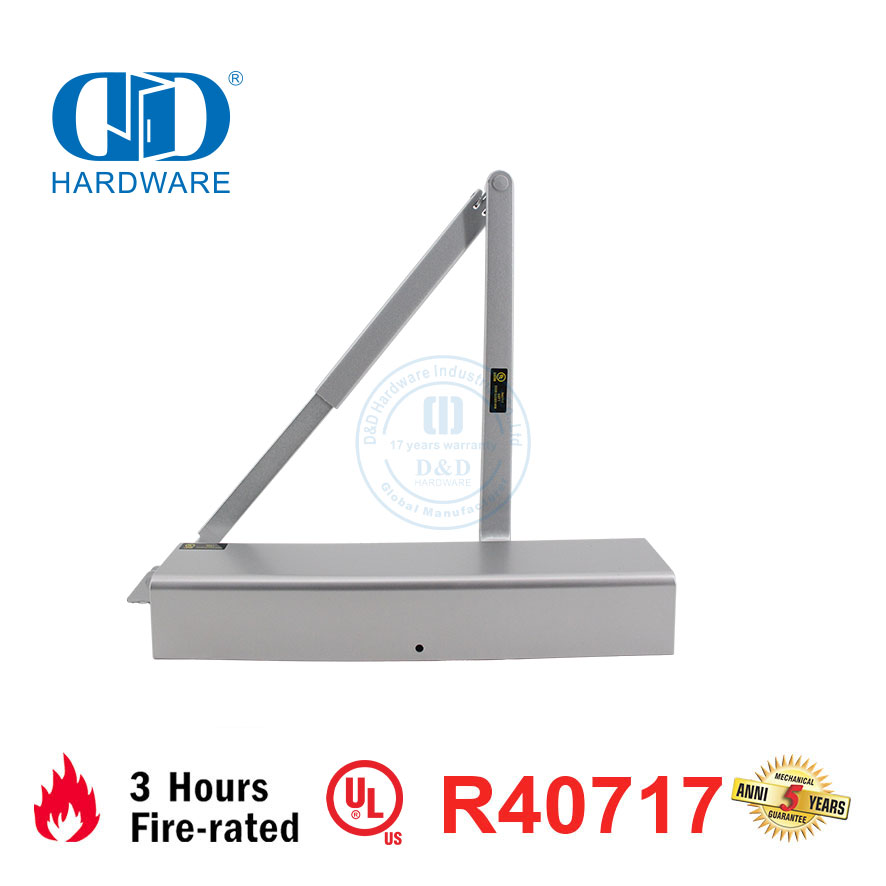

How to Choose a Hospital Door Closer

A hospital door closer must close fire-rated and infection-control doors reliably, quietly, and with controlled backcheck — without creating a barrier to patients or staff moving under pressure.

Types of Door Closers Used in Healthcare Settings

Critical Performance Criteria for a Hospital Door Closer

1. Closing force (EN 1154 / ANSI A156.4): Closers must be set to the minimum force sufficient to latch the door. Excessive closing force creates a barrier for elderly patients, those in wheelchairs, or staff moving IV stands. EN 1154 Grade 3–4 is typically appropriate for patient room doors; Grade 5–6 for heavy fire-corridor doors.

2. Backcheck function: Backcheck prevents doors from being slammed open by staff moving quickly, which protects both the door frame and individuals in the door's path.

3. Delayed action / hold-open function: In areas where staff frequently move between rooms with both hands occupied, a hold-open or delayed-action closer allows the door to remain open briefly before closing.

4. Noise suppression: Hydraulic closers with adjustable latch speed allow facility managers to dial in a near-silent final closing action — critical in quiet patient wards.

5. Fire-rated certification: For fire-rated doors, the closer must carry a matching fire certification. UL 10C (positive-pressure fire test) is the standard in North America. CE-marked closers meeting EN 1154 are required in European healthcare projects.

D&D Hardware's UL 10C-certified door closers (view range) are engineered for high-cycle commercial environments and are compatible with fire-rated door assemblies in hospital settings.

Fire-Rated Door Hardware for Patient Rooms and Hospital Corridors

Fire-rated door hardware for a patient room or hospital corridor must be certified to the same fire-resistance rating as the door itself. Mixing a 90-minute fire-rated door with non-rated hardware voids the assembly's rating and fails code inspection.

What Qualifies as Fire-Rated Door Hardware?

To maintain a compliant fire door assembly in a hospital, the following components must each carry appropriate certifications:

• Mortise lock or latch: Must be listed for use on fire-rated doors. UL 10C (positive-pressure) certification is the North American benchmark.

• Door closer: Must be UL-listed or EN 1154-certified and specified as a fire door closer. Fire doors must be self-closing and self-latching.

• Hinges: Must be steel or stainless steel with a fire rating matching the door. Ball-bearing hinges rated to UL 10C are standard for hospital fire doors. See D&D's ANSI/UL BHMA-certified hinge range (view range).

• Panic exit devices: On fire-rated egress doors in hospitals, panic bars must meet both UL 10C (fire) and ANSI A156.3 (panic hardware) requirements. D&D's UL 10C panic bar range (view range) covers these applications.

• Seals and gasketing: Intumescent seals around the door perimeter are required on most fire-rated assemblies to prevent smoke infiltration — particularly critical in hospital patient zones.

1

Fire Door Zones in a General Hospital

Different areas of a general hospital carry different fire-rating requirements:

• Stairwells and fire corridors: Typically 90-minute rated assemblies with fully certified hardware sets.

• Patient room doors opening onto rated corridors: Often 20-minute or 45-minute rated, depending on jurisdiction and construction type.

• Operating suite and ICU corridor doors: Consult local authority having jurisdiction (AHJ); often 60–90-minute rated.

• Utility and mechanical rooms: Typically 90-minute rated doors with self-closing hardware.

Always verify requirements with your local AHJ and the project's fire protection engineer before finalizing hardware specifications.

Room-by-Room Hardware Recommendations for Healthcare Facilities

Patient Room Doors

• Lock function: Privacy with emergency override (coin-turn or ligature-resistant thumbturn inside; emergency release outside)

• Lever style: Anti-ligature lever recommended in behavioral health units

• Closer: Concealed or surface overhead closer, Grade 3–4, with delayed action

• Finish: Satin stainless steel (32D)

• Fire rating: 20–45 minute where required by code

ICU and Isolation Rooms

• Lock function: Storeroom or office function — controlled key access, free egress

• Additional consideration: Glazed vision panels with coordinated hardware

• Closer: Overhead closer with backcheck; door must seal against the frame for infection control

• Finish: Stainless steel; antimicrobial hardware preferred

Medication Rooms and Pharmacy

• Lock function: Storeroom function; access control integration possible

• Closer: Self-closing required; Grade 4–5

• Compliance note: DEA and local pharmacy board regulations may impose additional access control requirements

Emergency Exits and Egress Corridors

• Hardware: UL 10C-listed panic exit device integrated with fire-rated mortise lock or rim device

• Closer: UL 10C-listed, self-closing and self-latching

• Compliance: NFPA 101 Chapter 18/19 (healthcare occupancy); ANSI A156.3

Restrooms and Patient Bathrooms

• Lock function: Privacy with emergency override — critical for patient safety

• Closer: Optional; if fitted, set to minimum closing force for accessibility

• Lever: ADA-compliant lever handle

Compliance Standards Reference for Hospital Door Hardware

Facility managers and contractors specifying hardware for medical institutions should reference the following standards:

D&D Hardware products carry CE, UL, ANSI, and BHMA certifications (view certificates), covering the primary compliance requirements for both North American and European healthcare projects.

Frequently Asked Questions

Q: What is the best lock finish for hospital environments?
Satin stainless steel (ANSI finish 32D) is the preferred finish for hospital door hardware. It resists corrosion, tolerates repeated cleaning with hospital-grade disinfectants, and conceals surface scratches that can harbor bacteria — unlike polished or painted finishes.

Q: Can a standard commercial door closer be used on a hospital fire door?
No. A standard commercial closer is not sufficient for a fire-rated door in a hospital. The closer must carry a specific fire certification (UL 10C in North America, or EN 1154 fire-rated designation in Europe) and must be installed as part of a fully listed fire door assembly. Using a non-rated closer on a fire door voids the assembly's rating.

Q: Do hospital patient room locks need to be ligature-resistant?
In general medical and surgical wards, standard anti-ligature design (rounded levers, no exposed screws) is typically sufficient. In behavioral health units, psychiatric wards, and areas housing patients at risk of self-harm, fully certified ligature-resistant hardware — tested to specific pull, torque, and load standards — is required. Confirm requirements with your clinical risk team and AHJ.

Q: How many cycles should hospital door hardware be rated for?
For high-traffic hospital applications, specify ANSI/BHMA Grade 1 hardware, rated for a minimum of 1,000,000 cycles. Door closers should be rated to EN 1154 Grade 6 or equivalent for the most demanding hospital corridor applications. Lower-grade hardware will fail prematurely under hospital traffic volumes, increasing lifecycle maintenance costs.

Q: What is the difference between a passage lock and a storeroom lock for patient rooms?
A passage lock has no locking function — the latch retracts freely from either side, suitable for non-secured patient room doors. A storeroom lock is locked from the outside at all times and opens only by key, while remaining freely operable from the inside — used for medication rooms, pharmacies, and controlled-access clinical areas. Patient rooms with privacy requirements typically use a privacy function lock, which allows the occupant to lock the door from inside with an emergency override from outside.

Why Specify D&D Hardware for Healthcare Projects?

D&D Hardware Industrial Co., Ltd. is an ISO 9001-certified manufacturer with 18 years of OEM experience supplying CE, UL, ANSI, and BHMA-certified door hardware to commercial and institutional projects worldwide. D&D's stainless steel mortise locks, UL 10C-listed door closers, and fire-rated panic exit devices are engineered to meet the hygiene, durability, and quiet-operation requirements that medical institutions demand — at factory-direct pricing without compromising on international certification standards.

• Stainless steel mortise locks: View range

• UL 10C door closers: View range

• Fire-rated panic exit hardware: View range

• ANSI/UL BHMA door hinges: View range

For project-specific hardware schedules, OEM specifications, or technical support, contact D&D Hardware at sales@danddhardware.com or +86 139 2903 7292.
