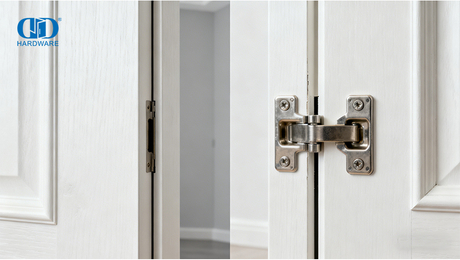

​Can Concealed Hinges Be Used with Partially Inset Doors?

When designing or refurbishing cabinetry, the choice of hinges is a critical decision that impacts both aesthetics and functionality. Among the most popular choices are concealed hinges, celebrated for their clean, invisible look when the door is closed. But a common question arises among homeowners, carpenters, and DIY enthusiasts: Can concealed hinges be used with partially inset doors?

The short answer is a resounding yes. Not only is it possible, but it is also a very common and effective application. However, achieving a perfect fit requires a clear understanding of door overlay types, the correct hinge selection, and precise installation. This article will delve into everything you need to know about using concealed hinges with partially inset doors.

Understanding Door Overlay Types

First, let's clarify what a "partially inset door" is. In cabinet terminology, this is more commonly known as a Partial Overlay or Half Overlay door. The "overlay" refers to how much the door covers the cabinet's face frame.

There are three primary types:

1. Full Inset: The door sits completely inside the cabinet frame, flush with its front surface.

2. Full Overlay: The door completely covers the cabinet's face frame, meeting adjacent doors in the center.

3. Partial Overlay: The door partially covers the face frame, leaving a portion of the frame visible between adjacent doors. This is a classic look for traditional or transitional-style kitchens.

It is this Partial Overlay application where the use of concealed hinges must be carefully considered.

The Mechanics: How Concealed Hinges Adapt to Partial Overlay

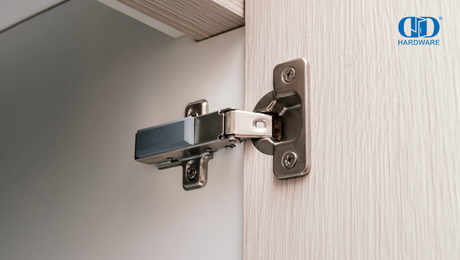

Concealed hinges, also known as European cup hinges, are incredibly versatile. Their adaptability comes from two key features:

1. The Mounting Plate (Arm): The hinge cup is mounted on the door, and the mechanical arm attaches to a mounting plate screwed onto the cabinet's interior. This plate is the primary adjustment point.

2. Adjustability: Modern concealed hinges offer micro-adjustments in three planes:

• In/Out: To ensure the door is flush with the frame.

• Up/Down: For perfect vertical alignment.

• Left/Right: To set the desired gap between doors.

For partial overlay doors, you must select a hinge specifically designed for this overlay measurement. The hinge's mounting plate and the way the arm bends are engineered to hold the door at the correct distance from the cabinet edge, creating that characteristic reveal of the face frame.

Choosing the Right Concealed Hinge for Partial Overlay Doors

Not all concealed hinges are created equal. When purchasing, you must look for the hinge's specified "overlay." This is typically measured in millimeters.

Key Considerations:

• Overlay Measurement: Measure how much of the face frame you want the door to cover. Common partial overlay measurements range from 1/2" to 1.5" (approximately 13mm to 38mm). You must buy hinges that match this measurement.

• Hinge Type: Look for packaging that explicitly states "Partial Overlay" or lists a specific overlay value (e.g., "26mm Overlay").

• Door Thickness: Ensure your cabinet door is thick enough to accommodate the hinge's cup hole, which is typically 35mm in diameter. Most cabinet doors are 3/4" thick, which is sufficient.

Installation Nuances and Challenges

While the process is similar to installing other concealed hinges, precision is paramount for partial overlay doors.

Steps for Success:

1. Precise Marking: Accurately mark the location for the 35mm cup hole on the door. The distance from the edge of the door to the center of the cup hole will be determined by the hinge's specifications.

2. Correct Mounting Plate Positioning: The mounting plate must be positioned on the cabinet interior at the exact location specified for your hinge's overlay. Even a small error here will result in misaligned doors and an incorrect reveal.

3. Utilize Adjustments: After initial installation, use the hinge's built-in adjustment screws to fine-tune the door's position. This is where you can perfect the gaps and ensure all doors are aligned.

Potential Challenge: The most common issue is miscalculating the overlay, leading to doors that are too close together or too far apart, disrupting the symmetrical look of the face frame reveal.

Benefits of Using Concealed Hinges for Partial Overlay Doors

Why go through the trouble? The benefits are significant:

• Clean Aesthetics: Even in a traditional partial overlay setting, the hidden mechanism of concealed hinges provides a clean, uncluttered look free of visible hinge hardware.

• Superior Functionality: They often feature a soft-closing mechanism, preventing doors from slamming and increasing the longevity of your cabinets.

• Full Adjustability: Unlike many traditional hinges, concealed hinges allow for corrections after installation, which is a lifesaver for achieving a professional finish.

• Wide Opening Angle: They typically allow the door to open to 110 degrees or more, providing excellent access to the cabinet's interior.

Comparison Table: Concealed Hinges for Different Door Types

The table below summarizes how concealed hinges are used across different cabinet door styles.

Conclusion

So, can concealed hinges be used with partially inset doors? Absolutely. They are a fantastic choice that marries the timeless look of a partial overlay design with the modern performance and sleek aesthetics of hidden hardware. The key to success lies in selecting the correct hinge with the precise overlay measurement and executing the installation with care. By paying attention to these details, you can achieve a professional, high-quality result that combines the best of both form and function for your cabinetry.
