Securing your home starts with understanding the hardware that keeps your doors firmly shut. When you turn your key at the end of a long day, a complex mechanical process happens in a fraction of a second. This process relies entirely on a small but incredibly important component hidden within your door hardware.
Residential building lock cylinders are the core mechanism in door locks, housing pins that align via key insertion to allow rotation and bolt movement. Without a highly functioning cylinder, even the heaviest, most durable door cannot provide adequate security for your family and belongings. Understanding how this component operates gives you a significant advantage when upgrading your home security or replacing damaged hardware.
This guide will explain the inner workings of different lock types. You will learn how to select the right hardware for different areas of your home, identify the most common industry standards, and make informed decisions about your property's security.
At a fundamental level, the lock cylinder is the brain of your door's security system. It consists of a central plug that rotates within an outer shell. Inside this shell is a series of spring-loaded pins of varying lengths. When the correct key slides into the keyway, the jagged edges of the key push these pins upward.
Once all the pins align perfectly at the "shear line"—the gap between the plug and the outer shell—the plug can turn. This rotation then activates the bolt or latch mechanism, allowing the door to open. If an incorrect key is inserted, the pins will not align. The plug remains completely immobilized, keeping the door securely locked.
Modern lock cylinders often feature solid brass construction for durability and resistance to wear. Many adhere to strict manufacturing standards, such as the EN1303 standard, which ensures the hardware has been rigorously tested for temperature resistance, key security, and attack resistance.
D&D Lock Cylinder-BS EN1303 100,000 cycles test, EN1634 Fire Rated 183mins, EN1670 Corrosion Resistance 96 hours.
Not every door in your house requires the same level of security. Choosing the correct hardware for specific locations ensures a balance between safety, convenience, and emergency egress.
Your front door is your primary defense against unwanted entry. A lock cylinder for Main Entry Door applications must prioritize high security and physical durability. For these doors, homeowners typically choose robust cylinders with anti-pick, anti-drill, and anti-bump features.
High-security double cylinders are a popular choice for main entryways, particularly those with glass panels nearby. A double cylinder requires a physical key to unlock the door from both the outside and the inside. This design provides exceptional security against glass-break entries. If an intruder smashes the glass, they cannot simply reach inside and turn a knob to unlock the door.
The requirements change significantly when moving inside the house. An Interior Room Door lock cylinder is generally designed for privacy rather than heavy-duty security. Bathrooms, bedrooms, and home offices benefit from simple locking mechanisms that are easy to operate.
For these applications, single cylinders are the standard choice. A single cylinder allows you to use a key on the outside, while offering a simple thumb-turn mechanism on the inside. This provides excellent daily convenience. It also ensures that anyone inside the room can easily exit during an emergency without frantically searching for a key.

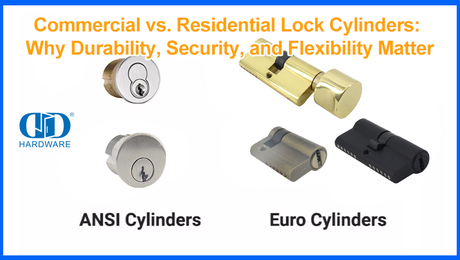

When exploring residential hardware, the Euro profile cylinder stands out as the most widely used format globally. Recognizable by its oversized keyhole shape that resembles an elongated teardrop, the Euro cylinder is highly adaptable. It can be fitted to timber, uPVC, and aluminum doors with minimal effort.
The Euro profile cylinder is incredibly common because it is easily replaceable. If you lose your keys or move into a new home, you do not need to replace the entire locking mechanism or door handle. By simply removing a single securing screw, you can slide the old cylinder out and insert a new one.
These cylinders come in various sizes and security grades. Products meeting the EN1303 standard, for instance, often feature six standard pins or even ten-pin high-security configurations. They also utilize offset cams that inhibit attempts to forcefully knock the cylinder through the door frame, providing a reliable baseline of security for modern residential buildings.

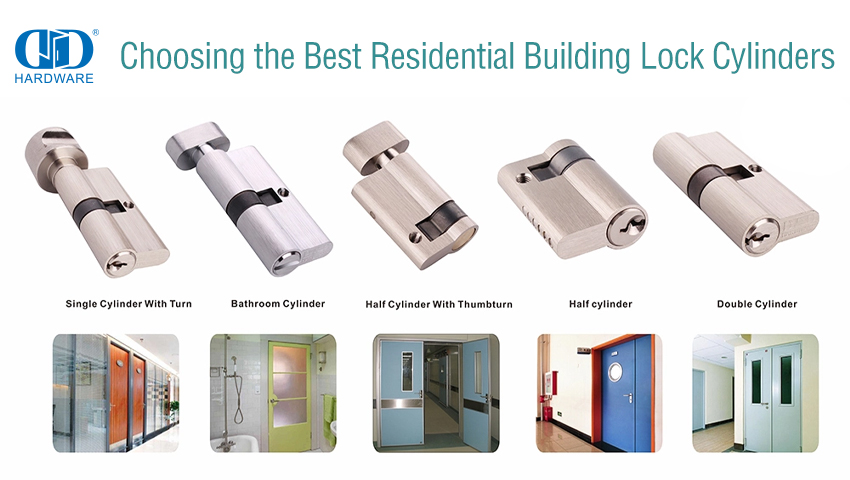

Deciding between single and double cylinders requires evaluating your specific living situation.
Single cylinders offer unmatched convenience and safety for emergency exits. Because they feature a thumb-turn on the inside, escaping a house fire or other emergency is immediate and straightforward. However, their vulnerability lies in proximity to glass.
Double cylinders maximize security by eliminating the interior thumb-turn. While they prevent an intruder from reaching through a broken window to open the door, they introduce a distinct safety risk during emergencies. If a fire breaks out, a locked double cylinder can trap occupants inside if the key is not readily accessible. Many fire safety experts recommend keeping a key permanently near the door—but out of arm's reach from the window—if you choose to install a double cylinder.
To find the correct size, you must measure your existing cylinder. Remove it from the door and measure from the center of the securing screw hole to the outside edge of the cylinder. Then, measure from the center hole to the inside edge. These two measurements (e.g., 35mm / 35mm) give you the exact size required for a replacement.
Yes, many high-quality residential building lock cylinders can be rekeyed by a professional locksmith. The locksmith will remove the internal pins and replace them with a new configuration that matches a brand-new key, rendering the old keys useless.
Solid brass is widely considered the best material for lock cylinders. It is highly resistant to corrosion, incredibly durable, and withstands the daily friction of key insertion much better than cheaper metal alloys.
Choosing the right hardware is a fundamental part of maintaining a safe and comfortable home. By understanding how residential building lock cylinders operate, you can confidently select the right mechanisms for your property. Evaluate your main entryways to determine if a high-security double cylinder is necessary, and utilize convenient single cylinders for your interior rooms.
Take a moment to inspect your current door locks today. Check for signs of excessive wear, sticking keys, or loose faceplates. If your locks are outdated or showing their age, consider upgrading to standardized, high-quality brass cylinders to ensure your home remains fully protected. Consult a local security expert or locksmith to discuss the best hardware options for your specific door types and security needs.
